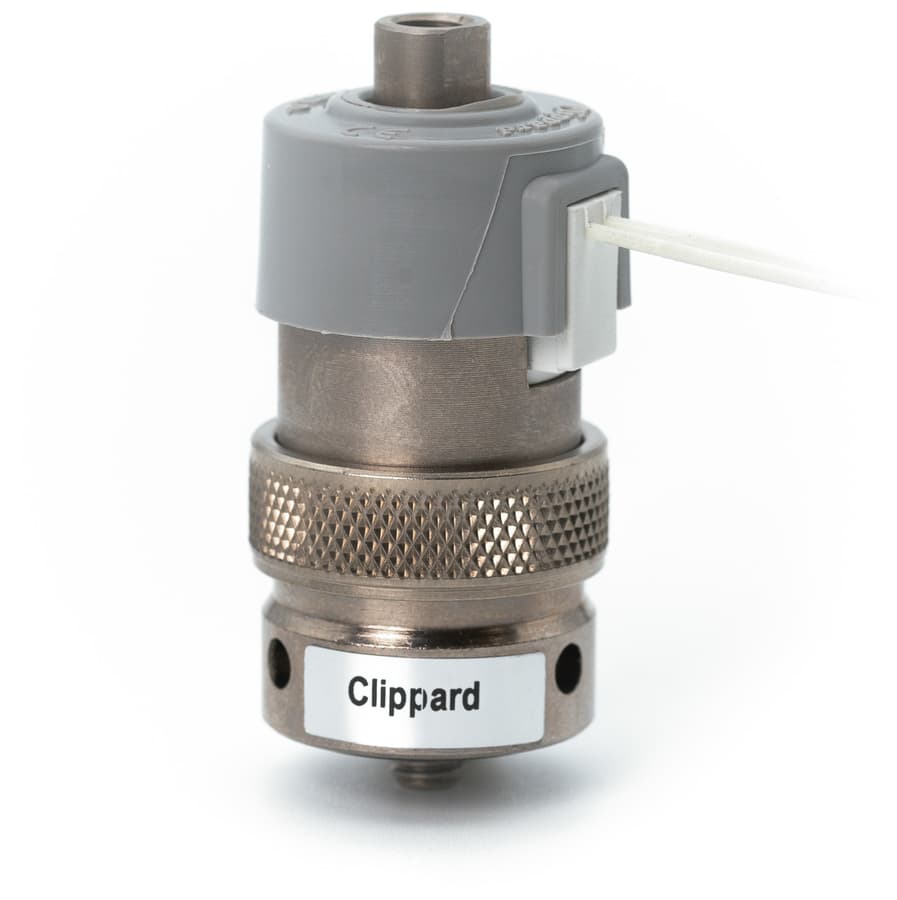

CR-EVO-3-12-H Clippard Electronic Components
Part#:CR-EVO-3-12-H
Manufacturer:Clippard
Category:Electronic Components
Product Lifecycle:Active
Product description
3-Way Fully-Ported Valve, In-Line Mount, Wire Leads, 12 VDC, Normally-Closed, Normally-Open, Selector, or Diverter
Product Details
- Function 3-Way Fully-Ported
- Medium Clean, Dry Air (40 micron filter)
- Unit Imperial
- Length 1.810
- Voltage 12 VDC
- Operating Pressure 25 psig (12.5 l/min @ 25 psig)
- Weight 0.1700
- Mount In-Line
- Wattage 1.2 Watts
- Mounting Holes #6-32 Thread
- Response Time 5 to 10 milliseconds (nominal) @ 25 psig
- Material, Seals Nitrile
- Poppet Travel 0.007"
- Cycles Over 1 Billion
- Temperature Range 32 to 180°F (0 to 82°C)
- Wire Size 26 Gauge
- Connection Wire Leads Side (Radial), 18"
- Port Size #10-32 Female In-Line
- Material, Body Nickel Plated Brass Body & Core
- Type Corrosion-Resistant
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
