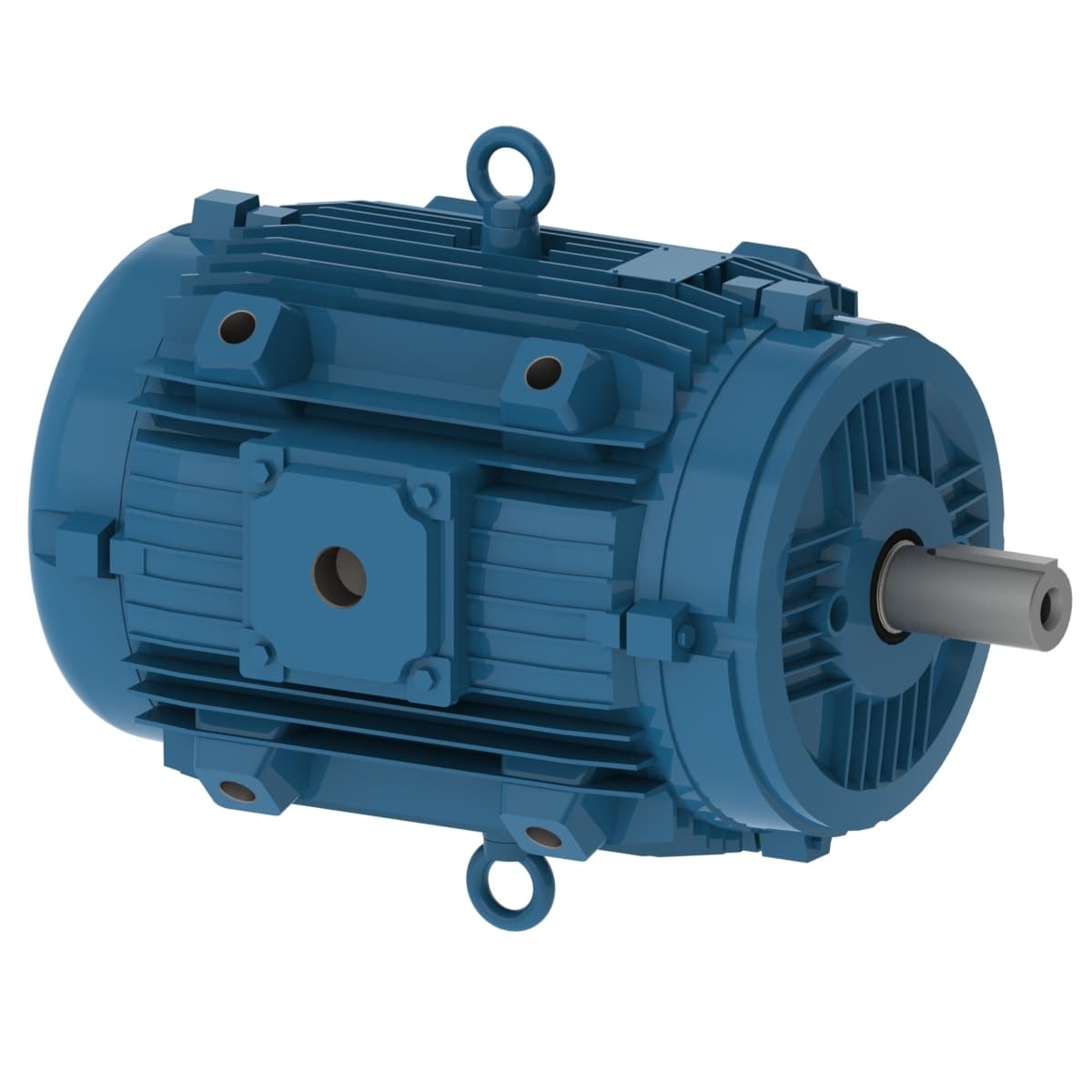

10837587 WEG AC Motors

Product Details

• Number of Poles
  2
• Breakdown torque
  400 %
• Duty Cycle
  Cont.(S1)
• Synchronous speed
  3600 rpm
• Frequency
  60 Hz
• LRC
  9.4x(Code L)
• No load current
  1.94-2.25/1.12 A
• Degree of Protection
  IP55
• Voltage
  208-230/460 V
• Mounting
  F-1
• Insulation Class
  F
• Material (FERT)
  50006910
• Frame
  145T
• L. R. Amperes
  55.1-49.8/24.9 A
• Locked rotor time
  37s (cold) 21s (hot)
• Moment of inertia (J)
  0.0631 sq.ft.lb
• Service factor
  1.25
• Noise level²
  68.0 dB(A)
• Ambient temperature
  40°C to +40°C
• Approx. weight³
  47.5 lb
Flange
Without
Output
2 HP (1.5 kW)
Rated speed
3490 rpm
Rated torque
3.01 ft.lb
Locked rotor torque
350 %
Altitude
1000 m.a.s.l.
Rotation¹
Both (CW and CCW)
Enclosure
IC418 - TEAO
Rated voltage
208-230/460 V
Slip
3.06 %
Rated current
5.86-5.30/2.65 A
Design
B
Temperature rise
80 K
Starting Method
Direct On Line
Standard
NEMA MG-1
Number of poles
2
Output rating
2 HP
Terminal box¹
Left position
