10836883 WEG AC Motors

10836883 on Applied Automation
WEG

Part#:10836883

Manufacturer:WEG

Category:AC Motors

Product Lifecycle:Discontinued

Product description

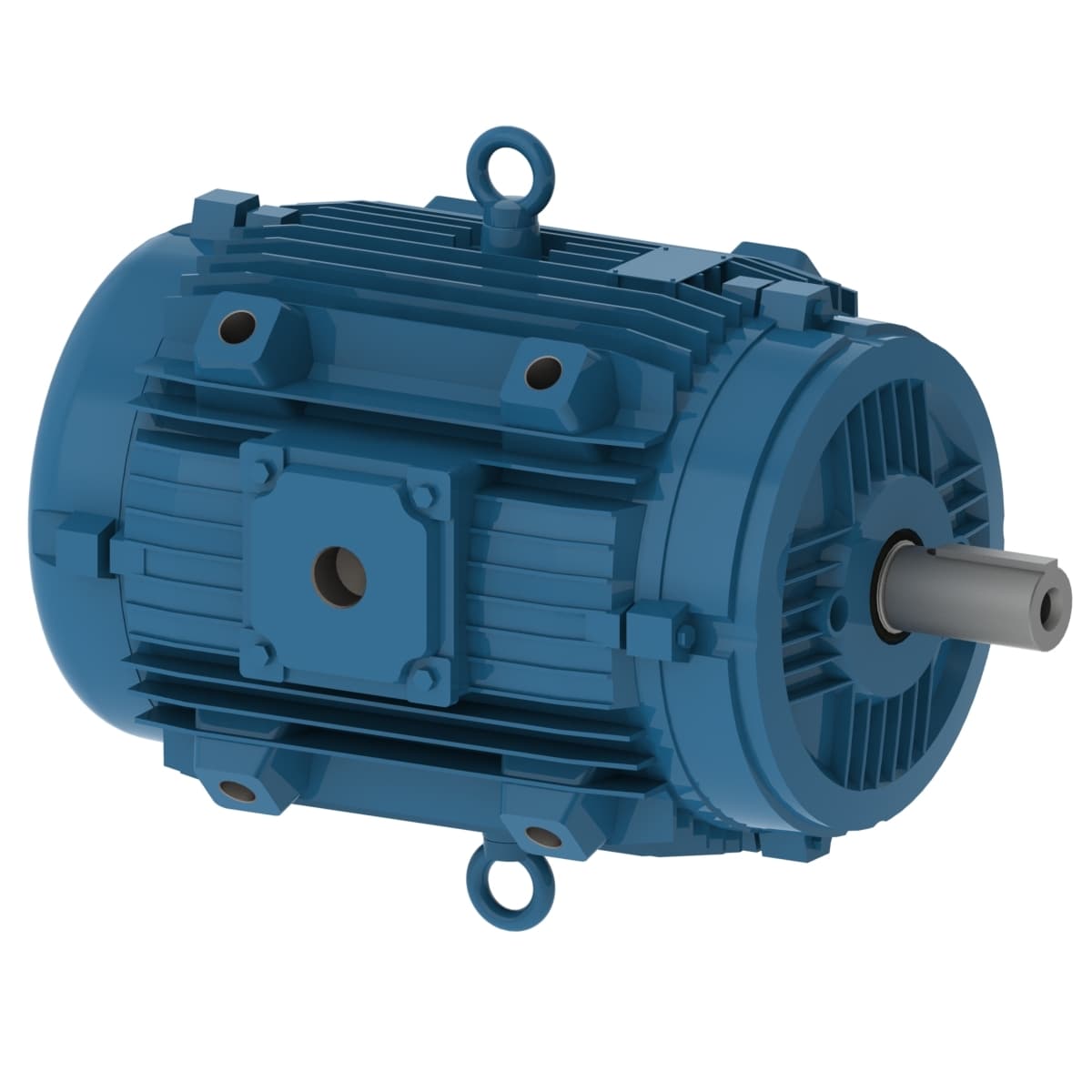

W21 NEMA Premium Efficiency 40 HP 4P 326Y 3Ph 208-230/460 V 60 Hz IC418 - TEAO - Footless

Product Details

  • Material (FERT)
    50006910
  • Temperature rise
    105 K
  • Standard
    NEMA MG-1
  • Rated speed
    1775 rpm
  • Locked rotor torque
    229 %
  • Enclosure
    IC418 - TEAO
  • Output rating
    40 HP
  • Number of Poles
    4
  • Locked rotor time
    59s (cold) 33s (hot)
  • Starting Method
    Direct On Line
  • Synchronous speed
    1800 rpm
  • Output
    40 HP (30 kW)
  • LRC
    6.7x(Code H)
  • Design
    B
  • Degree of Protection
    IP55
  • Rated current
    107-96.5/48.2 A
  • Moment of inertia (J)
    9.16 sq.ft.lb
  • Ambient temperature
    40°C to +40°C
  • Number of poles
    4
  • Rated voltage
    208-230/460 V
  • No load current
    34.5-40.0/20.0 A
  • Duty Cycle
    Cont.(S1)
  • Noise level²
    71.0 dB(A)
  • Frame
    326Y
  • Breakdown torque
    229 %
  • Rotation¹
    Both (CW and CCW)
  • Terminal box¹
    Left position
  • Frequency
    60 Hz
  • Insulation Class
    F
  • Mounting
    F-1
  • Flange
    Without
  • Slip
    1.39 %
  • Rated torque
    118 ft.lb
  • Altitude
    1000 m.a.s.l.
  • Approx. weight³
    576 lb
  • L. R. Amperes
    715-647/323 A
  • Service factor
    1.25
  • Voltage
    208-230/460 V

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
