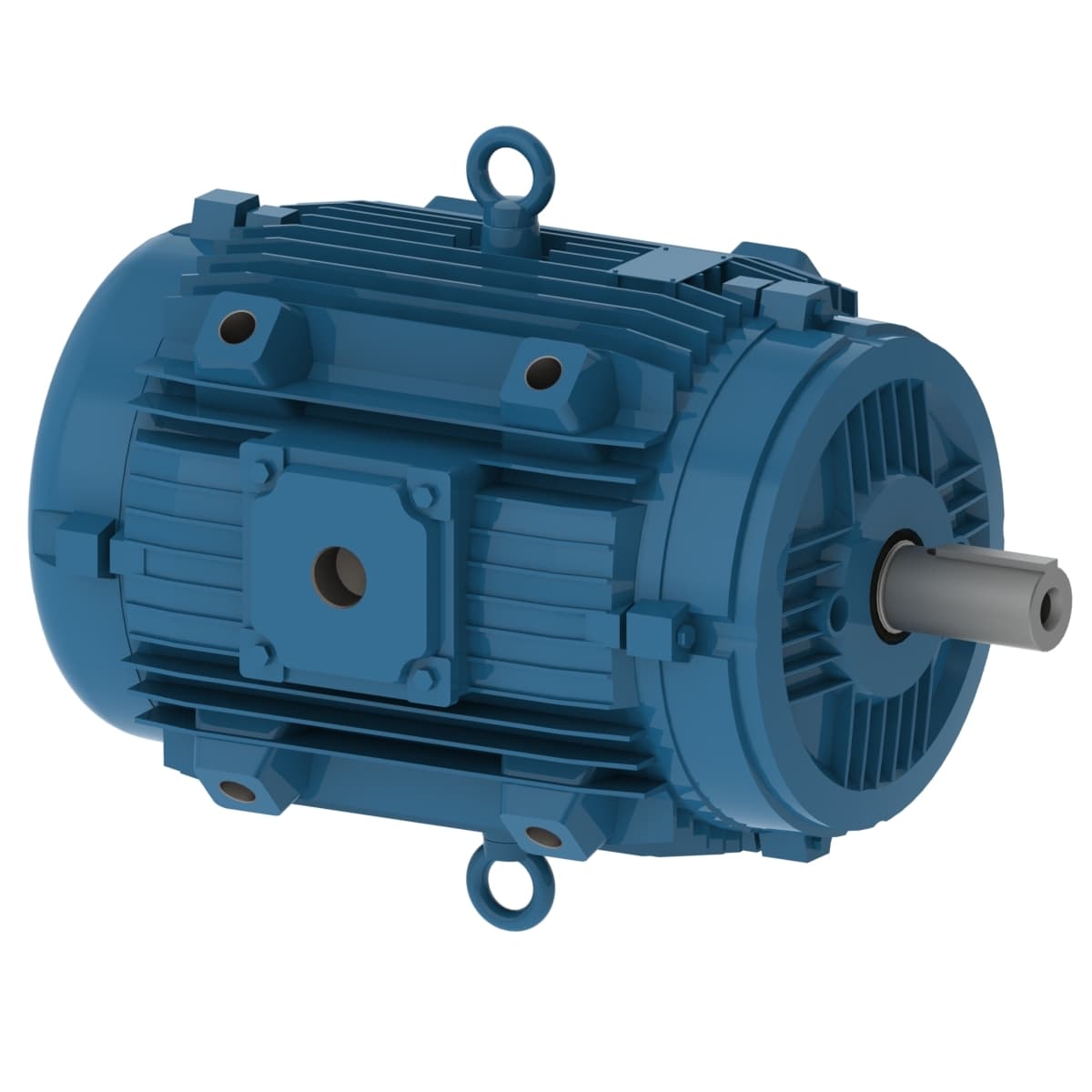

10836885 WEG AC Motors

Product Details

• Rated speed
  1780 rpm
• Locked rotor torque
  260 %
• Ambient temperature
  40°C to +40°C
• Number of poles
  4
• Slip
  1.11 %
• No load current
  47.4-55.0/27.5 A
• Temperature rise
  105 K
• Approx. weight³
  579 lb
• Number of Poles
  4
• Insulation Class
  F
• Mounting
  F-1
• Flange
  Without
• Rated current
  134-121/60.6 A
• LRC
  7.3x(Code H)
• Noise level²
  71.0 dB(A)
• Rated voltage
  208-230/460 V
• Rated torque
  148 ft.lb
• Duty Cycle
  Cont.(S1)
• Standard
  NEMA MG-1
• Output
  50 HP (37 kW)
Moment of inertia (J)
9.16 sq.ft.lb
Starting Method
Direct On Line
Voltage
208-230/460 V
Frame
326Y
Breakdown torque
280 %
Degree of Protection
IP55
Synchronous speed
1800 rpm
Material (FERT)
50006910
Design
B
Enclosure
IC418 - TEAO
L. R. Amperes
979-885/443 A
Service factor
1.25
Altitude
1000 m.a.s.l.
Output rating
50 HP
Frequency
60 Hz
Locked rotor time
36s (cold) 20s (hot)
Rotation¹
Both (CW and CCW)
Terminal box¹
Left position
