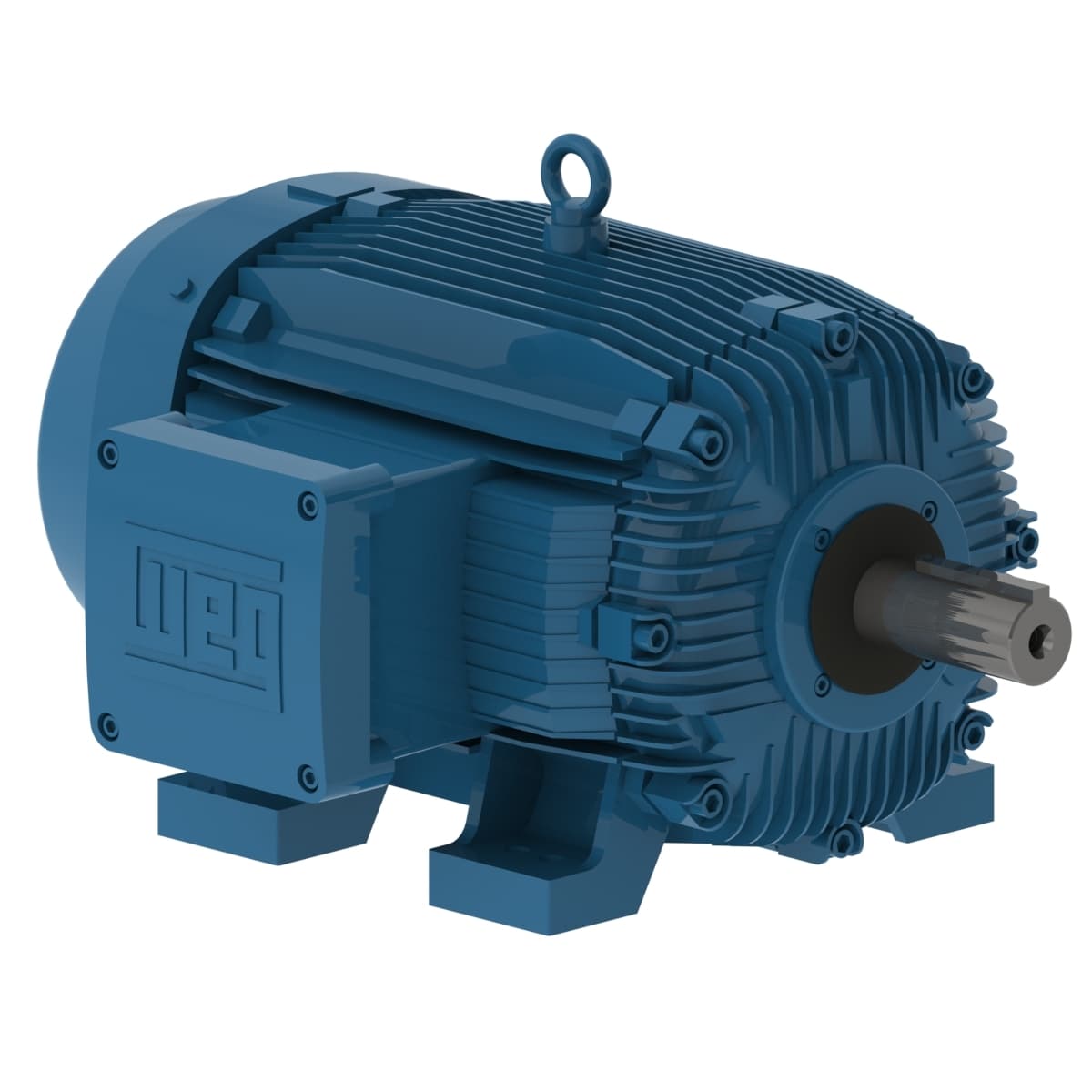

10036XT3G405TS WEG AC Motors
Product Details
- Number of Poles 2 Pole
- Voltage 460 V
- Output Rating 100 HP
- Rated Speed 3550 rpm
- Flange Type Without
- Slip 1.39 %
- Moment of inertia (J) 13.2 sq.ft.lb
- Duty Cycle Cont.(S1)
- Number of poles 2
- Terminal box¹ Left position
- Output 100 HP (75 kW)
- No load current 25.0 A
- Altitude 1000 m.a.s.l.
- Flange Without
- Rated torque 148 ft.lb
- Starting Method Direct On Line
- Rated speed 3550 rpm
- Design B
- Rotation¹ Both (CW and CCW)
- Voltage 460 V
- Number of Poles 2
- LRC 6.5x(Code G)
- Enclosure IC411 - TEFC
- Frame 404/5TS
- Locked rotor torque 250 %
- Temperature rise 80 K
- Approx. weight³ 1200 lb
- Rated current 110 A
- Insulation Class F
- Breakdown torque 280 %
- Noise level² 85.0 dB(A)
- Rated voltage 460 V
- Locked rotor time 37s (cold) 21s (hot)
- Degree of Protection IP55
- Output rating 100 HP
- Frequency 60 Hz
- Ambient temperature -20°C to +40°C
- Synchronous speed 3600 rpm
- L. R. Amperes 715 A
- Service factor 1.15
- Mounting F-1
- Standard NEMA MG-1
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
