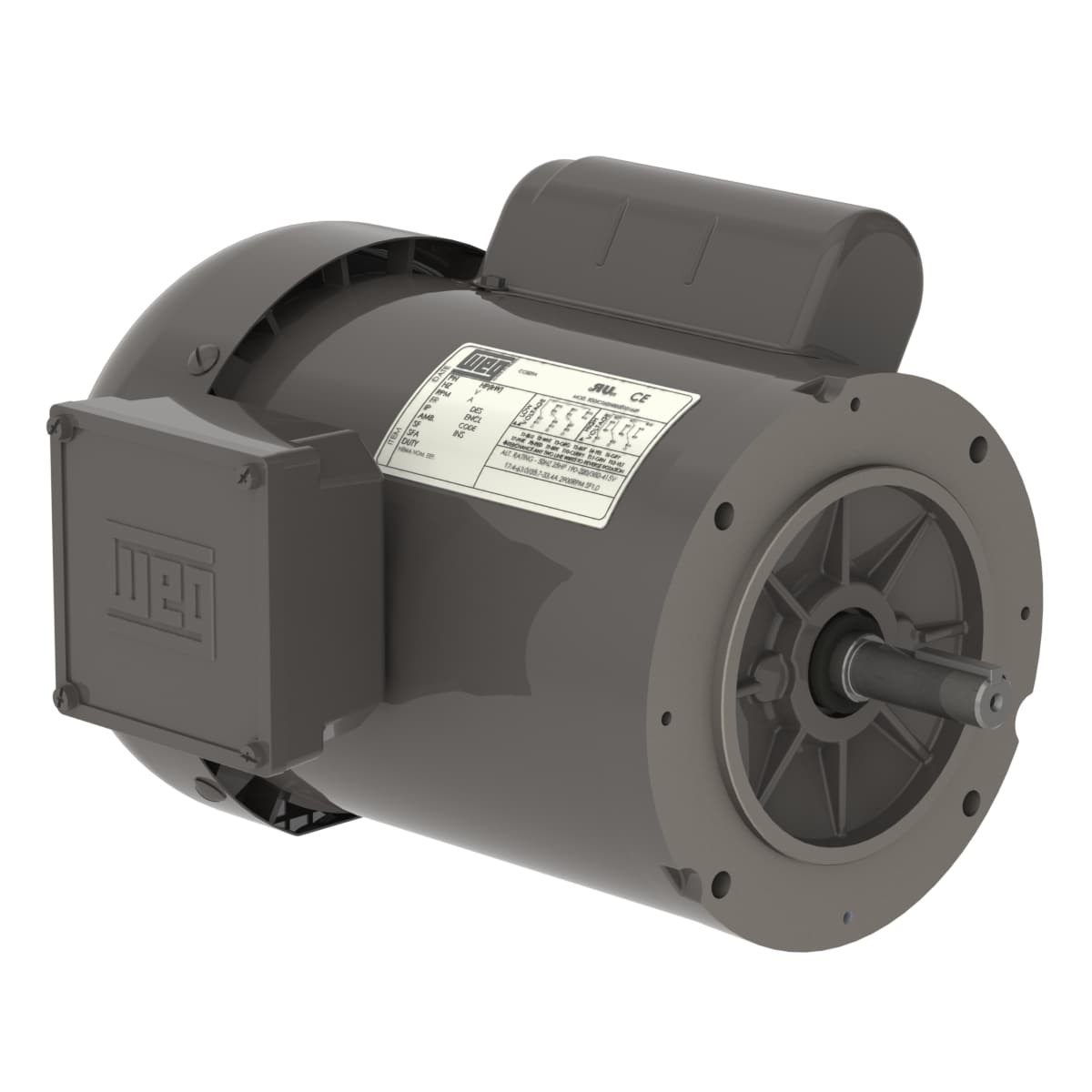

10034801 WEG AC Motors

Product Details

• Rated current
  5.60/2.70-2.80 A
• Locked rotor torque
  340 %
• Starting Method
  Direct On Line
• Ambient temperature
  -20°C to +40°C
• Voltage
  115/208-230 V
• Slip
  2.78 %
• Number of Poles
  4
• Service factor
  1.15 (1.00 @ 208V)
• Enclosure
  IC411 - TEFC
• Flange
  FC 149
• L. R. Amperes
  32.5/15.7-16.2 A
• Temperature rise
  80 K
• Rotation¹
  Both (CW and CCW)
• Output rating
  0.33 HP
• Rated speed
  1750 rpm
• No load current
  4.60/1.98-2.30 A
• Altitude
  1000 m.a.s.l.
• Terminal box¹
  Left position
• Output
  0.33 HP (0.25 kW)
• Moment of inertia (J)
  0.0624 sq.ft.lb
Noise level²
55.0 dB(A)
Breakdown torque
280 %
Rated voltage
115/208-230 V
Frequency
60 Hz
LRC
5.8x(Code N)
Degree of Protection
IP55
Approx. weight³
22.8 lb
Number of poles
4
Rated torque
0.990 ft.lb
Mounting
F-1
Frame
B56C
Locked rotor time
10s (cold) 6s (hot)
Insulation Class
B
Duty Cycle
Cont.(S1)
Standard
NEMA MG-1
Synchronous speed
1800 rpm
