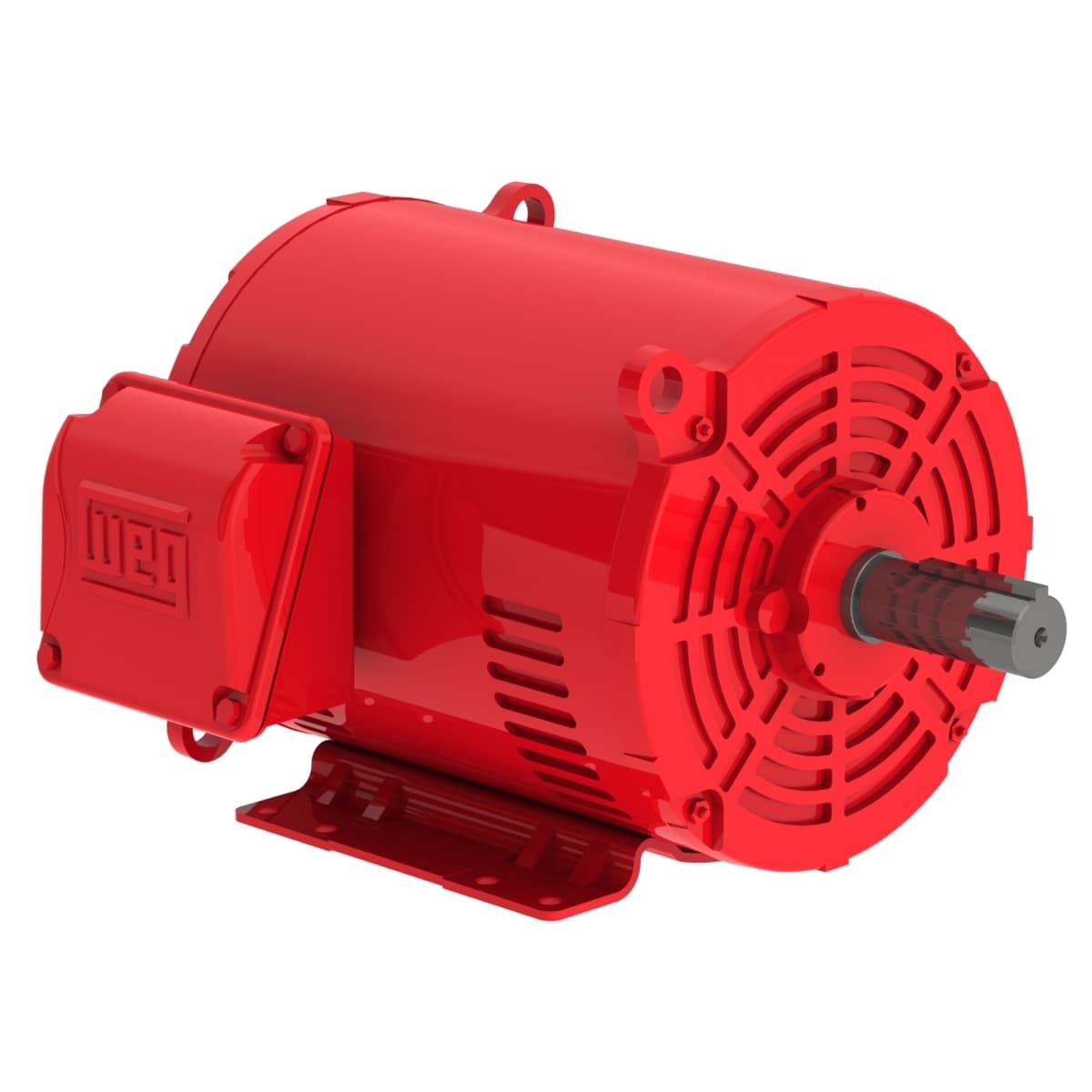

01536OP3HFP215T-S WEG AC Motors

Product Details

• Number of Poles
  2 Pole
• Voltage
  575 V
• Output Rating
  15 HP
• Rated Speed
  3525 rpm
• Flange Type
  Without
• LRC
  6.5x(Code G)
• Temperature rise
  80 K
• Approx. weight³
  116 lb
• Rated current
  14.0 A
• Design
  B
• Ambient temperature
  -20°C to +40°C
• Number of poles
  2
• Rated speed
  3525 rpm
• L. R. Amperes
  91.0 A
• Rotation¹
  Both (CW and CCW)
• Synchronous speed
  3600 rpm
• Slip
  2.08 %
• Locked rotor torque
  190 %
• Starting Method
  Direct On Line
• Terminal box¹
  Left position
Rated voltage
575 V
Locked rotor time
10s (cold) 6s (hot)
Standard
NEMA MG-1
Rated torque
22.3 ft.lb
Altitude
1000 m.a.s.l.
Noise level²
66.0 dB(A)
Output
15 HP (11 kW)
Duty Cycle
Cont.(S1)
Service factor
1.15
Frequency
60 Hz
Breakdown torque
260 %
Insulation Class
F
Flange
Without
Number of Poles
2
No load current
5.89 A
Mounting
F-1
Output rating
15 HP
Frame
213/5T
Moment of inertia (J)
0.4651 sq.ft.lb
Enclosure
IC01 - ODP
Voltage
575 V
