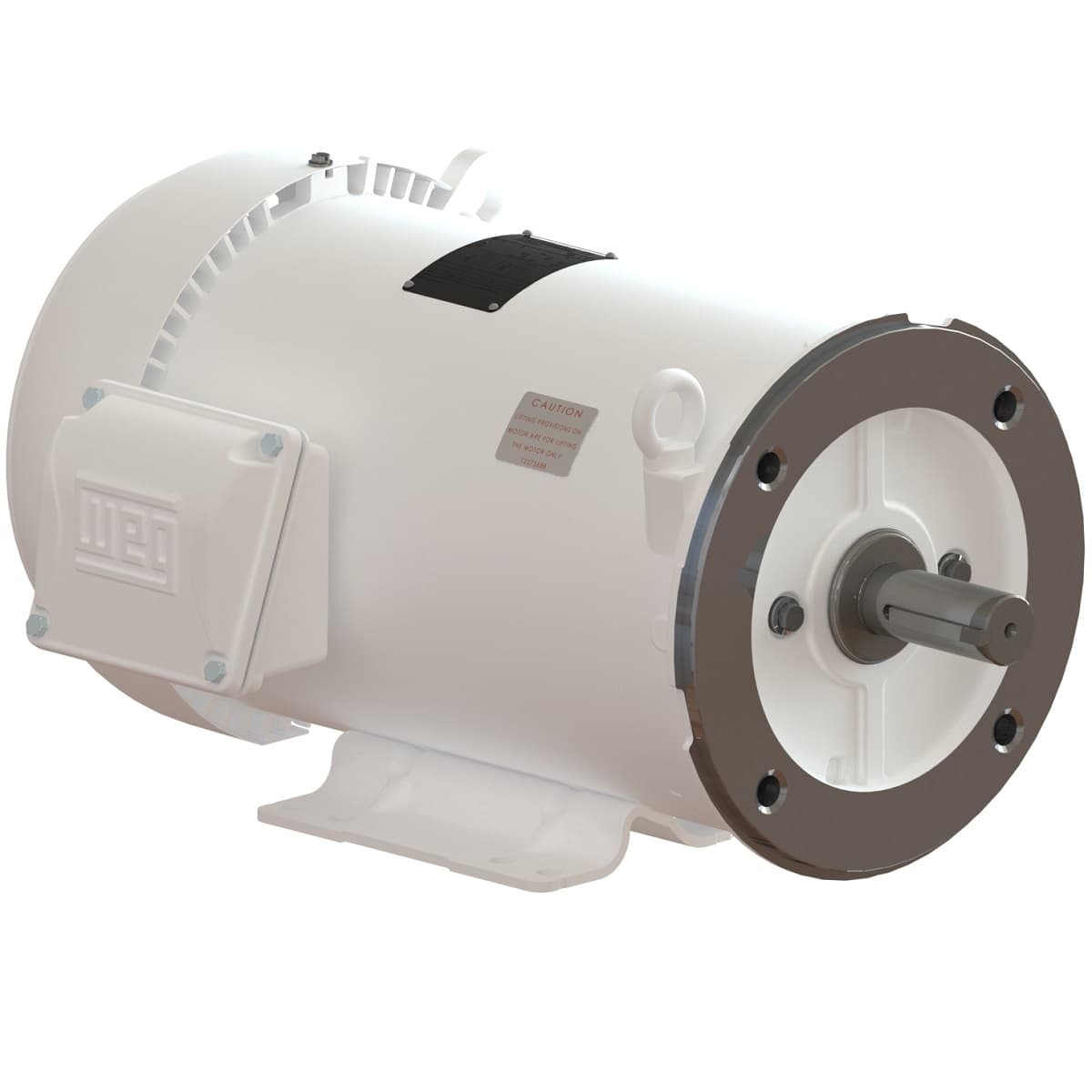

01518ET3EHW254TC-S WEG AC Motors

Product Details

• Number of Poles
  4 Pole
• Voltage
  230/460 V
• Output Rating
  15 HP
• Rated Speed
  1770 rpm
• Flange Type
  C
• Number of Poles
  4
• Rated current
  36.4/18.2 A
• Frame
  254/6TC
• No load current
  17.3/8.65 A
• Mounting
  F-1
• Approx. weight³
  220 lb
• LRC
  6.5x(Code G)
• Starting Method
  Direct On Line
• Number of poles
  4
• Frequency
  60 Hz
• Temperature rise
  80 K
• Noise level²
  68.0 dB(A)
• Rated speed
  1770 rpm
• Breakdown torque
  300 %
• Rated voltage
  230/460 V
Locked rotor torque
250 %
Locked rotor time
34s (cold) 19s (hot)
Service factor
1.15
Ambient temperature
-20°C to +40°C
Enclosure
IC411 - TEFC
Voltage
230/460//190-220/380-415 V
Output rating
15 HP
Terminal box¹
Left position
Moment of inertia (J)
2.15 sq.ft.lb
Degree of Protection
IP56
Standard
NEMA MG-1
Output
15 HP (11 kW)
Design
B
Rotation¹
Both (CW and CCW)
Slip
1.67 %
Insulation Class
F
Synchronous speed
1800 rpm
L. R. Amperes
237/118 A
Rated torque
44.5 ft.lb
Duty Cycle
Cont.(S1)
Altitude
1000 m.a.s.l.
Flange
C
