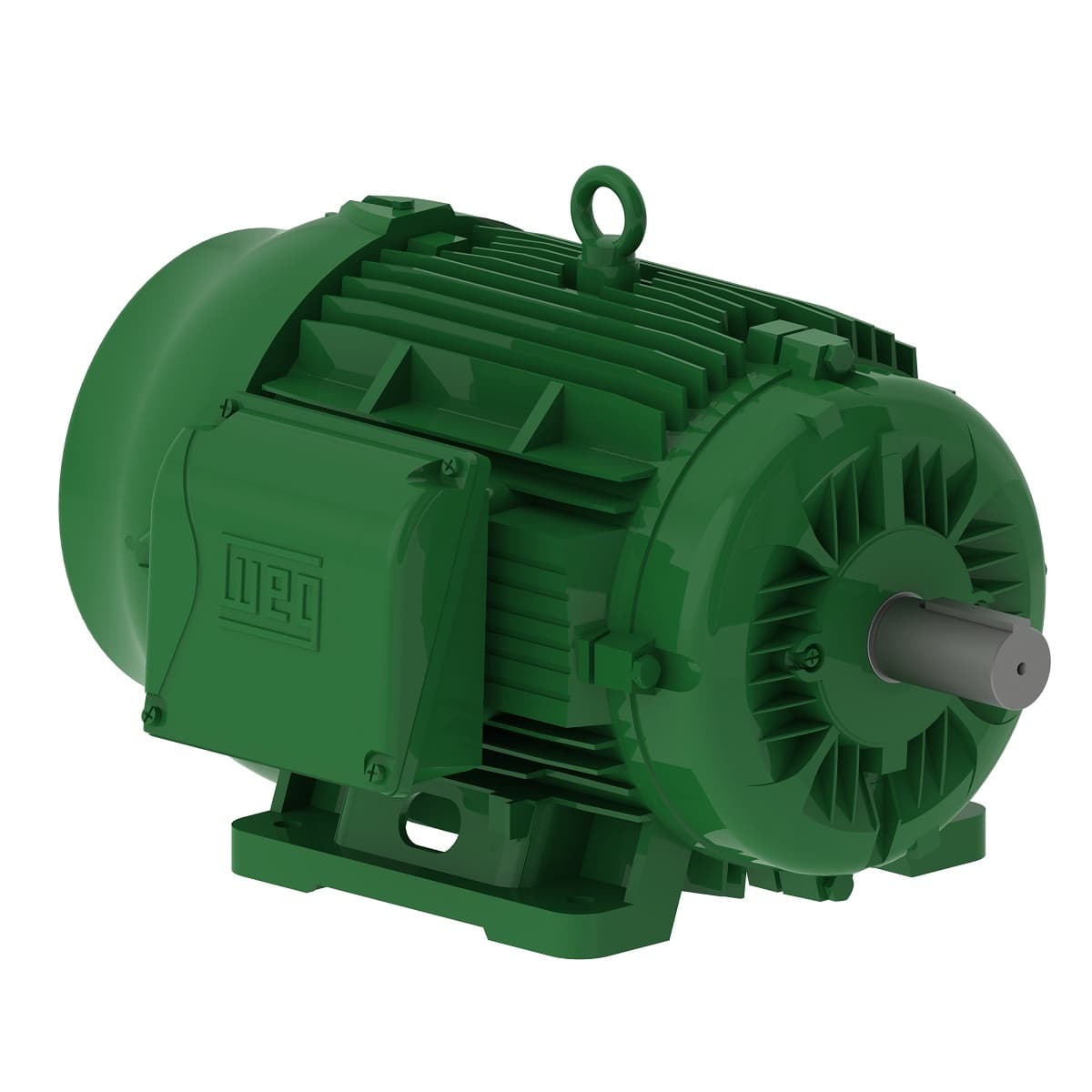

01512ET3H284TS-W22 WEG AC Motors
Product Details
- Number of Poles 6 Pole
- Voltage 575 V
- Output Rating 15 HP
- Rated Speed 1175 rpm
- Flange Type Without
- Rated speed 1175 rpm
- Output 15 HP (11 kW)
- Locked rotor time 36s (cold) 20s (hot)
- Design B
- Rated voltage 575 V
- Breakdown torque 260 %
- Number of poles 6
- Frequency 60 Hz
- No load current 5.60 A
- Ambient temperature -20°C to +40°C
- Number of Poles 6
- Enclosure IC411 - TEFC
- Terminal box¹ Left position
- Standard NEMA MG-1
- Frame 284/6TS
- Service factor 1.25
- Duty Cycle Cont.(S1)
- Starting Method Direct On Line
- Synchronous speed 1200 rpm
- Moment of inertia (J) 7.85 sq.ft.lb
- Temperature rise 80 K
- Rotation¹ Both (CW and CCW)
- Locked rotor torque 229 %
- Approx. weight³ 379 lb
- L. R. Amperes 91.8 A
- Slip 2.08 %
- Rated torque 67.0 ft.lb
- Insulation Class F
- Noise level² 59.0 dB(A)
- Output rating 15 HP
- Mounting F-1
- Degree of Protection IP55
- Rated current 14.3 A
- LRC 6.4x(Code G)
- Altitude 1000 m.a.s.l.
- Voltage 575 V
- Flange Without
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
