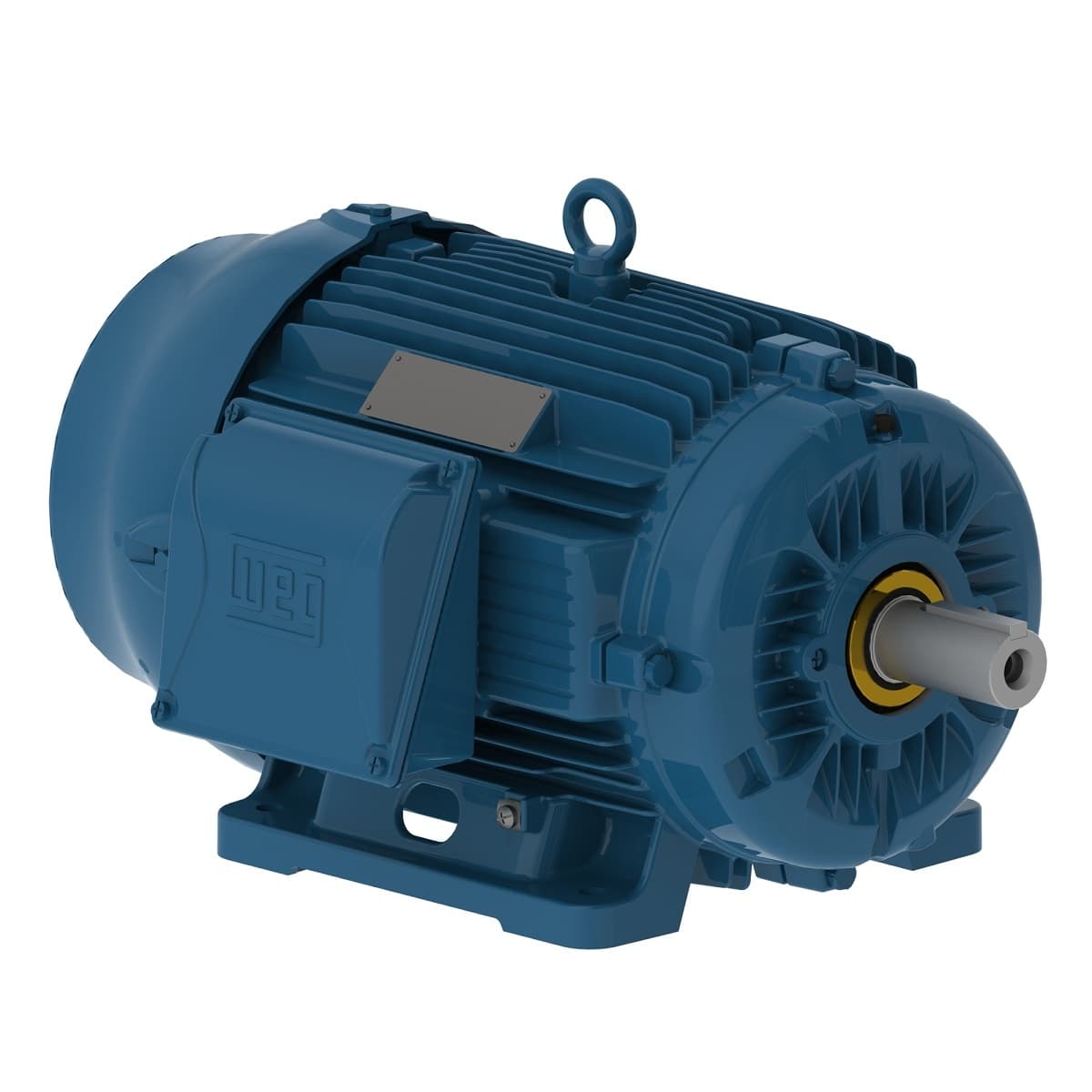

00712ST3HIE254T-W22 WEG AC Motors

Product Details

• Number of Poles
  6 Pole
• Voltage
  575 V
• Output Rating
  7.5 HP
• Rated Speed
  1175 rpm
• Flange Type
  Without
• Rated current
  7.58 A
• LRC
  6.7x(Code H)
• Starting Method
  Direct On Line
• Number of poles
  6
• Number of Poles
  6
• Design
  B
• Mounting
  F-1
• Flange
  Without
• Rated torque
  33.5 ft.lb
• Service factor
  1.25
• Degree of Protection
  IP56
• Frame
  254/6T
• No load current
  3.60 A
• Duty Cycle
  Cont.(S1)
• Voltage
  575 V
Frequency
60 Hz
Enclosure
IC411 - TEFC
Rated voltage
575 V
Locked rotor torque
240 %
Ambient temperature
-20°C to +40°C
Standard
NEMA MG-1
Rated speed
1175 rpm
Output
7.5 HP (5.5 kW)
Moment of inertia (J)
3.92 sq.ft.lb
Insulation Class
F
Altitude
1000 m.a.s.l.
Approx. weight³
304 lb
Synchronous speed
1200 rpm
Terminal box¹
Left position
L. R. Amperes
50.8 A
Breakdown torque
290 %
Rotation¹
Both (CW and CCW)
Output rating
7.5 HP
Slip
2.08 %
Locked rotor time
54s (cold) 30s (hot)
Temperature rise
80 K
Noise level²
59.0 dB(A)
