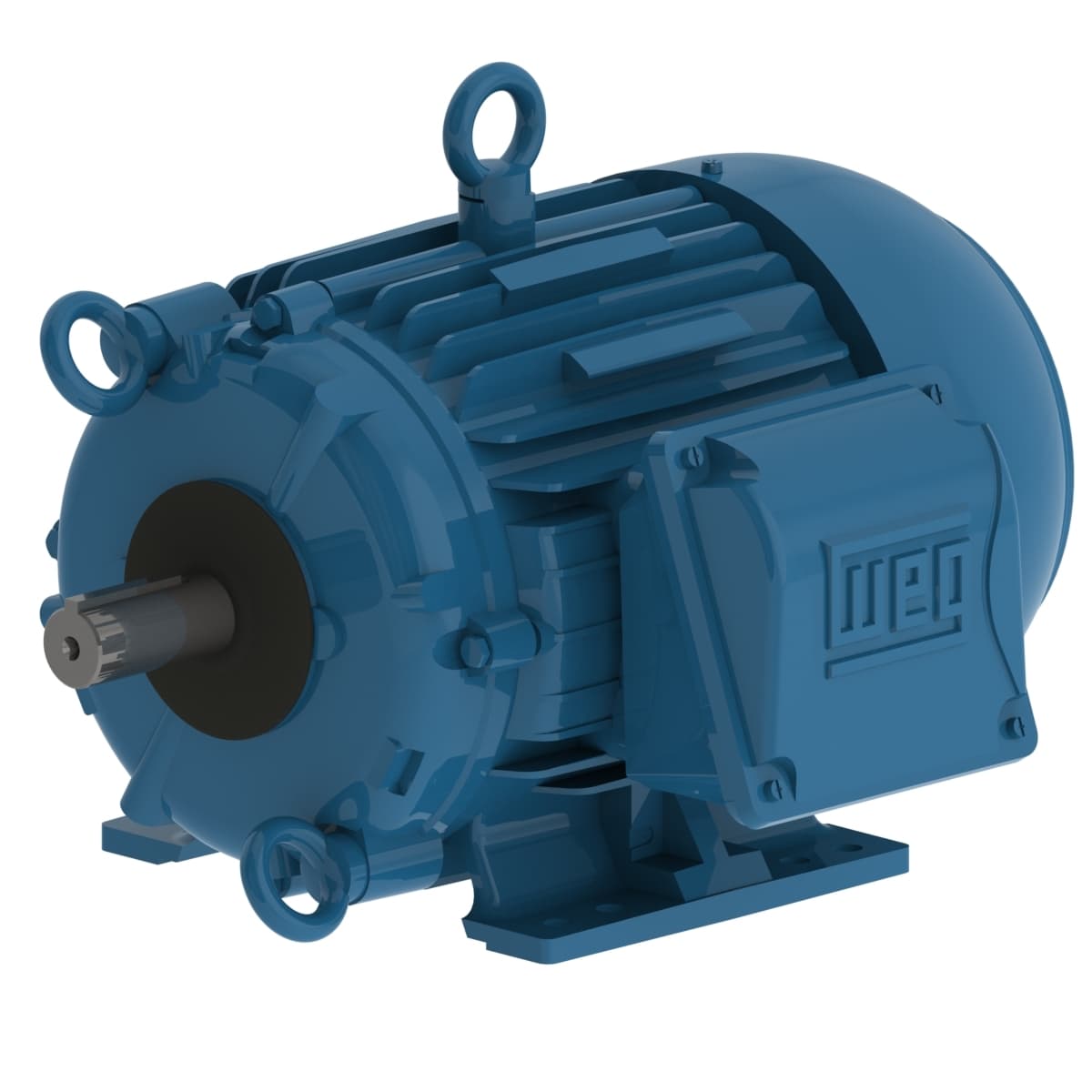

00589EP3PCT184V-W22 WEG AC Motors

Product Details

• Number of Poles
  45508 Pole
• Voltage
  200 V
• Output Rating
  1.25/5.0 HP
• Rated Speed
  1750 rpm
• Flange Type
  Without
• Rated current
  15.3 A
• Rated voltage
  200 V
• Breakdown torque
  300 %
• Starting Method
  Direct On Line
• Frequency
  60 Hz
• Locked rotor time
  12s (cold) 7s (hot)
• Mounting
  F-2
• Slip
  2.78 %
• Number of Poles
  8/4
• Locked rotor torque
  200 %
• Output
  5 HP (3.7 kW)
• Rated speed
  1750 rpm
• Moment of inertia (J)
  0.4461 sq.ft.lb
• Temperature rise
  80 K
• L. R. Amperes
  114 A
LRC
7.4x(Code J)
Altitude
1000 m.a.s.l.
Insulation Class
F
Frame
182/4T
No load current
8.51 A
Service factor
1.15
Noise level²
58.0 dB(A)
Output rating
1.25/5.0 HP
Ambient temperature
-20°C to +40°C
Rotation¹
Both (CW and CCW)
Approx. weight³
2.2 lb
Voltage
200 V
Duty Cycle
Cont.(S1)
Degree of Protection
IP55
Terminal box¹
Right position
Enclosure
IC411 - TEFC
Standard
NEMA MG-1
Number of poles
8/4
Synchronous speed
900/1800 rpm
Rated torque
15.0 ft.lb
Flange
Without
