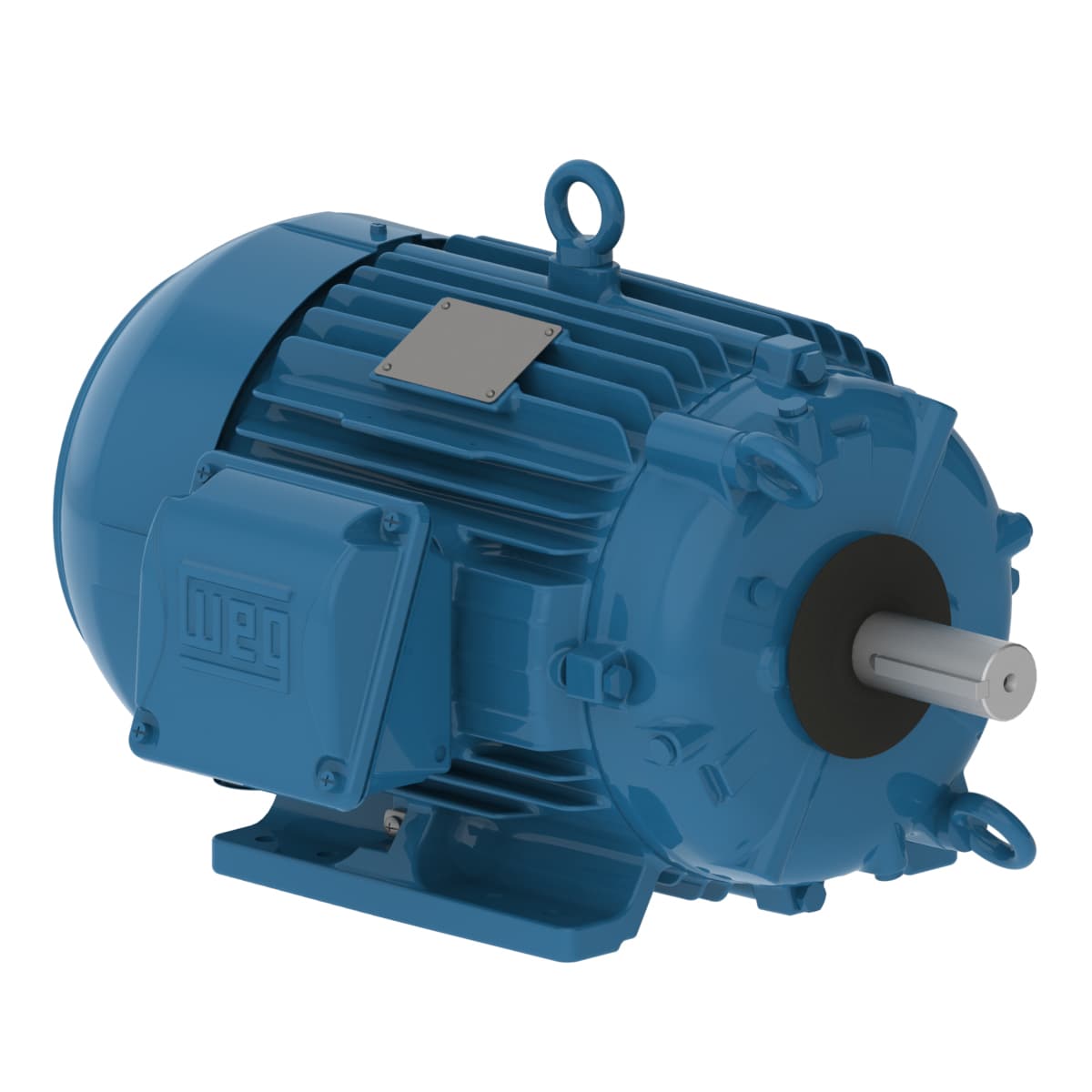

00389EP3PCT182VF1-W2 WEG AC Motors

Product Details

• Number of Poles
  45508 Pole
• Voltage
  200 V
• Output Rating
  0.75/3.0 HP
• Rated Speed
  1755 rpm
• Flange Type
  Without
• LRC
  7.5x(Code J)
• Service factor
  1.15
• Noise level²
  58.0 dB(A)
• Output
  3 HP (2.2 kW)
• Locked rotor torque
  200 %
• Duty Cycle
  Cont.(S1)
• Number of poles
  8/4
• L. R. Amperes
  68.8 A
• Ambient temperature
  -20°C to +40°C
• Approx. weight³
  92.0 lb
• Slip
  2.50 %
• Rated torque
  8.98 ft.lb
• Starting Method
  Direct On Line
• Rotation¹
  Both (CW and CCW)
• Rated current
  9.18 A
Temperature rise
80 K
Flange
Without
Frame
182T
No load current
5.29 A
Degree of Protection
IP55
Voltage
200 V
Number of Poles
8/4
Breakdown torque
290 %
Enclosure
IC411 - TEFC
Output rating
0.75/3.0 HP
Rated speed
1755 rpm
Insulation Class
F
Altitude
1000 m.a.s.l.
Synchronous speed
900/1800 rpm
Frequency
60 Hz
Moment of inertia (J)
0.3821 sq.ft.lb
Mounting
F-1
Terminal box¹
Left position
Rated voltage
200 V
Locked rotor time
18s (cold) 10s (hot)
Standard
NEMA MG-1
