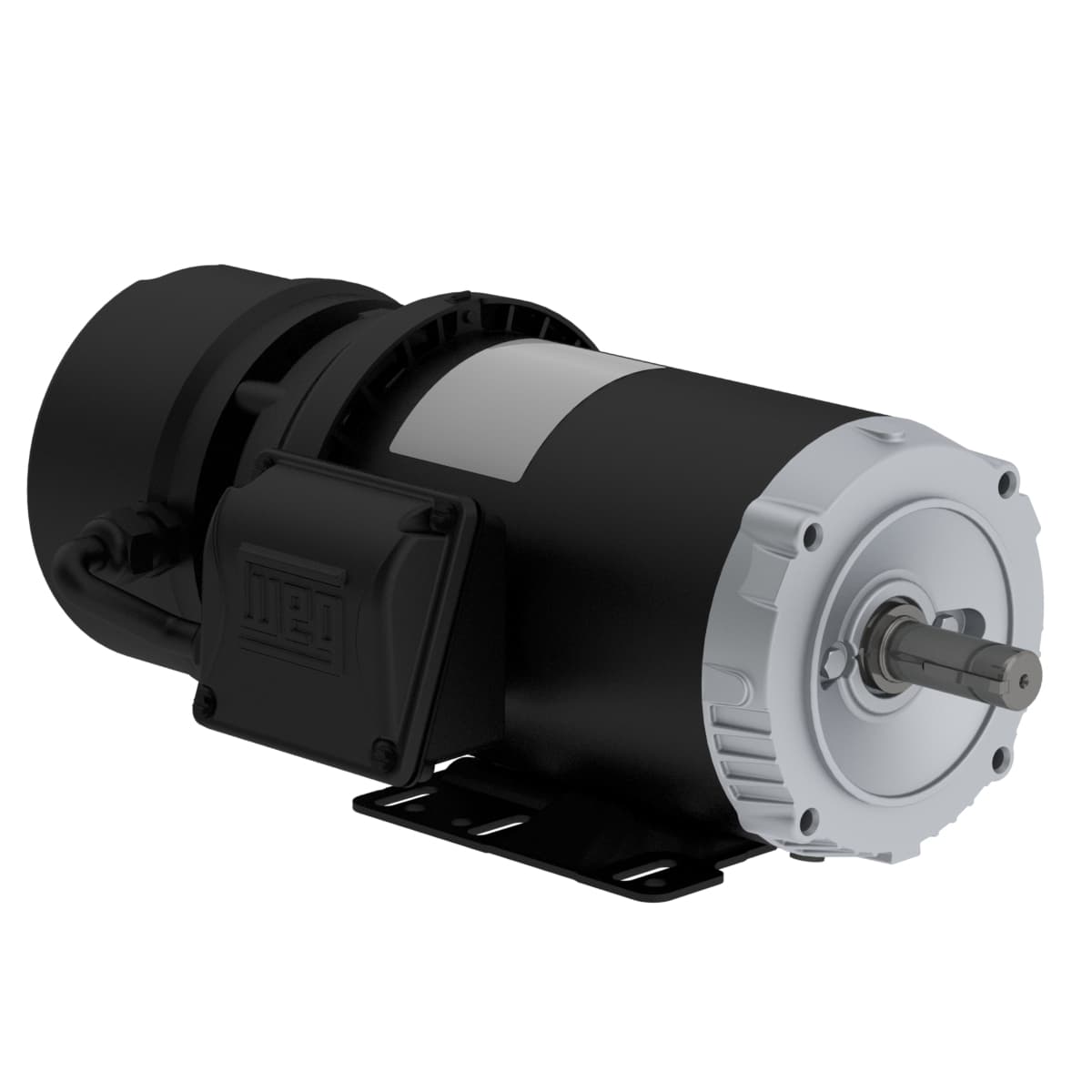

00218ET3HBM145TC-S WEG AC Motors
Product Details
- Number of Poles 4 Pole
- Voltage 575 V
- Output Rating 2 HP
- Rated Speed 1745 rpm
- Flange Type C
- Output 2 HP (1.5 kW)
- Locked rotor time 27s (cold) 15s (hot)
- Duty Cycle Cont.(S1)
- Approx. weight³ 55.2 lb
- LRC 8.2x(Code K)
- Altitude 1000 m.a.s.l.
- Ambient temperature -20°C to +40°C
- Flange C
- Rated speed 1745 rpm
- Frequency 60 Hz
- Insulation Class F
- Degree of Protection IP55
- Noise level² 52.0 dB(A)
- Terminal box¹ Left position
- Slip 3.06 %
- Locked rotor torque 270 %
- Starting Method Direct On Line
- Mounting F-1
- Number of poles 4
- Rated current 2.18 A
- Breakdown torque 300 %
- Enclosure IC411 - TEFC
- Number of Poles 4
- Service factor 1.15
- Voltage 575 V
- Output rating 2 HP
- Frame 143/5TC
- Rated torque 6.02 ft.lb
- Moment of inertia (J) 0.1296 sq.ft.lb
- Synchronous speed 1800 rpm
- L. R. Amperes 17.8 A
- No load current 1.12 A
- Rotation¹ Both (CW and CCW)
- Rated voltage 575 V
- Design B
- Temperature rise 80 K
- Standard NEMA MG-1
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
