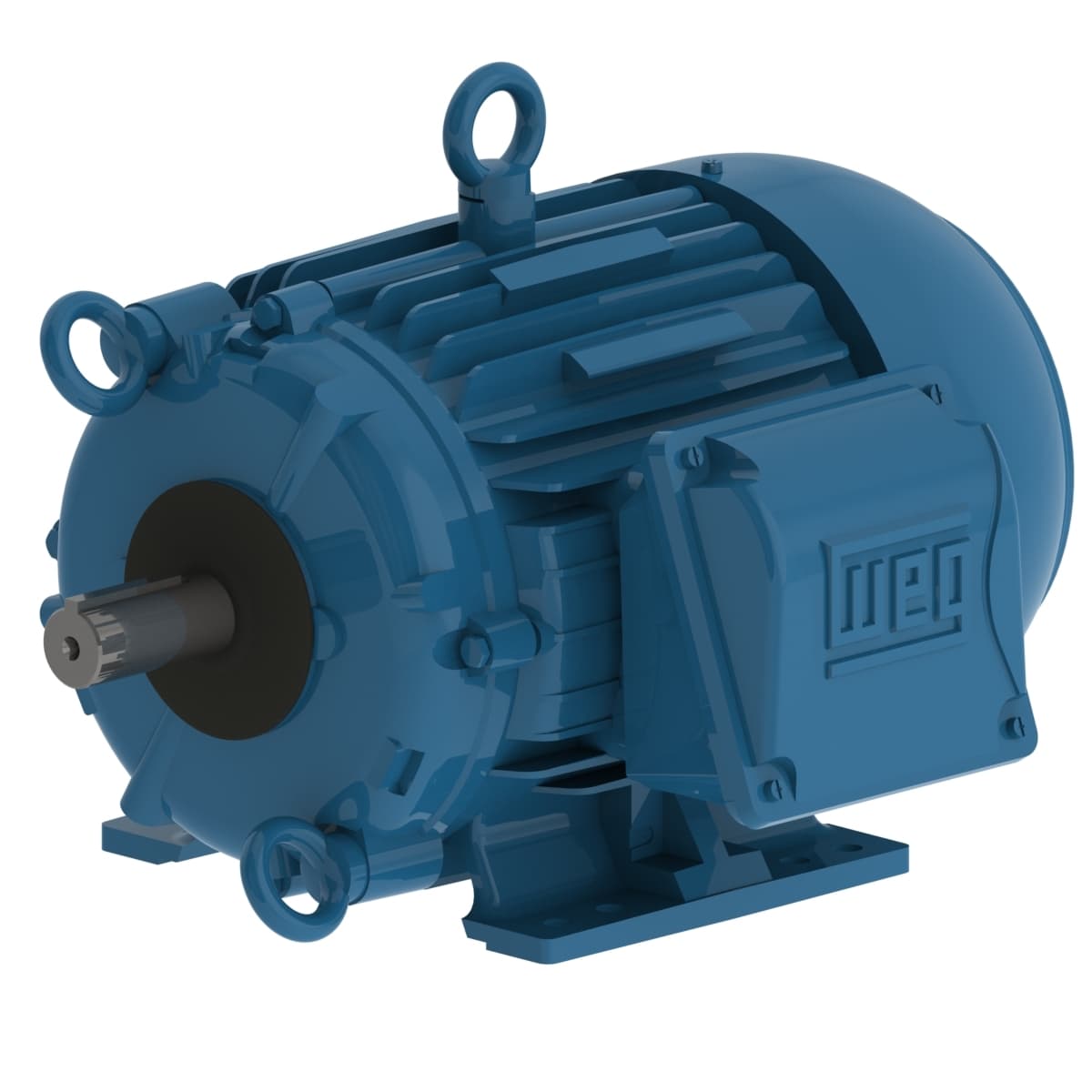

00212ET3ECT184T-W22 WEG AC Motors

Product Details

• Number of Poles
  6 Pole
• Voltage
  230/460 V
• Output Rating
  2 HP
• Rated Speed
  1170 rpm
• Flange Type
  Without
• Slip
  2.50 %
• Locked rotor time
  55s (cold) 31s (hot)
• Mounting
  F-2
• Number of poles
  6
• Number of Poles
  6
• Breakdown torque
  350 %
• Degree of Protection
  IP55
• Flange
  Without
• Service factor
  1.25
• Design
  B
• Voltage
  230/460//380 V
• Rated speed
  1170 rpm
• LRC
  7.5x(Code L)
• Duty Cycle
  Cont.(S1)
• Standard
  NEMA MG-1
Frame
182/4T
Temperature rise
80 K
Rotation¹
Both (CW and CCW)
Rated current
6.44/3.22 A
Moment of inertia (J)
0.6210 sq.ft.lb
Ambient temperature
-20°C to +40°C
Synchronous speed
1200 rpm
Rated voltage
230/460 V
No load current
3.80/1.90 A
Enclosure
IC411 - TEFC
Frequency
60 Hz
Insulation Class
F
Starting Method
Direct On Line
Output rating
2 HP
Output
2 HP (1.5 kW)
Rated torque
8.98 ft.lb
Altitude
1000 m.a.s.l.
Noise level²
52.0 dB(A)
L. R. Amperes
48.3/24.2 A
Locked rotor torque
300 %
Approx. weight³
103 lb
Terminal box¹
Right position
