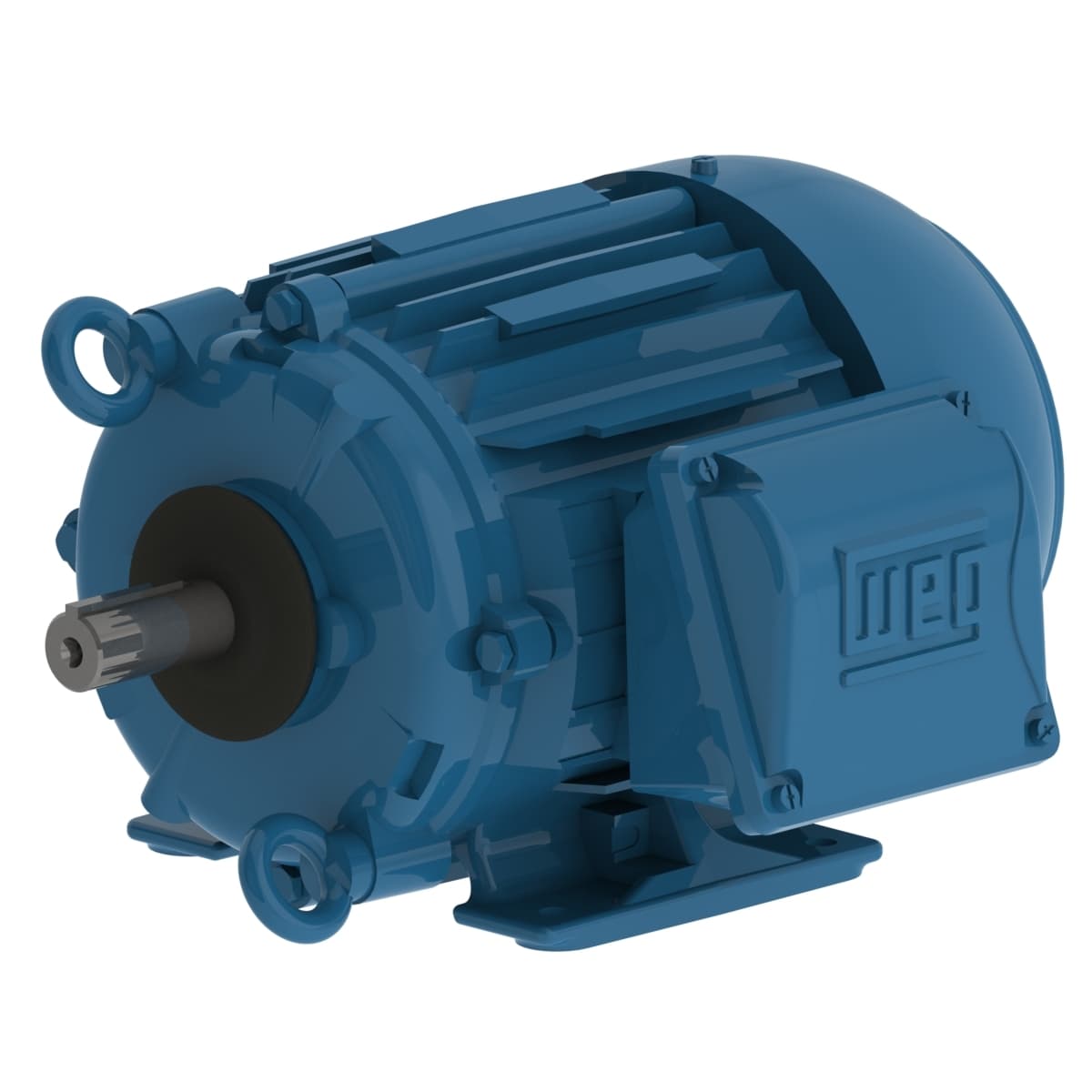

00218ET3ECT145T-W22 WEG AC Motors

Product Details

• Number of Poles
  4 Pole
• Voltage
  230/460 V
• Output Rating
  2 HP
• Rated Speed
  1750 rpm
• Flange Type
  Without
• Number of Poles
  4
• Locked rotor torque
  270 %
• Degree of Protection
  IP55
• Flange
  Without
• Rated speed
  1750 rpm
• Temperature rise
  80 K
• Enclosure
  IC411 - TEFC
• Output rating
  2 HP
• L. R. Amperes
  46.3/23.2 A
• Design
  B
• Ambient temperature
  -20°C to +40°C
• Voltage
  230/460//380 V
• Frequency
  60 Hz
• Insulation Class
  F
• Rotation¹
  Both (CW and CCW)
Frame
143/5T
Rated torque
6.00 ft.lb
Starting Method
Direct On Line
Slip
2.78 %
Breakdown torque
320 %
Mounting
F-2
Rated current
5.58/2.79 A
Locked rotor time
18s (cold) 10s (hot)
Approx. weight³
54.4 lb
LRC
8.3x(Code L)
Duty Cycle
Cont.(S1)
Standard
NEMA MG-1
Rated voltage
230/460 V
No load current
3.26/1.63 A
Service factor
1.25
Output
2 HP (1.5 kW)
Moment of inertia (J)
0.1561 sq.ft.lb
Altitude
1000 m.a.s.l.
Number of poles
4
Synchronous speed
1800 rpm
Noise level²
51.0 dB(A)
Terminal box¹
Right position
