ZSD6/O.LTG Schmersal Electronic Components
Part#:ZSD6/O.LTG
Alt. Part#:101199480
Manufacturer:Schmersal
Category:Electronic Components
Product Lifecycle:Active
Product description

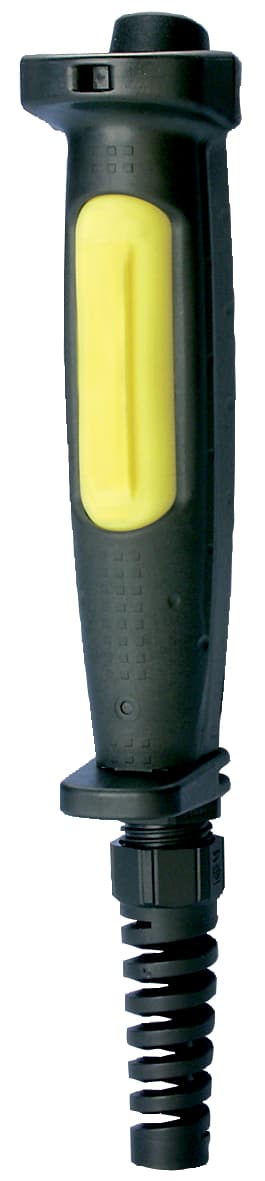

Enabling device; 3 levels OFF-ON-OFF; Thermoplastic enclosure; 1 Cable entry M 20 x 1.5; Good resistance to oil and petroleum spirit; Particularly fit for robot applications in accordance with the ANSI Robotics Standard; The redundant contact configuratio
Product Details
- Push button, additionally Yes
- Ambient temperature, minimum -10 °C
- Material of the contacts, electrical Silver
- Operating current 3,000 mA
- Number of shutters 4
- Cable section, maximum 1.5 mm²
- Switching frequency 1,200 /h
- Gross weight 180 g
- Rated impulse withstand voltage Uimp 1.5 kV
- Note (Mechanical lifetime) NO:Stage 1 - 2 - 1: 1,000,000 operationsStage 1 - 2 - 3 - 1: 100,000 operations
- Terminal Connector Screw connection
- Rated operating voltage 250 VAC, 250 VDC
- Standards IEC 60947-5-1, IEC 60204-1, EN 775
- Degree of protection IP65
- Switching principle Slow action
- Number of openers 1
- Ambient temperature, maximum +60 °C
- Enclosure material Plastic, thermoplastic, self-extinguishing
- Cable section, minimum 0.14 mm²
- Switching element NO contact, NC contact
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
