ZSD6/5M Schmersal Safety Accessories
Part#:ZSD6/5M
Alt. Part#:101210087
Manufacturer:Schmersal
Category:Safety Accessories
Product Lifecycle:Active
Product description

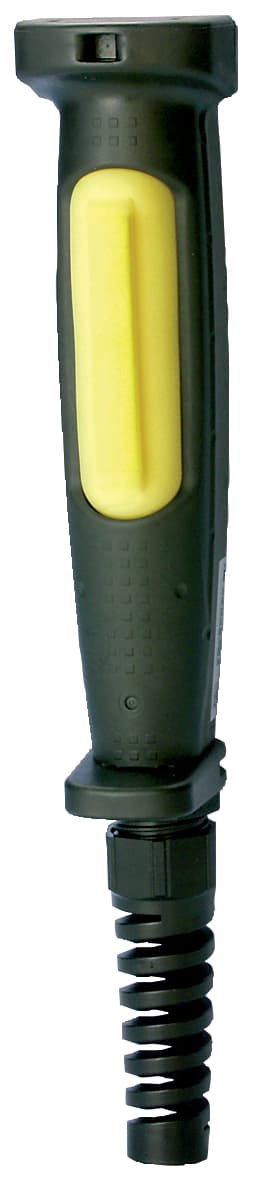

ZSD6/5M Schmersal - Enabling device; Thermoplastic enclosure; 1 Cable entry M 20 x 1.5; Good resistance to oil and petroleum spirit; Particularly fit for robot applications in accordance with the ANSI Robotics Standard; The redundant contact configuration enables signal proc
Product Details
- Number of shutters 4
- Standards IEC 60947-5-1, IEC 60204-1, EN 775
- Operating current 3,000 mA
- Number of openers 1
- Ambient temperature, maximum +60 °C
- Terminal Connector Screw connection
- Rated operating voltage 250 VAC, 250 VDC
- Enclosure material Plastic, thermoplastic, self-extinguishing
- Cable section, minimum 0.14 mm²
- Switching principle Slow action
- Note (Mechanical lifetime) NO:Stage 1 - 2 - 1: 1,000,000 operationsStage 1 - 2 - 3 - 1: 100,000 operations
- Cable section, maximum 1.5 mm²
- Material of the contacts, electrical Silver
- Ambient temperature, minimum -10 °C
- Switching frequency 1,200 /h
- Gross weight 380 g
- Degree of protection IP65
- Switching element NO contact, NC contact
- Push button, additionally Yes
- Rated impulse withstand voltage Uimp 1.5 kV
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of ZSD6/5M on Applied Automation is $686.00. Order now.
ZSD6/5M Related Documents
Similar products from: Schmersal Safety Accessories
Manufacturer warranty
ZSD6/5M Schmersal
$686.00
Your price can be lower.
Log in or Create account to check your discount
This part can be ordered
Select Qty:
$686.00
$686.00 each
This item may have a lead time. To ensure availability before placing your order, chat with our team—we'll confirm for you right away!
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
Your Safety, Our Priority.
Warranty
Manufacturer warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare ZSD6/5M with other Safety Accessories products
Number of shutters
Standards
Operating current
Number of openers
Ambient temperature, maxi...
Terminal Connector
Rated operating voltage
Enclosure material
Cable section, minimum
Switching principle
Selected product
ZSD6/5M
Schmersal
ZSD6/5M Schmersal - Enabling device; Thermoplastic enclosure; 1 Cable entry M 20 x 1.5; Good resista...
Number of shutters4
StandardsIEC 60947-5-1, IEC 60204-1, ...
Operating current3,000 mA
Number of openers1
Ambient temperature, maximum+60 °C
Terminal ConnectorScrew connection
Rated operating voltage250 VAC, 250 VDC
Enclosure materialPlastic, thermoplastic, self...
Cable section, minimum0.14 mm²
Switching principleSlow action
Number of shutters-
Standards-
Operating current-
Number of openers-
Ambient temperature, maximum-
Terminal Connector-
Rated operating voltage-
Enclosure material-
Cable section, minimum-
Switching principle-
About the manufacturer
Applied Automation is an authorized Schmersal distributor, proudly offering a diverse range of innovative safety and automation solutions tailored to meet the rigorous demands of modern industries. Schmersal is a globally renowned manufacturer specializing in the development and production of high-quality safety systems designed to protect both personnel and machinery across various industrial sec...
Recently viewed products
Relevant products
FAQ
What is the price of ZSD6/5M?
Purchase the ZSD6/5M from Applied Automation at the price of $686.00. Order today.
Out if stock but available for backorder.
ZSD6/5M Schmersal - Enabling device; Thermoplastic enclosure; 1 Cable entry M 20 x 1.5; Good resistance to oil and petroleum spirit; Particularly fit for robot applications in accordance with the ANSI Robotics Standard; The redundant contact configuration enables signal proc
