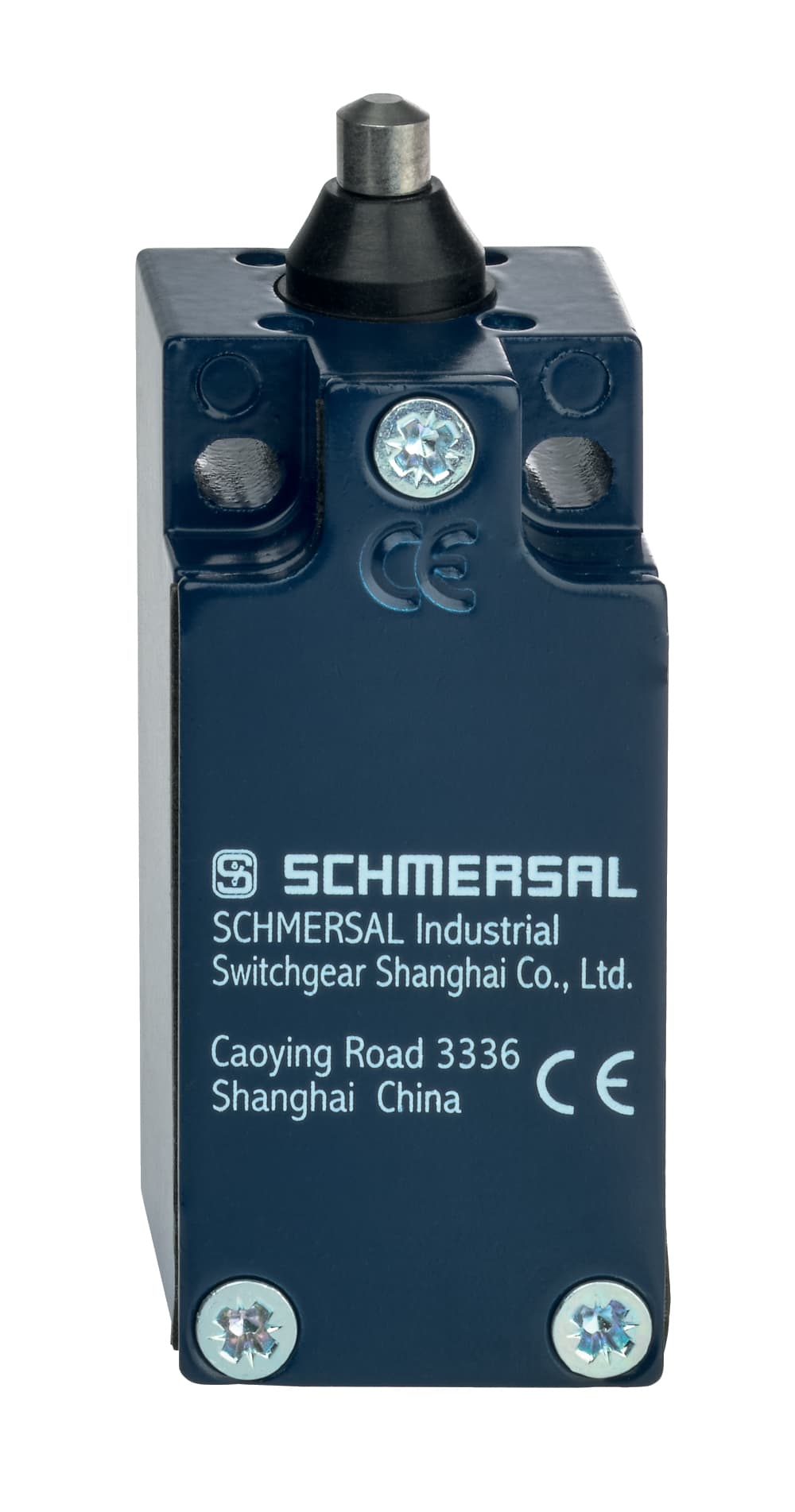

TS 235-11Z-M20 Schmersal Electronic Components

Product Details

• Actuator type to DIN EN 50047
  B
• Mechanical life, minimum
  20,000,000 Operations
• Terminal Connector
  Screw terminals M20 x 1.5
• Height of sensor
  75.5 mm
• Utilisation category AC-15
  240 VAC
• Number of safety contacts
  1
• Actuating element
  Plunger
• Length of sensor
  30 mm
• Rated impulse withstand voltage Uimp
  6 kV
• Safety functions
  Yes
• Note (Switchover time)
  Switchover time in accordance with actuating speed
• Ambient temperature, maximum
  +80 °C
• Switching frequency
  5,000 /h
• Number of auxiliary contacts
  1
• Actuating force, minimum
  9 N
• Cable section, minimum
  0.75 mm²
• Switching element
  NO contact, NC contact
• Thermal test current
  10 A
• Housing construction form
  Norm construction design
• Positive break force, minimum
  19 N
Cable section, maximum
2.5 mm²
Degree of protection
IP65 to EN 60529, IP67 to EN 60529
Required rated short-circuit current to EN 60947-5-1
1,000 A
Enclosure material
Zinc die-cast, paint finish
Gross weight
145 g
Note Bounce duration
Bounce duration in accordance with actuating speed
Ambient temperature, minimum
-30 °C
Standards
IEC 60947-5-1, EN ISO 13849-1, BG-GS-ET-15
Actuating speed, maximum
1 m/s
Note (Cable section)
All indications about the cable section are including the conductor ferrules.
Material of the contacts, electrical
Silver
Actuating speed, minimum
60 mm/min
Width of sensor
30 mm
Rated insulation voltage Ui
250 V
Switching principle
Creep circuit element
Utilisation category DC-13
1 A
