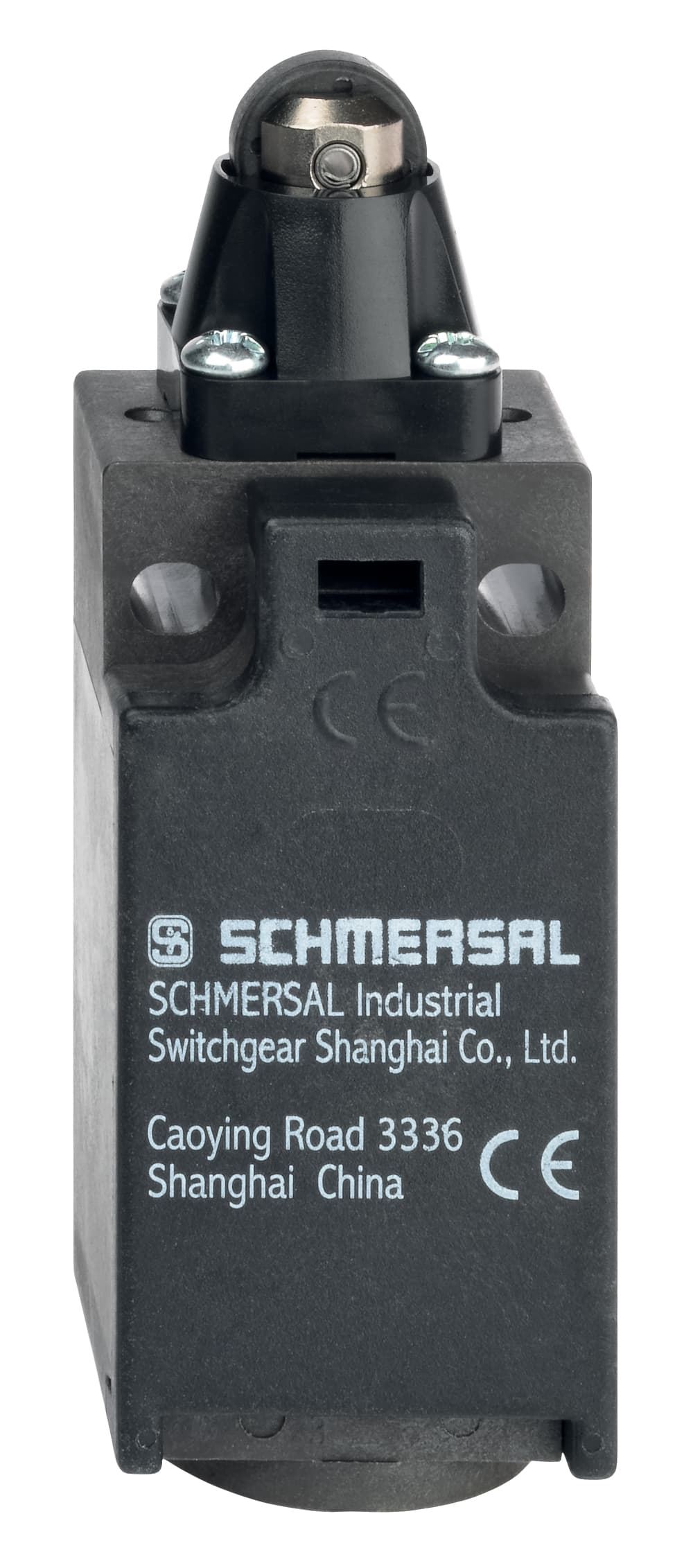

TR 236-02Z-M20 Schmersal Electronic Components
Part#:TR 236-02Z-M20
Alt. Part#:101160532
Manufacturer:Schmersal
Category:Electronic Components
Product Lifecycle:Active
Product description
Position switch; 236; 1 Cable entry M 20 x 1.5; Thermoplastic enclosure; Good resistance to oil and petroleum spirit; Wide range of alternative actuators; 30 mm x 58,5 mm x 30 mm; Double-insulated; Mounting details to EN 50047; Actuator heads can be repos
Product Details
- Gross weight 65 g
- Actuator type to DIN EN 50047 c
- Note Bounce duration Bounce duration in accordance with actuating speed
- Width of sensor 30 mm
- Rated insulation voltage Ui 250 V
- Switching principle Creep circuit element
- Housing construction form Norm construction design
- Actuating force, minimum 9 N
- Cable section, maximum 2.5 mm²
- Ambient temperature, minimum -30 °C
- Actuating element Roller plunger
- Positive break force, minimum 19 N
- Cable section, minimum 0.75 mm²
- Required rated short-circuit current to EN 60947-5-1 1,000 A
- Switching element Opener (NC)
- Actuating speed, minimum 120 mm/min
- Safety functions Yes
- Note (Cable section) All indications about the cable section are including the conductor ferrules.
- Utilisation category AC-15 4 A
- Standards IEC 60947-5-1, EN ISO 13849-1, BG-GS-ET-15
- Enclosure material Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Note (Switchover time) Switchover time in accordance with actuating speed
- Degree of protection IP65 to EN 60529, IP67 to EN 60529
- Material of the contacts, electrical Silver
- Actuating speed, maximum 1 m/s
- Ambient temperature, maximum +80 °C
- Terminal Connector Screw connection
- Mechanical life, minimum 20,000,000 Operations
- Length of sensor 30 mm
- Thermal test current 10 A
- Switching frequency 5,000 /h
- Number of safety contacts 2
- Note (Actuating speed) Actuating speed with actuating angle 30° to switch axis
- Height of sensor 84 mm
- Rated impulse withstand voltage Uimp 6 kV
- Utilisation category DC-13 24 VDC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of TR 236-02Z-M20 on Applied Automation is $90.00. Order now.
TR 236-02Z-M20 Related Documents
Manufacturer warranty
TR 236-02Z-M20 Schmersal
$90.00
Your price can be lower.
Log in or Create account to check your discount
This part can be ordered
Select Qty:
$90.00
$90.00 each
This item may have a lead time. To ensure availability before placing your order, chat with our team—we'll confirm for you right away!
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
Your Safety, Our Priority.
Warranty
Manufacturer warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
About the manufacturer
Applied Automation is an authorized Schmersal distributor, proudly offering a diverse range of innovative safety and automation solutions tailored to meet the rigorous demands of modern industries. Schmersal is a globally renowned manufacturer specializing in the development and production of high-quality safety systems designed to protect both personnel and machinery across various industrial sec...
Recently viewed products
Relevant products
FAQ
What is the price of TR 236-02Z-M20?
Purchase the TR 236-02Z-M20 from Applied Automation at the price of $90.00. Order today.
Out if stock but available for backorder.
Position switch; 236; 1 Cable entry M 20 x 1.5; Thermoplastic enclosure; Good resistance to oil and petroleum spirit; Wide range of alternative actuators; 30 mm x 58,5 mm x 30 mm; Double-insulated; Mounting details to EN 50047; Actuator heads can be repos
