TK4 236-11Z-M20 Schmersal Electronic Components
Part#:TK4 236-11Z-M20
Alt. Part#:101168167
Manufacturer:Schmersal
Category:Electronic Components
Product Lifecycle:Active
Product description
Position switch; 236; 1 Cable entry M 20 x 1.5; Thermoplastic enclosure; Good resistance to oil and petroleum spirit; Wide range of alternative actuators; 30 mm x 58,5 mm x 30 mm; Double-insulated; Mounting details to EN 50047; Actuator heads can be repos
Product Details
- Enclosure material Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Actuating speed, minimum 336 mm/min
- Note (Switchover time) Switchover time in accordance with actuating speed
- Length of sensor 30 mm
- Utilisation category AC-15 4 A
- Switching frequency 5,000 /h
- Material of the contacts, electrical Silver
- Number of safety contacts 1
- Gross weight 65 g

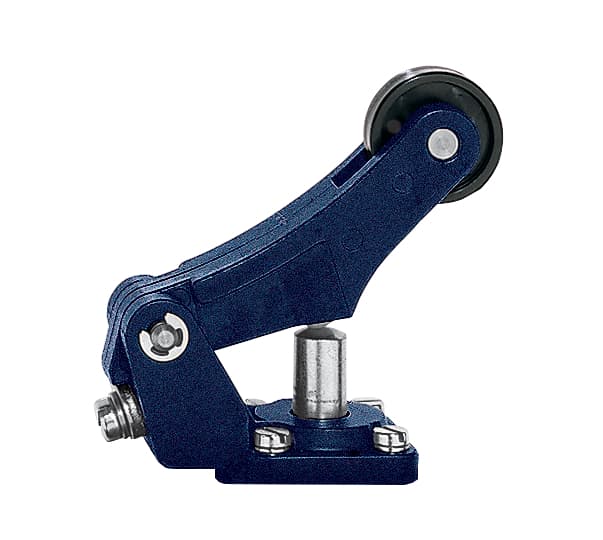

- Actuating element Angle roller lever
- Height of sensor 107 mm
- Mechanical life, minimum 20,000,000 Operations
- Actuating speed, maximum 1 m/s
- Cable section, maximum 2.5 mm²
- Width of sensor 32 mm
- Thermal test current 10 A
- Switching element NO contact, NC contact
- Positive break force, minimum 16 N
- Terminal Connector Screw connection
- Ambient temperature, minimum -30 °C
- Switching principle Creep circuit element
- Standards IEC 60947-5-1, EN ISO 13849-1, BG-GS-ET-15
- Number of auxiliary contacts 1
- Actuating force, minimum 6 N
- Degree of protection IP65 to EN 60529, IP67 to EN 60529
- Note (Cable section) All indications about the cable section are including the conductor ferrules.
- Safety functions Yes
- Note Bounce duration Bounce duration in accordance with actuating speed
- Required rated short-circuit current to EN 60947-5-1 1,000 A
- Utilisation category DC-13 1 A
- Note (Actuating speed) Actuating speed with actuating angle 30° to switch axis
- Ambient temperature, maximum +80 °C
- Rated impulse withstand voltage Uimp 6 kV
- Housing construction form Norm construction design
- Cable section, minimum 0.75 mm²
- Rated insulation voltage Ui 250 V
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of TK4 236-11Z-M20 on Applied Automation is $87.00. Order now.
