TESK-SU-12L2-3M Schmersal Safety Switches
Part#:TESK-SU-12L2-3M
Alt. Part#:103005762
Manufacturer:Schmersal
Category:Safety Switches
Product Lifecycle:Active
Product description

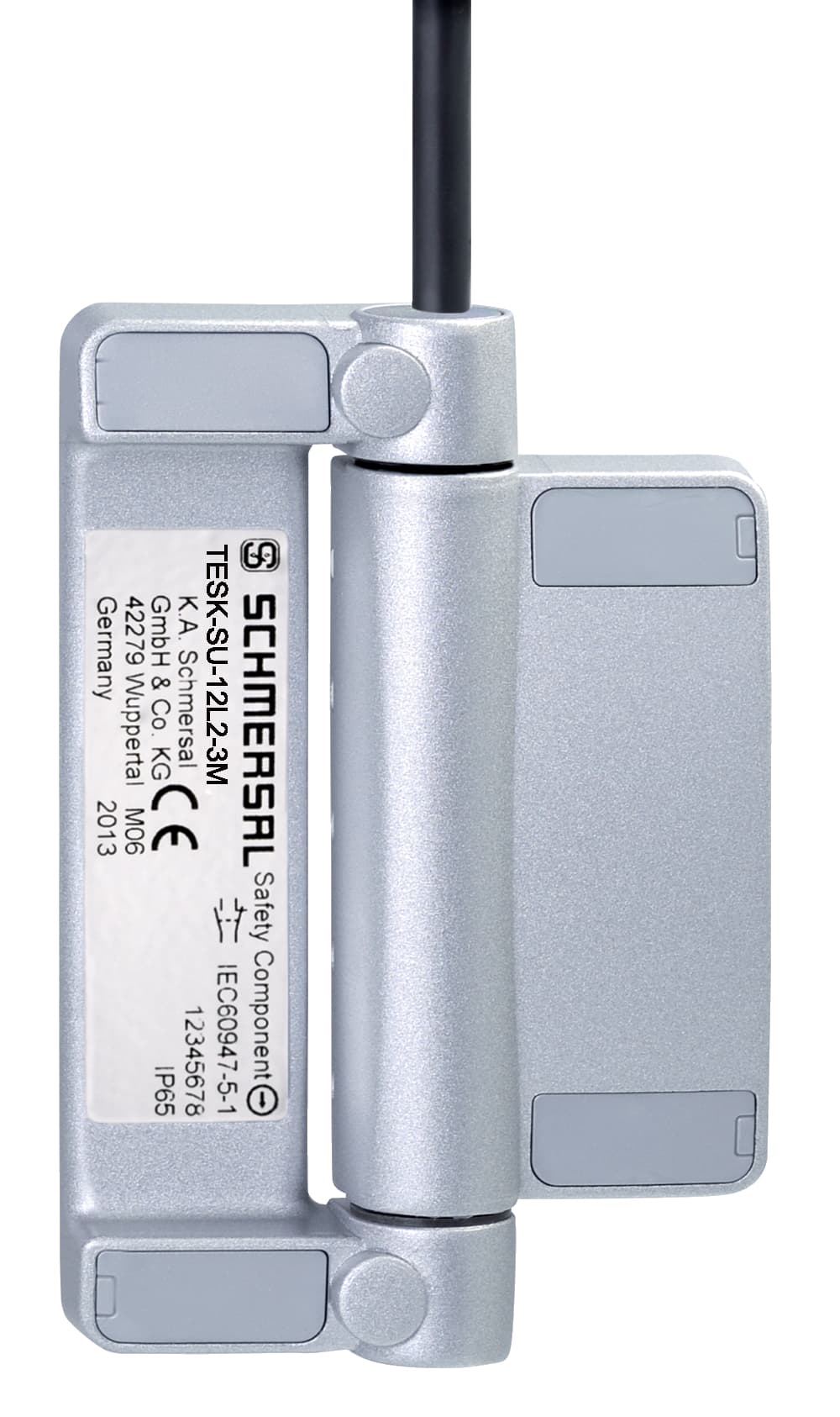

TESK-SU-12L2-3M Schmersal - Safety switch for hinged guards; Hinge safety switch; cable above; Adjustable switching angle; pre-set for interior fitting; Standard hinge; Metal enclosure
Product Details
- Adjustable switching angle Yes
- Number of auxiliary contacts 1
- Width of sensor 78 mm
- Number of safety contacts 2
- Terminal Connector cable
- Length of sensor 20 mm
- Thermal test current 2.5 A
- Material of the contacts, electrical Silver-nickel alloy 10
- Cable section, maximum 1 mm²
- Ambient temperature, minimum -25 °C
- Utilisation category DC-13 1 A
- Enclosure material Zinc die-cast
- Gross weight 524 g
- Note (Cable section) All indications about the cable section are including the conductor ferrules.
- Mechanical life, minimum 1,000,000 Operations
- Cable section, minimum 0.5 mm²
- Height of sensor 116 mm
- Ambient temperature, maximum +65 °C
- Switching frequency 1,200 /h
- Colour of the housing Silver
- Degree of protection IP65
- Rated impulse withstand voltage Uimp 2.5 kV
- Switching element NO contact, NC contact
- Mounting inside Yes
- Length of cable 3 m
- Switching principle Creep circuit element
- Alignment aid Yes
- Rated insulation voltage Ui 300 V
- Utilisation category AC-15 230 VAC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of TESK-SU-12L2-3M on Applied Automation is $313.00. Order now.
