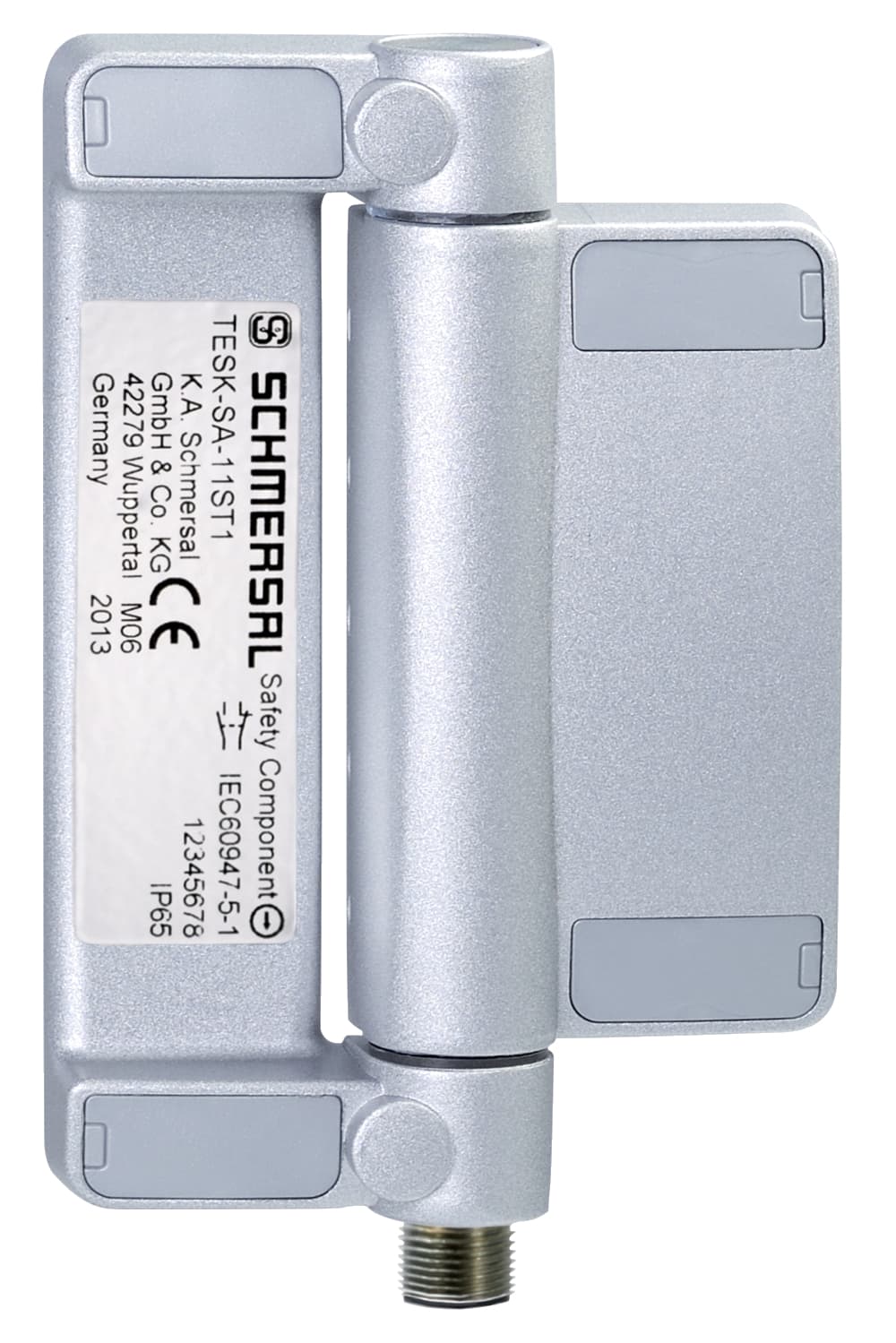

TESK-SA-11ST1 Schmersal Safety Switches
Part#:TESK-SA-11ST1
Alt. Part#:103005743
Manufacturer:Schmersal
Category:Safety Switches
Product Lifecycle:Active
Product description
TESK-SA-11ST1 Schmersal - Safety switch for hinged guards; Hinge safety switch; connector plug M12 bottom; with fixed switching angle; pre-set for front mounting; Standard hinge; Metal enclosure
Product Details
- Enclosure material Zinc die-cast
- Colour of the housing Silver
- Gross weight 250 g
- Number of auxiliary contacts 1
- Mounting outside Yes
- Material of the contacts, electrical Silver-nickel alloy 10
- Alignment aid Yes
- Mechanical life, minimum 1,000,000 Operations
- Terminal Connector Connector M12
- Number of safety contacts 1
- Width of sensor 78 mm
- Note (Cable section) All indications about the cable section are including the conductor ferrules.
- Cable section, minimum 0.5 mm²
- Cable section, maximum 1 mm²
- Length of sensor 20 mm
- Height of sensor 116 mm
- Degree of protection IP65
- Ambient temperature, minimum -25 °C
- Rated insulation voltage Ui 60 V
- Ambient temperature, maximum +65 °C
- Rated impulse withstand voltage Uimp 0.8 kV
- Thermal test current 2.5 A
- Utilisation category AC-15 2 A
- Utilisation category DC-13 24 VDC
- Switching element NO contact, NC contact
- Switching principle Creep circuit element
- Switching frequency 1,200 /h
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of TESK-SA-11ST1 on Applied Automation is $301.00. Order now.
