TESFA/S/CC/180 Schmersal Electronic Components
Part#:TESFA/S/CC/180
Alt. Part#:101182713
Manufacturer:Schmersal
Category:Electronic Components
Product Lifecycle:Active
Product description

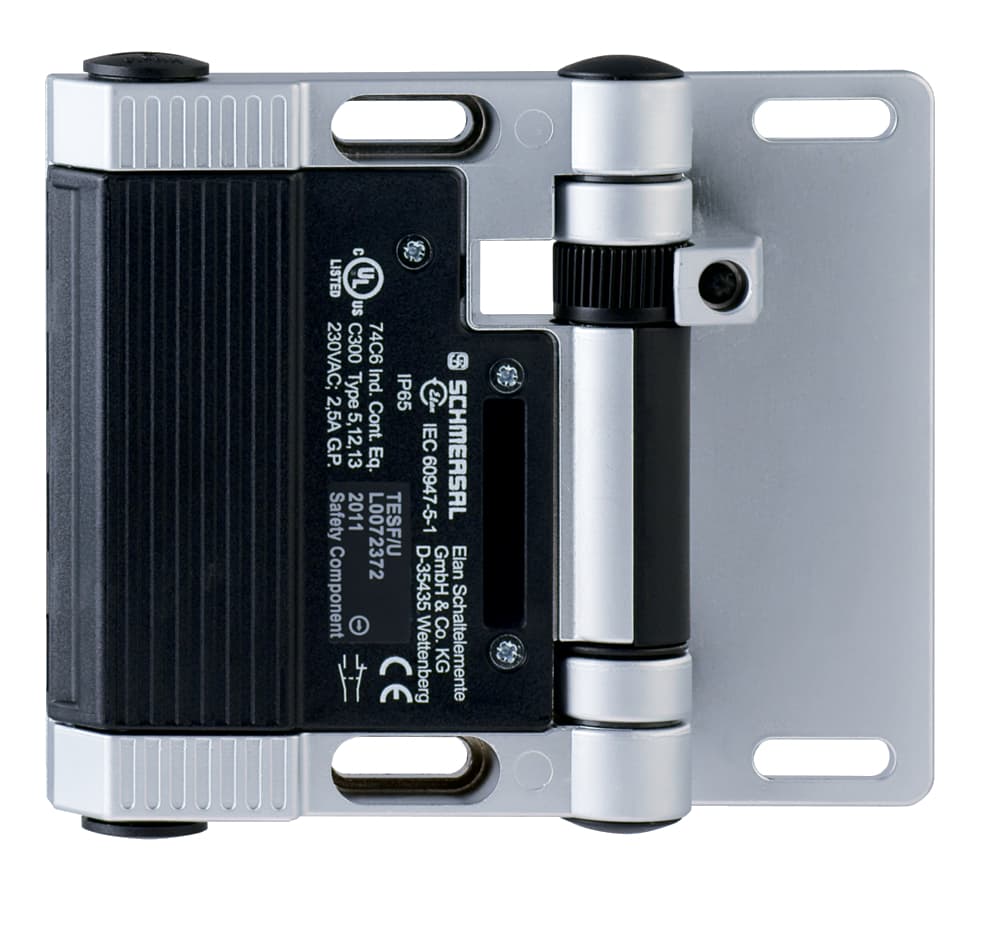

Safety switch for hinged guards; Hinge safety switch; 2 cable entries M 16 x 1.5; with fixed switching angle; Metal enclosure; Good resistance to oil and petroleum spirit; For left or right hinged doors; 141 mm x 115 mm x 21,5 mm; Simple mounting, suitabl
Product Details
- Number of auxiliary contacts 2
- Terminal Connector Spring pulley connection
- Ambient temperature, minimum -25 °C
- Switching element NO contact, NC contact
- Material of the contacts, electrical Silver-nickel alloy 10
- Positive break angle 14 °
- Degree of protection IP65
- Utilisation category DC-13 1 A
- Gross weight 616 g
- Height of sensor 115 mm
- Thermal test current 2.5 A
- Mounting inside Yes
- Cable section, minimum 0.5 mm²
- Rated insulation voltage Ui 250 V
- Alignment aid Yes
- Mechanical life, minimum 1,000,000 Operations
- Ambient temperature, maximum +65 °C
- Switching principle Creep circuit element
- Enclosure material Zinc die-cast
- Opening angle 180°
- Width of sensor 141 mm
- Number of safety contacts 2
- Length of sensor 21.5 mm
- Rated impulse withstand voltage Uimp 2.5 kV
- Switching frequency 1,200 /h
- Standards EN 60947-5-1, BG-GS-ET-15
- Cable section, maximum 1 mm²
- Colour of the housing Black
- Note (Cable section) All indications about the cable section are including the conductor ferrules.
- Utilisation category AC-15 230 VAC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
