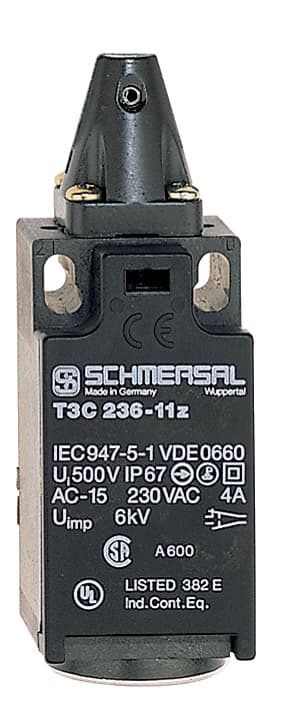

T3C 236-11Z-M20 Schmersal Electronic Components

Name: T3C 236-11Z-M20
Brand: Schmersal

Part#:T3C 236-11Z-M20

Alt. Part#:101162012

Manufacturer:Schmersal

Category:Electronic Components

Product Lifecycle:Active

Product description

Safety switch for hinged guards; Flap safety switches; 1 Cable entry M 20 x 1.5; Thermoplastic enclosure; Double-insulated; Good resistance to oil and petroleum spirit; 30 mm x 88,5 mm x 30 mm; Actuator heads can be repositioned by 4 x 90°

Product Details

Actuating element
Swivel lever
Lever material
Stainless steel
Note (Cable section)
All indications about the cable section are including the conductor ferrules.
Rated impulse withstand voltage Uimp
6 kV
Positive break angle
12.5 °
Cable section, minimum
1 x 0.75 mm²
Degree of protection
IP67
Switching element
NO contact, NC contact
Mechanical life, minimum
1,000,000 Operations
Cable section, maximum
1 x 2.5 mm²
Ambient temperature, maximum
+80 °C
Switching frequency
5,000 /h
Gross weight
85 g
Terminal Connector
Screw connection
Ambient temperature, minimum
-30 °C
Utilisation category DC-13
24 VDC
Height of the actuator
78 mm
Number of safety contacts
1
Positive break torque
0.2 Nm
Length of sensor
30 mm

Rated insulation voltage Ui

500 V

Material of the contacts, electrical

Silver

Opening angle

180°

Width of sensor

93 mm

Utilisation category AC-15

4 A

Enclosure material

Plastic, glass-fibre reinforced thermoplastic, self-extinguishing

Number of auxiliary contacts

Height of sensor

94.5 mm

Thermal test current

10 A

Switching principle

Creep circuit element

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
