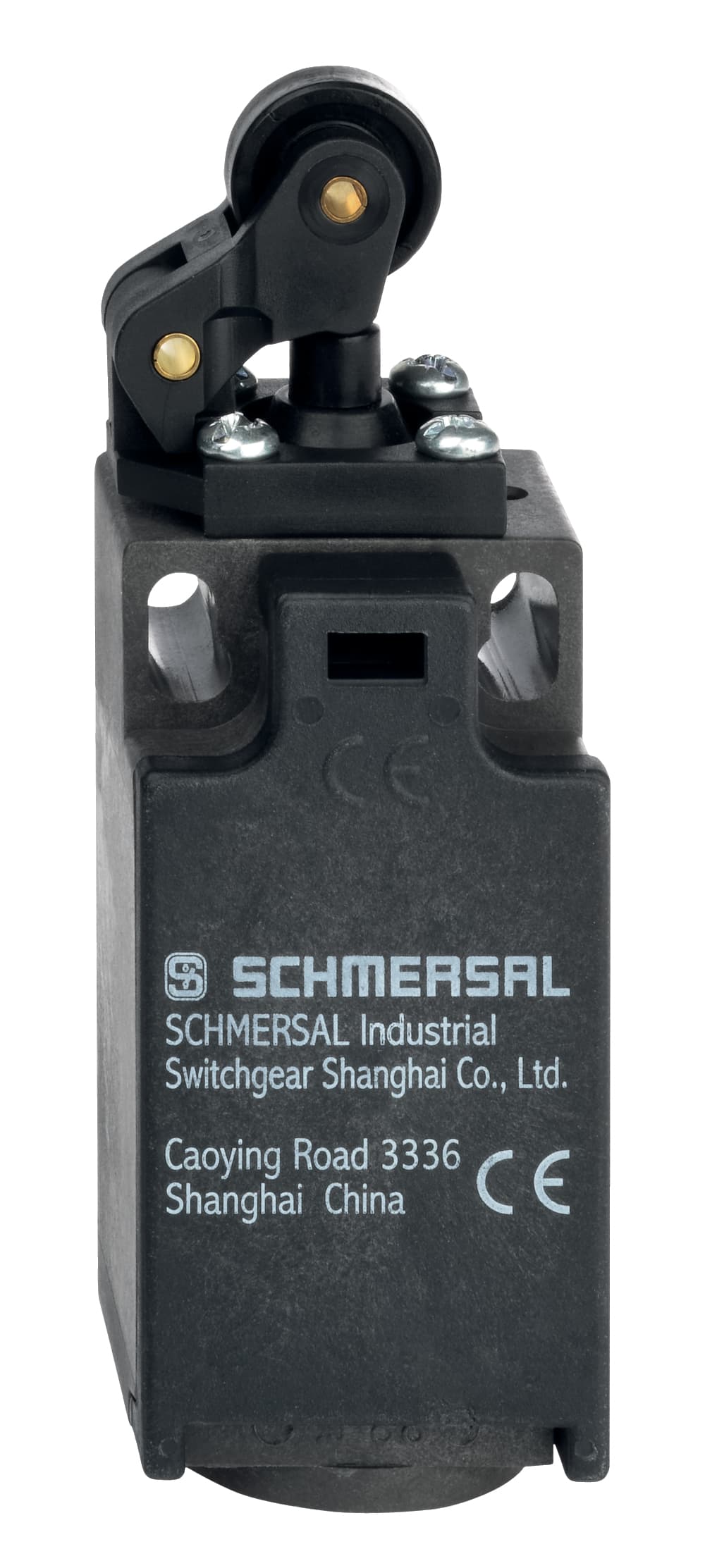

T1R 236-11Z-M20 Schmersal Electronic Components

Product Details

• Material of the contacts, electrical
  Silver
• Actuating speed, minimum
  160 mm/min
• Terminal Connector
  Screw connection
• Length of sensor
  30 mm
• Note (Actuating speed)
  Actuating speed with actuating angle 30° to switch axis
• Number of auxiliary contacts
  1
• Note (Cable section)
  All indications about the cable section are including the conductor ferrules.
• Required rated short-circuit current to EN 60947-5-1
  1,000 A
• Gross weight
  59 g
• Housing construction form
  Norm construction design
• Height of sensor
  89.5 mm
• Rated impulse withstand voltage Uimp
  6 kV
• Actuating speed, maximum
  1 m/s
• Cable section, minimum
  0.75 mm²
• Enclosure material
  Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
• Rated insulation voltage Ui
  250 V
• Switching principle
  Creep circuit element
• Actuating force, minimum
  9 N
• Actuating element
  Offset roller lever
• Width of sensor
  30 mm
Utilisation category AC-15
4 A
Mechanical life, minimum
20,000,000 Operations
Cable section, maximum
2.5 mm²
Ambient temperature, maximum
+80 °C
Switching element
NO contact, NC contact
Standards
IEC 60947-5-1, EN ISO 13849-1, BG-GS-ET-15
Note Bounce duration
Bounce duration in accordance with actuating speed
Number of safety contacts
1
Ambient temperature, minimum
-30 °C
Thermal test current
10 A
Switching frequency
5,000 /h
Positive break force, minimum
19 N
Note (Switchover time)
Switchover time in accordance with actuating speed
Safety functions
Yes
Degree of protection
IP65 to EN 60529, IP67 to EN 60529
Utilisation category DC-13
1 A
