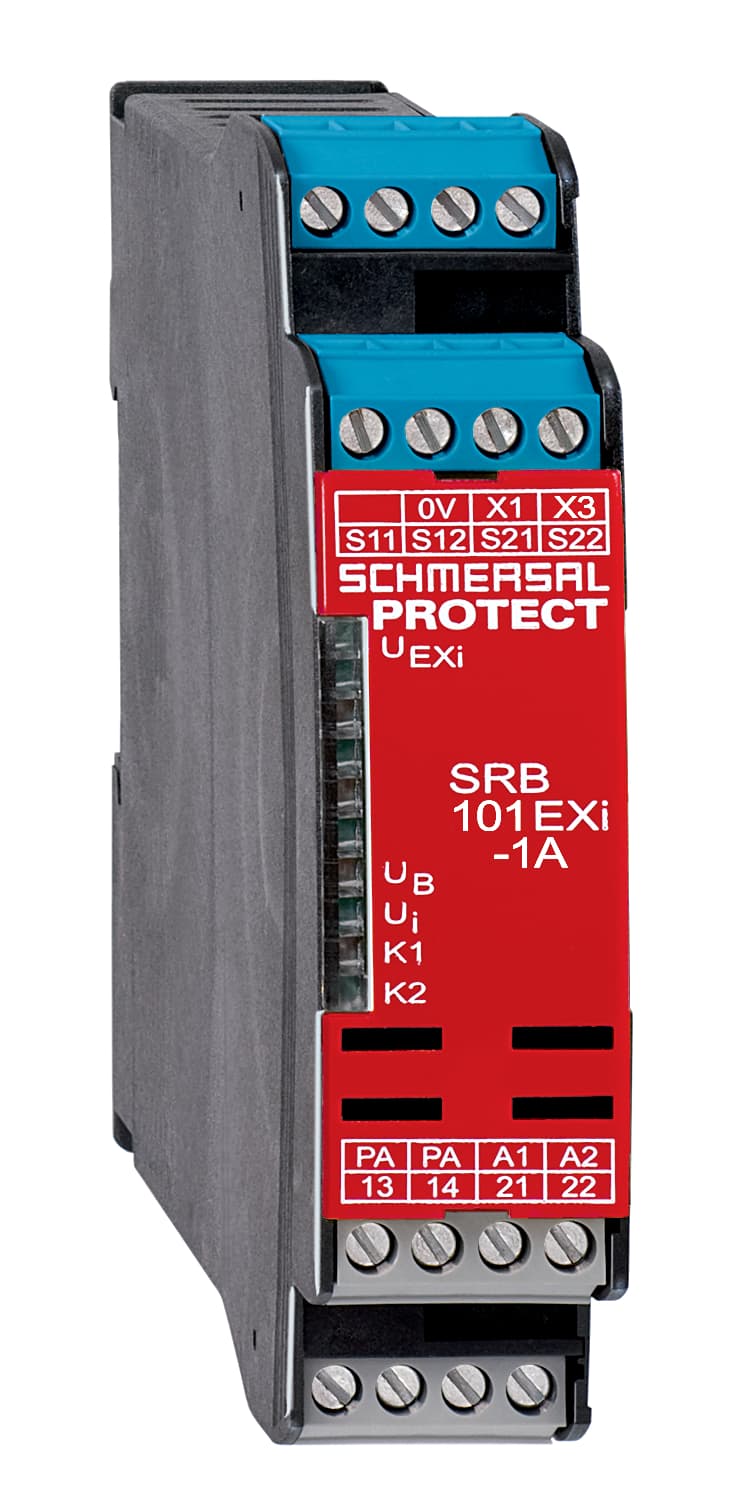

SRB101EXI-1A Schmersal Electronic Components

Product Details

• Automatic reset function
  Yes
• Mechanical life, minimum
  10,000,000 Operations
• Depth
  121 mm
• Ambient temperature, maximum
  +60 °C
• Operating Current
  57 mA
• Pull-in delay at automatic start, maximum, typically
  300 ms
• Earth connection detection
  Yes
• Number of safety contacts
  1
• Tightening torque of Clips
  0.6 Nm
• Ambient temperature, minimum
  -25 °C
• Rated operating voltage
  24 VDC -15%/+20%, residual ripple max. 10%
• Drop-out delay in case of power failure, typically
  20 ms
• Material of the contacts, electrical
  AgSn0. self-cleaning, positive drive
• Integral System Diagnostics, status
  Yes
• Degree of protection of the enclosure
  IP40
• Resistance to vibrations to EN 60068-2-6
  10 ... 55 Hz, Amplitude 0.35 mm
• Rated AC voltage for controls at DC minimum
  20.4 VDC
• Electrical power consumption
  3 W
• Drop-out delay in case of emergency stop, maximum
  20 ms
• Stop-Category
  0
Number of openers
2
Width
22.5 mm
Rated impulse withstand voltage Uimp
4 kV
Utilisation category AC-15
230 VAC
Pull-in delay at RESET, typically
20 ms
Climatic stress
EN 60068-2-78
Number of LEDs
5
Degree of protection of the mounting space
IP54
Storage and transport temperature, minimum
-40 °C
Rated control voltage at DC, maximum
28.8 VDC
Note (Contact resistance)
in new state
Number of auxiliary contacts
1
Short-circuit recognition
Yes
Cable section, minimum
0.25 mm²
Degree of protection of clips or terminals
IP20
Overvoltage category
III
Conduction resistance, maximum
30 Ω
Wire breakage detection
Yes
Mounting
Snaps onto standard DIN rail to EN 60715
Height
100 mm
Storage and transport temperature, maximum
+85 °C
Utilisation category DC-13
2 A
EMC rating
EMC-Directive
Enclosure material
Glass-fibre reinforced thermoplastic, ventilated
Terminal designations
IEC/EN 60947-1
Contact resistance, maximum
0.1 Ω
Restistance to shock
30 g / 11 ms
Gross weight
230 g
Cable section, maximum
2.5 mm²
Degree of pollution to IEC/EN 60664-1
2
Terminal Connector
Screw connection, rigid or flexible
Feedback circuit
Yes
