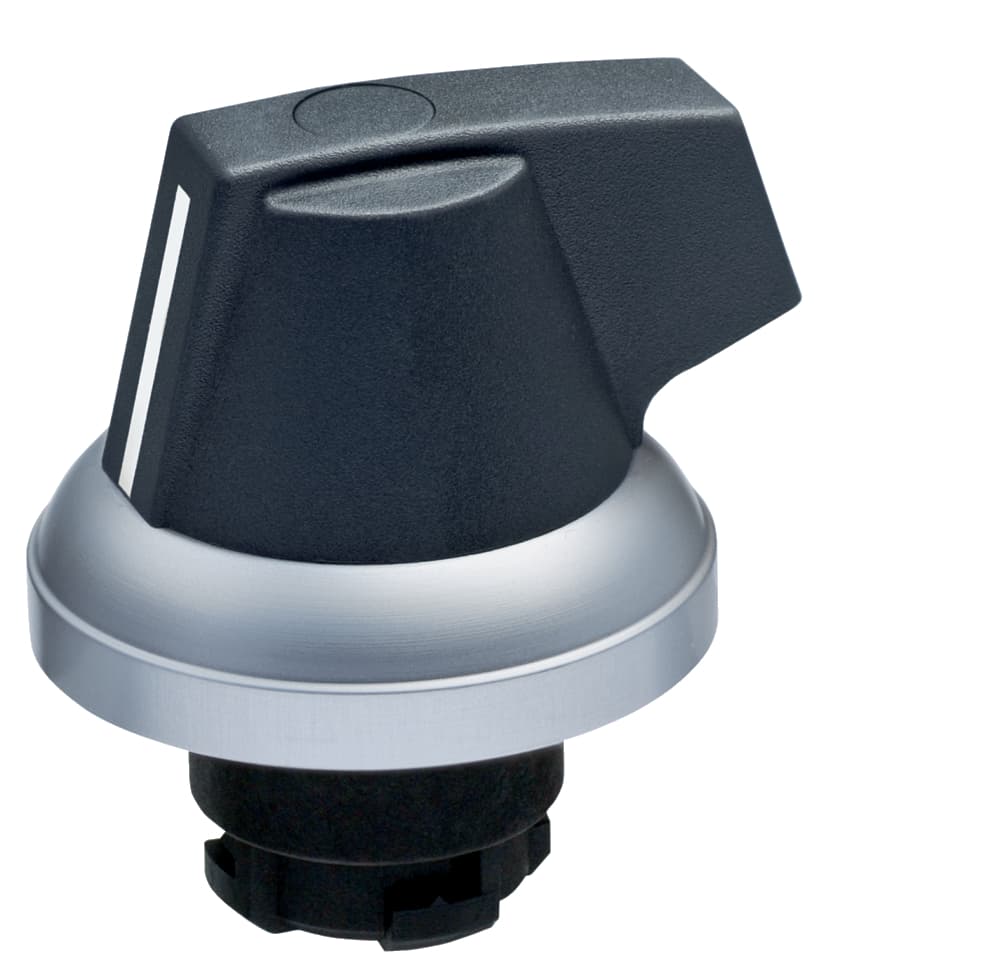

RWS21.1 Schmersal Selector Switches

Product Details

• Standards
  EN 60947-5-1, IEC/EN 60947-1
• Latching
  Yes
• Length of the handle
  34 mm
• Diameter hole, with tolerance indication
  22.3 + 0.4 mm
• Installation conditions (mechanical)
  arbitrarily
• Gross weight
  50 g
• Mounting
  Mounting flange EFM
• Ambient temperature, maximum
  +75 °C
• Material of the operators
  ABS
• Number of plunger
  1
• Diameter of the front ring
  39.5 mm
• Ambient temperature, minimum
  +0 °C
• Toggle
  long
• Switching angle, right
  70 °
• Mechanical life, minimum
  300,000 Operations
• Diameter hole
  22.3 mm
• Restistance to shock
  50 g
• Sealing type
  Membrane, Lip gaskets, Form seals
• Fully insulated
  Yes
• Diameter total
  39.5 mm
Degree of protection
IP65
Material of the front ring
Aluminium
Versions
Selector switch - Front plate mounting
Latching position
right
Thickness, of the front panel, minimum
1 mm
Colour of the handle
Grey
Number of switch positions
2
Tightening torque of the screw
0.6 Nm
Spacing
50 x 60 mm
Colour of the front ring
Silver
Unlocking
Rotating unlatcher
Diameter of the knob
30 mm
Thickness of the front panel, maximum
6 mm
