PS226-T12-K200 Schmersal Safety Switches

PS226-T12-K200 on Applied Automation
Schmersal

Part#:PS226-T12-K200

Alt. Part#:103015080

Manufacturer:Schmersal

Category:Safety Switches

Product Lifecycle:Active

Product description

PS226-T12-K200 Schmersal - Position switch; PS226; thermoplastic enclosure with foldable latching cover; Quick connection technology as connection terminals rotated by 45°; Simple and quick to adjust the control elements by 45°.; cable entry 2 x M20 x 1,5; Design to EN 50047

Product Details

  • Switching frequency
    5,000 /h
  • Utilisation category DC-13
    24 VDC
  • Rated impulse withstand voltage Uimp
    4 kV
  • Degree of protection
    IP66, IP67
  • Safety functions
    Yes
  • Enclosure material
    Plastic, glass-fibre-reinforced
  • Number of safety contacts
    2
  • Switching element
    1 NO contact, 2 NC contacts
  • Switching principle
    Creep circuit element
  • Utilisation category AC-15
    3 A
  • Thermal test current
    5 A
  • Required rated short-circuit current to EN 60947-5-1
    400 A
  • Ambient temperature, minimum
    -30 °C
  • Rated insulation voltage Ui
    300 V
  • Height of sensor
    95 mm
  • Ambient temperature, maximum
    +80 °C
  • Cable section, maximum
    1.5 mm²
  • Length of sensor
    33 mm
  • Width of sensor
    59 mm
  • Cable section, minimum
    0.34 mm²
  • Actuating speed, maximum
    1 m/s
  • Actuating speed, minimum
    60 mm/min
  • Positive break force, minimum
    40 N
  • Terminal Connector
    Screw connection
  • Actuating element

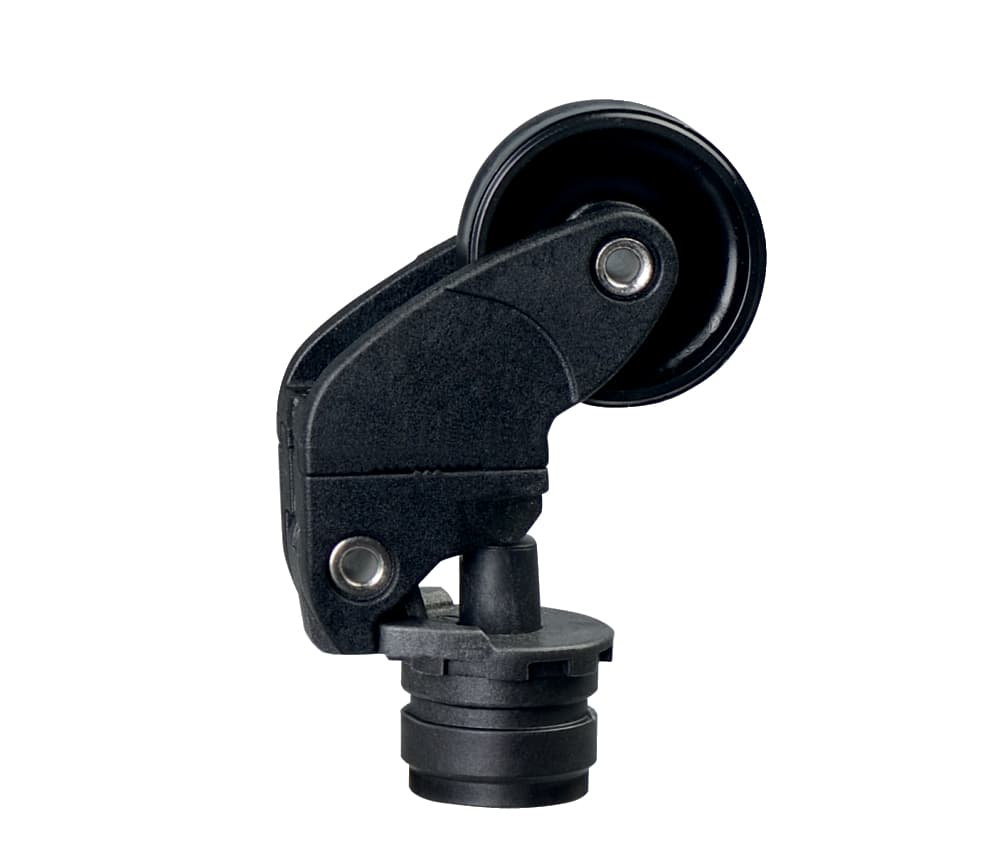

    Offset roller lever K200
  • Mechanical life, minimum
    10,000,000 Operations
  • Standards
    IEC 60947-5-1
  • Housing construction form
    Norm construction design
  • Number of auxiliary contacts
    1
  • Gross weight
    86.4 g
  • Actuator type to DIN EN 50047
    e
  • Material of the contacts, electrical
    Silver

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PS226-T12-K200 on Applied Automation is $73.00. Order now.




PS226-T12-K200 Related Documents

Manufacturer warranty

PS226-T12-K200 Schmersal

$73.00

Your price can be lower.
Log in or Create account to check your discount

This part can be ordered

Select Qty:

$73.00

$73.00 each

This item may have a lead time. To ensure availability before placing your order, chat with our team—we'll confirm for you right away!

Fast Shipping & Delivery

We deliver nationwide and international


Secure Payment Processing

Your Safety, Our Priority.


Warranty

Manufacturer warranty


Responsive Customer Support

Got Questions? We've Got Answers!


Need more details?

Feel free to chat with us

About the manufacturer

Schmersal

Applied Automation is an authorized Schmersal distributor, proudly offering a diverse range of innovative safety and automation solutions tailored to meet the rigorous demands of modern industries. Schmersal is a globally renowned manufacturer specializing in the development and production of high-quality safety systems designed to protect both personnel and machinery across various industrial sec...

Recently viewed products

Relevant products

FAQ

What is the price of PS226-T12-K200?
Purchase the PS226-T12-K200 from Applied Automation at the price of $73.00. Order today.

Out if stock but available for backorder.

PS226-T12-K200 Schmersal - Position switch; PS226; thermoplastic enclosure with foldable latching cover; Quick connection technology as connection terminals rotated by 45°; Simple and quick to adjust the control elements by 45°.; cable entry 2 x M20 x 1,5; Design to EN 50047
