PS226-T11-J200 Schmersal Safety Switches
Part#:PS226-T11-J200
Alt. Part#:103015094
Manufacturer:Schmersal
Category:Safety Switches
Product Lifecycle:Active
Product description
PS226-T11-J200 Schmersal - Position switch; PS226; only for positioning tasks; Lever angle adjustable in 15° steps; Simple and quick to adjust the control elements by 45°.; thermoplastic enclosure with foldable latching cover; Quick connection technology as connection terminals rot
Product Details
- Gross weight 137.8 g

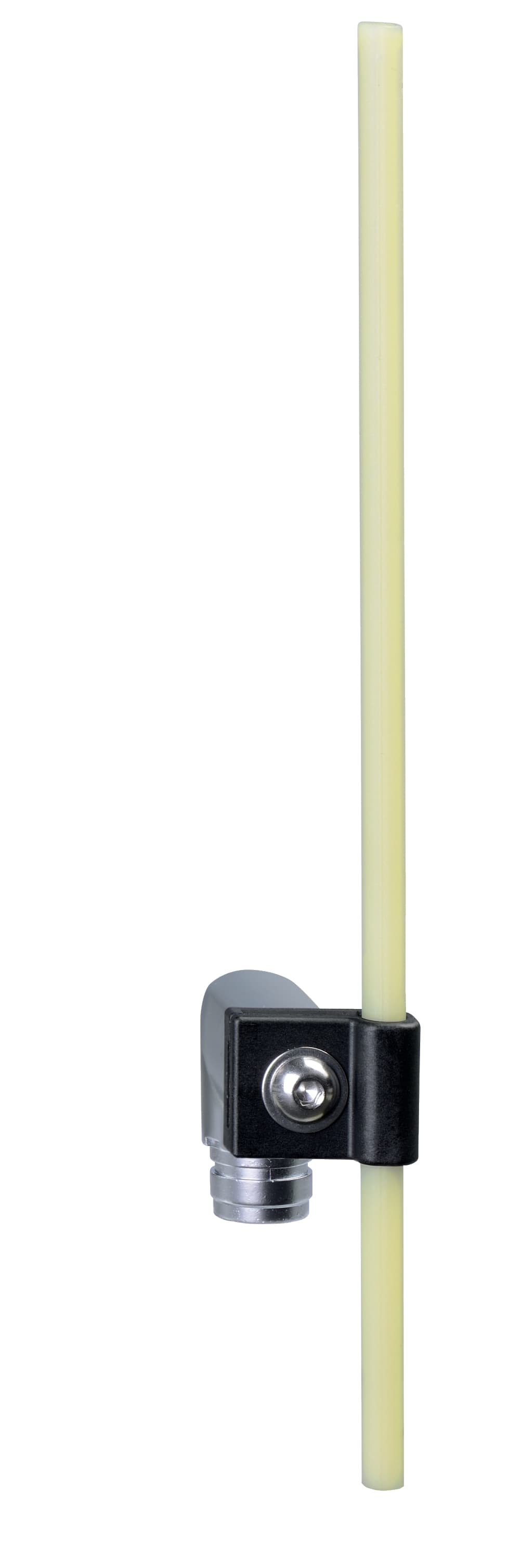

- Actuating element Rod lever J200
- Positive break force, minimum 40 N
- Length of sensor 33 mm
- Mechanical life, minimum 10,000,000 Operations
- Height of sensor 180.5 mm
- Ambient temperature, maximum +80 °C
- Utilisation category AC-15 3 A
- Number of safety contacts 1
- Actuating speed, minimum 60 mm/min
- Ambient temperature, minimum -30 °C
- Required rated short-circuit current to EN 60947-5-1 400 A
- Switching frequency 5,000 /h
- Number of auxiliary contacts 1
- Terminal Connector Screw connection
- Width of sensor 59 mm
- Rated impulse withstand voltage Uimp 4 kV
- Switching principle Creep circuit element
- Material of the contacts, electrical Silver
- Actuating speed, maximum 1 m/s
- Degree of protection IP66, IP67
- Housing construction form Norm construction design
- Cable section, minimum 0.34 mm²
- Rated insulation voltage Ui 300 V
- Utilisation category DC-13 24 VDC
- Enclosure material Plastic, glass-fibre-reinforced
- Cable section, maximum 1.5 mm²
- Standards IEC 60947-5-1
- Thermal test current 10 A
- Switching element 1 NO contact, 1 NC contacts
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of PS226-T11-J200 on Applied Automation is $115.00. Order now.
