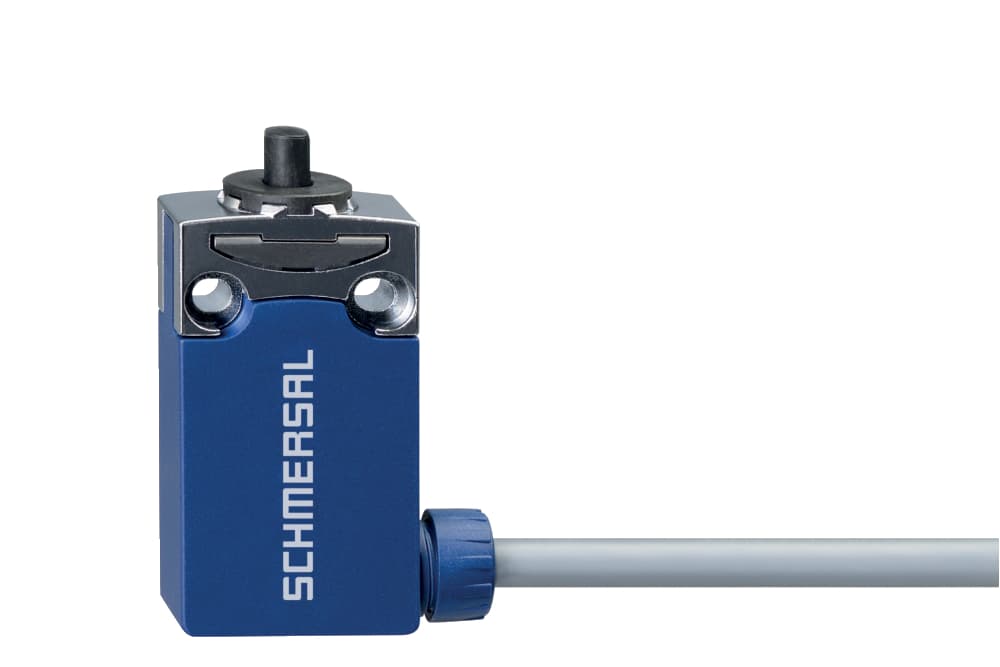

PS116-T21-LR200-S200 Schmersal Safety Switches

Product Details

• Number of auxiliary contacts
  2
• Actuating force, minimum
  10 N
• Length of sensor
  16.6 mm
• Switching principle
  Creep circuit element
• Required rated short-circuit current to EN 60947-5-1
  1,000 A
• Safety functions
  Yes
• Number of safety contacts
  1
• Cable type
  LiYY
• Rated impulse withstand voltage Uimp
  4 kV
• Bounce duration, maximum
  3 ms
• Material of the contacts, electrical
  Silver
• Mechanical life, minimum
  10,000,000 Operations
• Length of cable
  2 m
• Ambient temperature, minimum
  -30 °C
• Housing construction form
  Norm construction design
• Actuating speed, minimum
  60 mm/min
• Ambient temperature, maximum
  +80 °C
• Utilisation category DC-13
  24 VDC
• Terminal (mechanical)
  right
• Positive break force, minimum
  40 N
Thermal test current
5 A
Rated insulation voltage Ui
300 V
Switching frequency
5,000 /h
Standards
IEC 60947-5-1
Actuating element
plunger S200
Height of sensor
64 mm
Actuator type to DIN EN 50047
B
Gross weight
186.9 g
Actuating speed, maximum
0.5 m/s
Width of sensor
31 mm
Switching element
NO contact, NC contact
Utilisation category AC-15
240 VAC
Enclosure material
Plastic, glass-fibre reinforced thermoplastic, zinc die-cast, chromated
Terminal Connector
Cable, 6-pole
Degree of protection
IP66, IP67
Wire cross-section
0.5 mm2
Switchover time, maximum
5.5 ms
