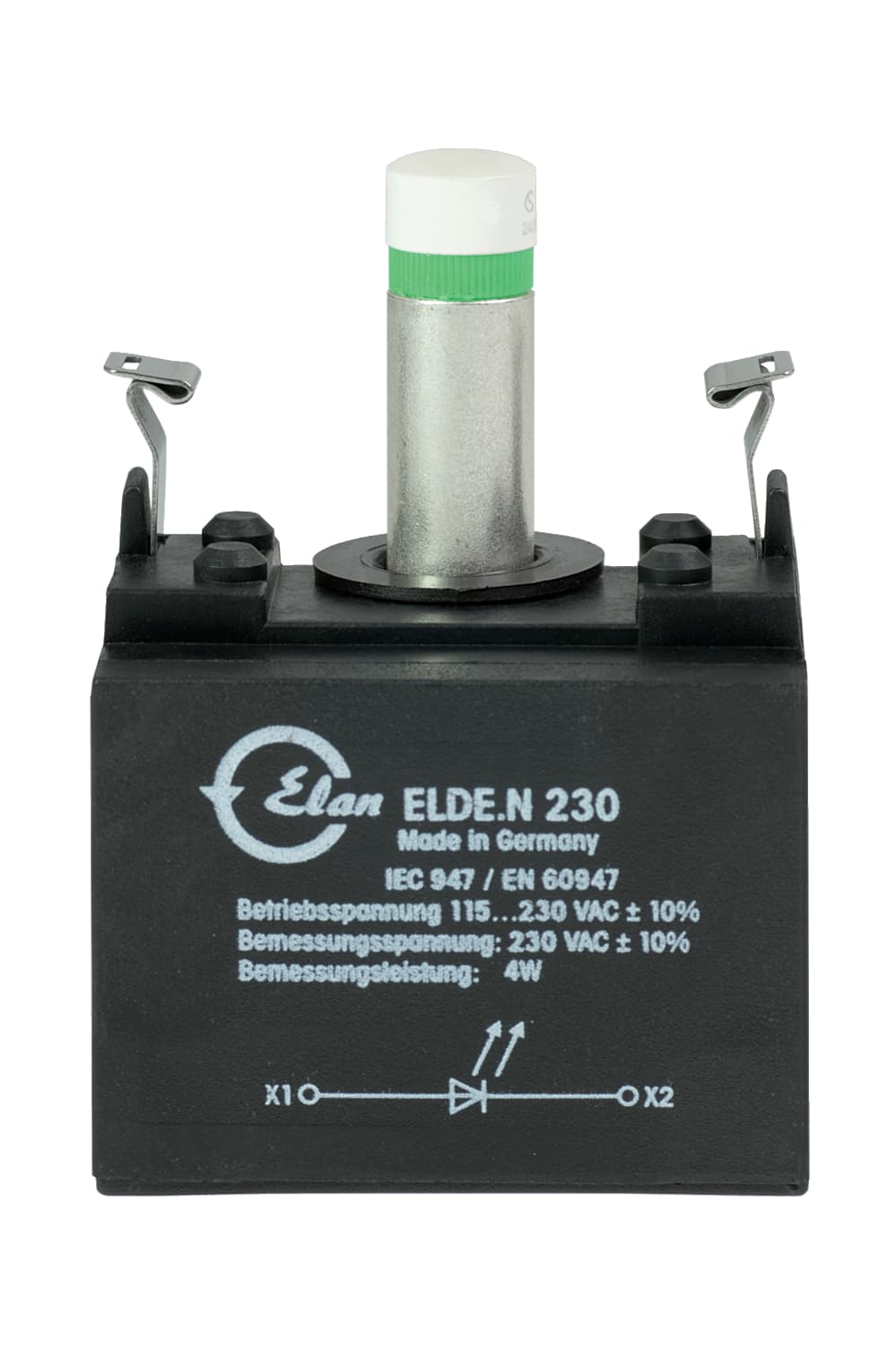

ELDE.NWS230 Schmersal Electronic Components
Part#:ELDE.NWS230
Alt. Part#:101166026
Manufacturer:Schmersal
Category:Electronic Components
Product Lifecycle:Active
Product description
Command and signalling devices; Contact and light terminal blocks (EF/EL); Screw connection; Mounting flange position 3; white LED; 230 VAC
Product Details
- Enclosure material Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Rated insulation voltage Ui 440 V
- Terminal Connector Screw connection
- Ambient temperature, maximum +80 °C
- Terminal designations EN 50005, EN 50013
- Width 30 mm
- Gross weight 25 g
- Depth 60 mm
- Integral System Diagnostics, general Yes
- Installation conditions (mechanical) arbitrarily
- Rated operating voltage 250 V
- Installation instructions pluggable
- Cable section, minimum 0.5 mm², rigid, 0.5 mm², flexible
- Mounting flange position 3
- Cable section, maximum 2.5 mm², rigid, 1.5 mm², flexible
- Length 46 mm
- Ambient temperature, minimum -25 °C
- Standards EN 60947-5-1, IEC/EN 60947-1
- Degree of protection of clips or terminals IP20
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
