ELDE.N-RD-GN-YE-24VDC Schmersal Electronic Components

Name: ELDE.N-RD-GN-YE-24VDC
Brand: Schmersal

ELDE.N-RD-GN-YE-24VDC on Applied Automation

Part#:ELDE.N-RD-GN-YE-24VDC

Alt. Part#:103007951

Manufacturer:Schmersal

Category:Electronic Components

Product Lifecycle:Active

Product description

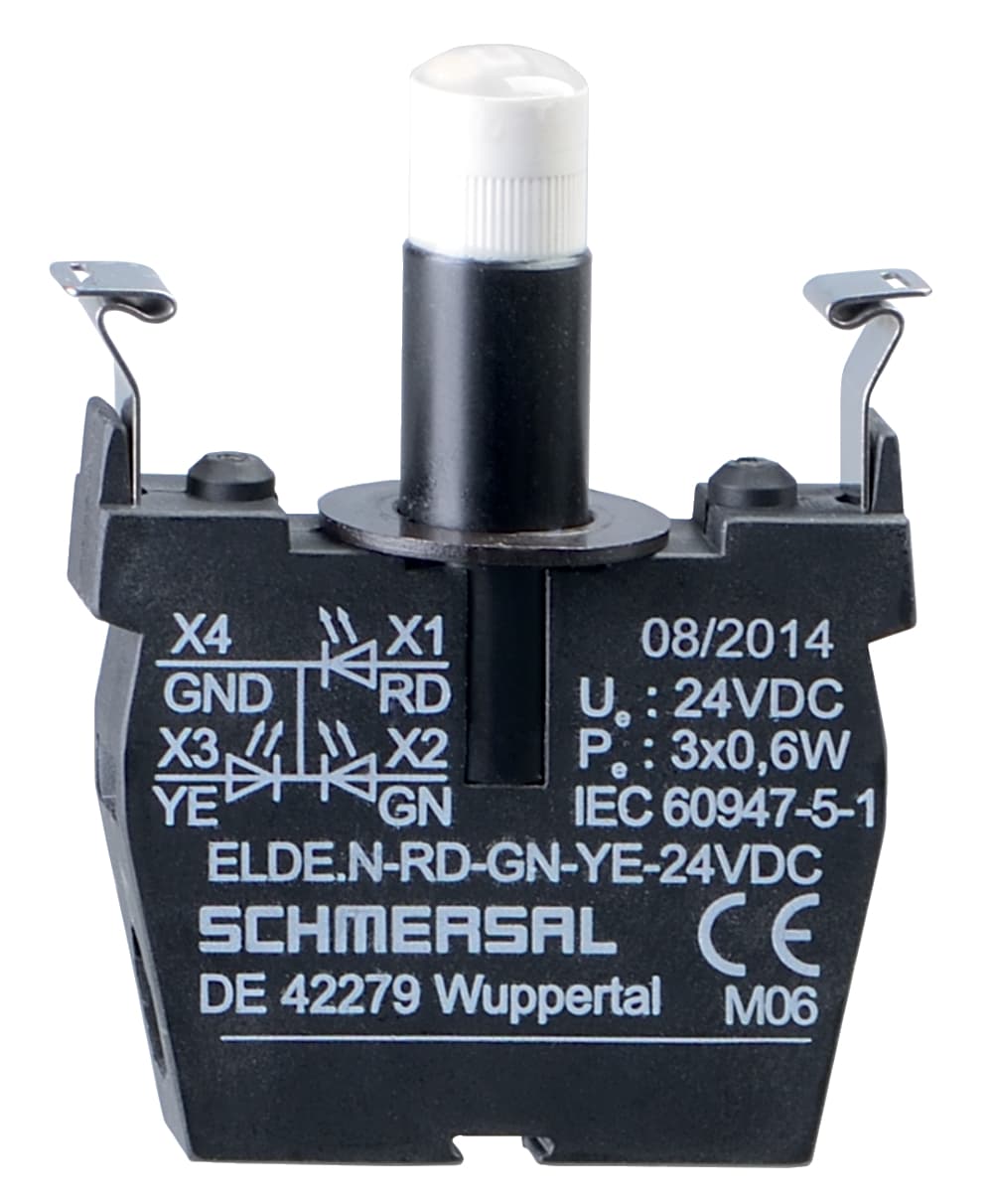

Command and signalling devices; Contact and light terminal blocks (EF/EL); 3 colour LED module red / green / yellow; Screw connection; Mounting flange position 3; 24

Product Details

Mounting flange position
3
Length
46 mm
Rated operating voltage
24 VDC
Installation instructions
pluggable
Cable section, minimum
0.5 mm², rigid, 0.5 mm², flexible
Ambient temperature, maximum
+75 °C
Terminal designations
EN 50005, EN 50013
Ambient temperature, minimum
-25 °C
Gross weight
23 g
Standards
IEC 60947-5-1, IEC/EN 60947-1
Rated insulation voltage Ui
400 V
Enclosure material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Cable section, maximum
2.5 mm², rigid, 1.5 mm², flexible
Integral System Diagnostics, general
Yes
Width
10 mm
Rated impulse withstand voltage Uimp
4 kV
Installation conditions (mechanical)
arbitrarily
Degree of protection of clips or terminals
IP20
Terminal Connector
Screw connection
Depth
60 mm

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

ELDE.N-RD-GN-YE-24VDC Related Documents

Datasheet.pdf
