EF033.3 Schmersal Safety Accessories
Part#:EF033.3
Alt. Part#:101006546
Manufacturer:Schmersal
Category:Safety Accessories
Product Lifecycle:Active
Product description
EF033.3 Schmersal - Command and signalling devices; Contact and light terminal blocks (EF/EL); Screw connection; Mounting flange position 3; 53-54; 63-64 (Contact labelling); Suitable for EMERGENCY-OFF
Product Details
- Enclosure material Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Cable section, minimum 0.5 mm², rigid, 0.5 mm², flexible
- Depth 60 mm
- Resistant to vibration Resistance to vibration: 20 g / 10…200 Hz
- Switching element Normally open contact (NO)
- Standards EN 60947-5-1, IEC/EN 60947-1
- Cable section, maximum 2.5 mm², rigid, 1.5 mm², flexible
- Degree of protection of clips or terminals IP20
- Utilisation category DC-13 24 VDC
- Installation instructions pluggable
- Contact opening 3 mm
- Length 46 mm
- Rated insulation voltage Ui 400 V
- Gross weight 35 g

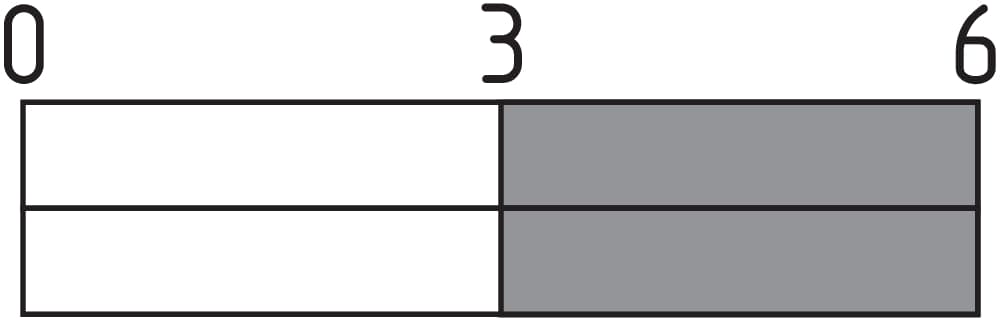

- positive break travel 2 mm
- Width 10 mm
- Material of the contacts, electrical Silver
- Mounting flange position 3
- Degree of protection of the switch rooms IP40
- Utilisation category AC-15 230 VAC
- Mechanical life, minimum 10,000,000 Operations
- Note Bounce duration Bounce duration at an Actuating speed of 100mm/s
- Ambient temperature, maximum +80 °C
- Switching principle Slow action
- Switching frequency 1,200 /h
- Number of shutters 2
- Contact labelling 53-54, 63-64
- Suitable for EMERGENCY-OFF Yes
- Terminal Connector Screw connection
- Note (Cable section) All indications about the cable section are including the conductor ferrules.
- Ambient temperature, minimum -25 °C
- Restistance to shock 110 g / 4 ms
- Thermal test current 10 A
- Suitable for low-voltages ≥ 5 V / ≥ 3.2 mA
- Bounce duration, maximum 5 ms
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of EF033.3 on Applied Automation is $25.00. Order now.
