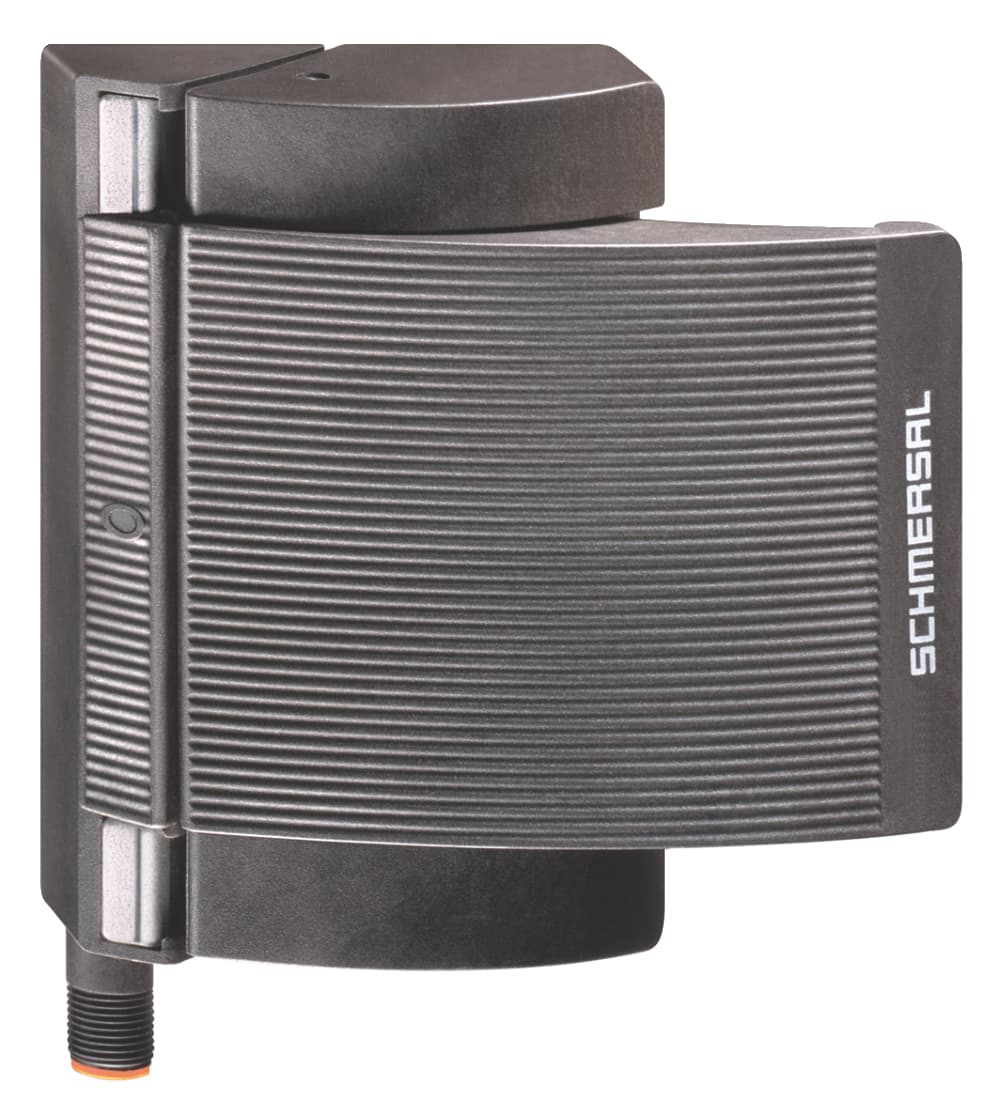

BNS-B20-12ZG-R Schmersal Safety Switches
Part#:BNS-B20-12ZG-R
Alt. Part#:101186265
Manufacturer:Schmersal
Category:Safety Switches
Product Lifecycle:Active
Product description
BNS-B20-12ZG-R Schmersal - Safety sensors; Magnetic safety sensors; Pre-wired cable; Thermoplastic enclosure; Non-contact safety switch; Does not protrude into the door opening; 119,5 mm x 140 mm x 43,3 mm; Substitutes door-handle and safety switch, no further door fittings require
Product Details
- Installation conditions (mechanical) quasi-flush
- Door hinge Right
- Length of sensor 43.3 mm
- Switching current, maximum 0.01 A
- Enclosure material Glass-fibre, reinforced thermoplastic
- Door weight, Sliding guard, maximal 3 kg
- Ensured switch distance OFF Sar 22 mm
- Degree of protection IP67
- Restistance to shock 30 g / 11 ms
- Coding level according to ISO 14119 Low
- Gross weight 146.5 g
- Cable entry bottom
- Ambient temperature, minimum -25 °C
- Number of shutters 1
- Ensured switch distance ON Sao 0 mm
- Door weight, Hinged guard, maximal 5 kg
- Width of sensor 119.5 mm
- Integral System Diagnostics, status Yes
- Number of cable wires 6
- Material of the Cable mantle PVC
- Height of sensor 140 mm
- Resistance to vibrations to EN 60068-2-6 10 … 55 Hz, amplitude 1 mm
- Standards IEC 60947-5-3, BG-GS-ET-14
- Latching force 100 N
- Wire cross-section 0.25 mm2
- Storage and transport temperature, minimum -25 °C
- Number of safety contacts 2
- Active principle Magnetic drive
- Length of cable 1 m
- Ambient temperature, maximum +70 °C
- Switching capacity, maximum 0.2 W
- Number of openers 2
- Actuating element Magnet
- Terminal Connector Cable
- Storage and transport temperature, maximum +70 °C
- Switching frequency, maximum 5 Hz
- Switching voltage, maximum 100 VAC
- Voltage type AC (alternating current), DC (direct current)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
