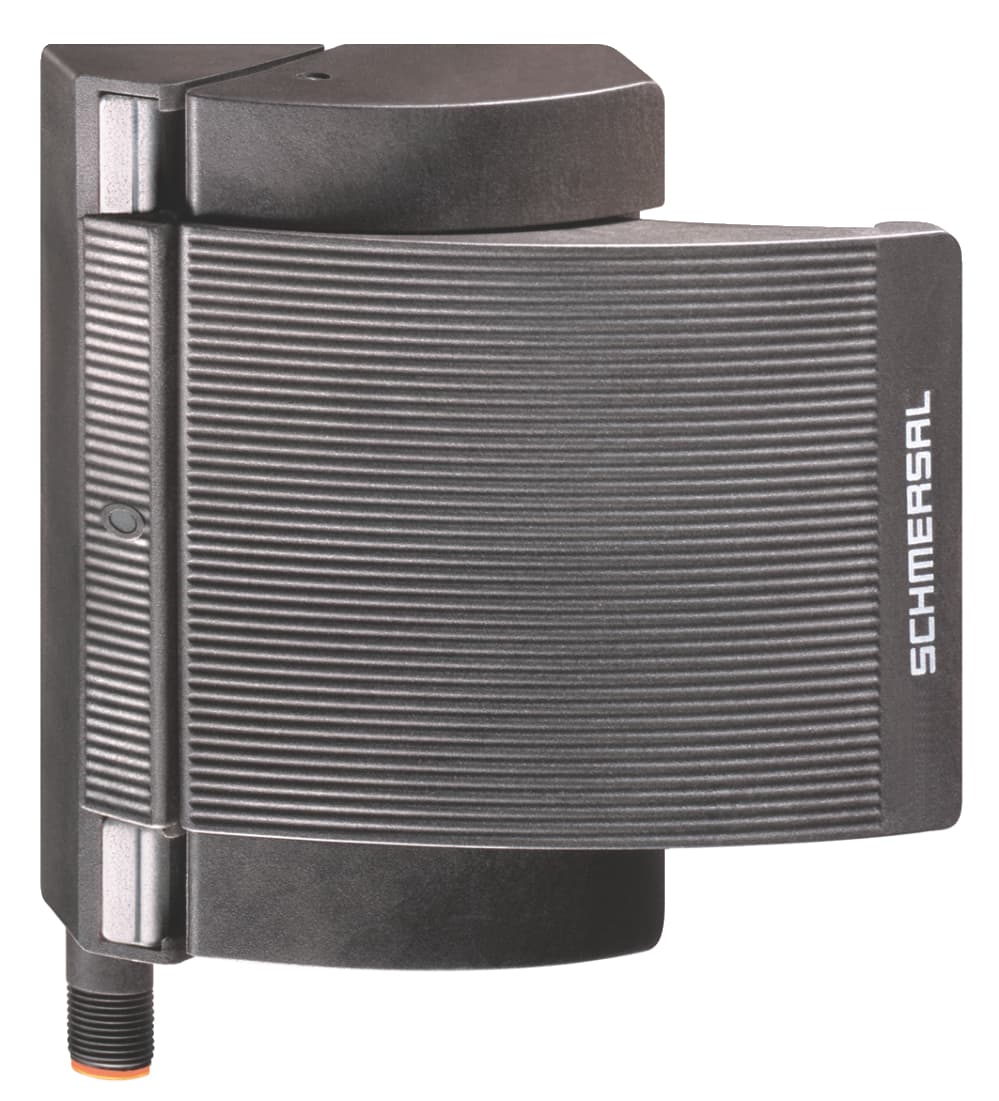

BNS-B20-12Z-ST-R Schmersal Safety Switches
Part#:BNS-B20-12Z-ST-R
Alt. Part#:101186260
Manufacturer:Schmersal
Category:Safety Switches
Product Lifecycle:Active
Product description
BNS-B20-12Z-ST-R Schmersal - Safety sensors; Magnetic safety sensors; Connector M12 x 1, 8-pole; Thermoplastic enclosure; Non-contact safety switch; Does not protrude into the door opening; 119,5 mm x 140 mm x 43,3 mm; Substitutes door-handle and safety switch, no further door fittin
Product Details
- Number of shutters 1
- Door weight, Hinged guard, maximal 5 kg
- Storage and transport temperature, maximum +70 °C
- Switching capacity, maximum 3 W
- Standards IEC 60947-5-3, BG-GS-ET-14
- Door weight, Sliding guard, maximal 3 kg
- Ambient temperature, maximum +70 °C
- Switching frequency, maximum 5 Hz
- Number of openers 2
- Coding level according to ISO 14119 Low
- Length of sensor 43.3 mm
- Restistance to shock 30 g / 11 ms
- Active principle Magnetic drive
- Actuating element Magnet
- Width of sensor 119.5 mm
- Number of safety contacts 2
- Ensured switch distance ON Sao 0 mm
- Storage and transport temperature, minimum -25 °C
- Switching voltage, maximum 24 VDC
- Gross weight 105 g
- Latching force 100 N
- Ensured switch distance OFF Sar 22 mm
- Degree of protection IP67
- Voltage type DC (direct current)
- Enclosure material Glass-fibre, reinforced thermoplastic
- Door hinge Right
- Ambient temperature, minimum -25 °C
- Resistance to vibrations to EN 60068-2-6 10 … 55 Hz, amplitude 1 mm
- Installation conditions (mechanical) quasi-flush
- Terminal Connector Connector M12
- Height of sensor 140 mm
- Switching current, maximum 0.24 A
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of BNS-B20-12Z-ST-R on Applied Automation is $167.00. Order now.
BNS-B20-12Z-ST-R Related Documents
Similar products from: Schmersal Safety Switches
Manufacturer warranty
BNS-B20-12Z-ST-R Schmersal
$167.00
Your price can be lower.
Log in or Create account to check your discount
This part can be ordered
Select Qty:
$167.00
$167.00 each
This item may have a lead time. To ensure availability before placing your order, chat with our team—we'll confirm for you right away!
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
Your Safety, Our Priority.
Warranty
Manufacturer warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
Compare BNS-B20-12Z-ST-R with other Safety Switches products
Number of shutters
Door weight, Hinged guard...
Storage and transport tem...
Switching capacity, maxim...
Standards
Door weight, Sliding guar...
Ambient temperature, maxi...
Switching frequency, maxi...
Number of openers
Coding level according to...
Selected product
BNS-B20-12Z-ST-R
Schmersal
BNS-B20-12Z-ST-R Schmersal - Safety sensors; Magnetic safety sensors; Connector M12 x 1, 8-pole; The...
Number of shutters1
Door weight, Hinged guard, maximal5 kg
Storage and transport temperature, maximum+70 °C
Switching capacity, maximum3 W
StandardsIEC 60947-5-3, BG-GS-ET-14
Door weight, Sliding guard, maximal3 kg
Ambient temperature, maximum+70 °C
Switching frequency, maximum5 Hz
Number of openers2
Coding level according to ISO 14119Low
AZM40Z-ST-1P2P
Schmersal
AZM40Z-ST-1P2P Schmersal - Solenoid interlocks; Compact, flat design; 119,5 mm x 40 mm x 20 mm; High...
Number of shutters-
Door weight, Hinged guard, maximal-
Storage and transport temperature, maximum-
Switching capacity, maximum-
StandardsIEC 61508, EN 60947-5-3, EN ...
Door weight, Sliding guard, maximal-
Ambient temperature, maximum-
Switching frequency, maximum-
Number of openers-
Coding level according to ISO 14119Low
Number of shutters-
Door weight, Hinged guard, maximal-
Storage and transport temperature, maximum-
Switching capacity, maximum-
StandardsIEC 60947-5-3
Door weight, Sliding guard, maximal-
Ambient temperature, maximum-
Switching frequency, maximum-
Number of openers-
Coding level according to ISO 14119Low
About the manufacturer
Applied Automation is an authorized Schmersal distributor, proudly offering a diverse range of innovative safety and automation solutions tailored to meet the rigorous demands of modern industries. Schmersal is a globally renowned manufacturer specializing in the development and production of high-quality safety systems designed to protect both personnel and machinery across various industrial sec...
Recently viewed products
Relevant products
FAQ
What is the price of BNS-B20-12Z-ST-R?
Purchase the BNS-B20-12Z-ST-R from Applied Automation at the price of $167.00. Order today.
Out if stock but available for backorder.
BNS-B20-12Z-ST-R Schmersal - Safety sensors; Magnetic safety sensors; Connector M12 x 1, 8-pole; Thermoplastic enclosure; Non-contact safety switch; Does not protrude into the door opening; 119,5 mm x 140 mm x 43,3 mm; Substitutes door-handle and safety switch, no further door fittin
