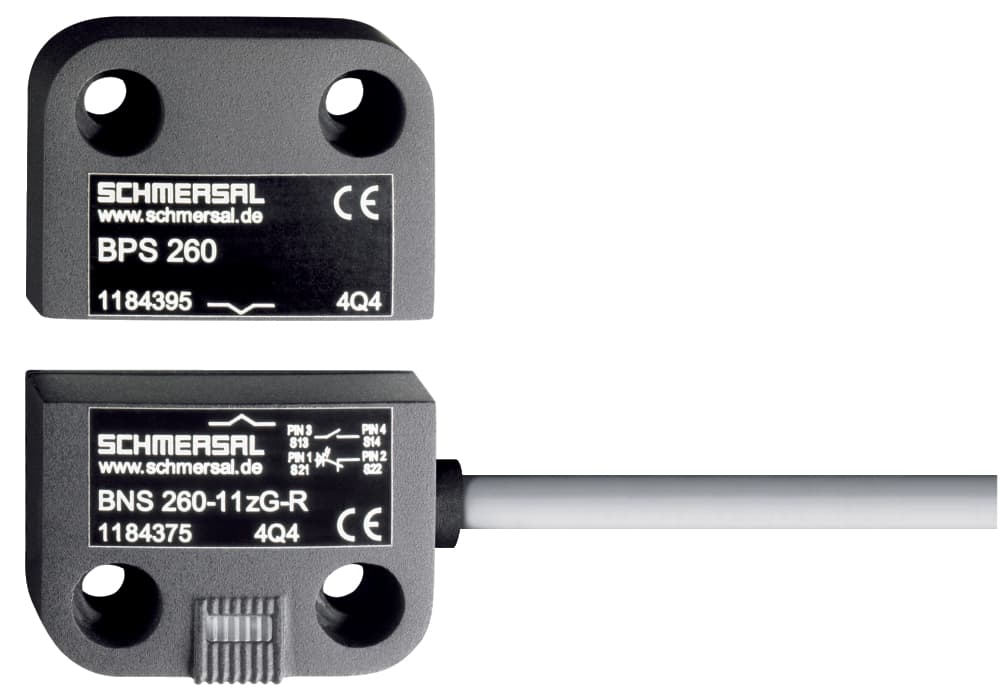

BNS 260-11/01ZG-R Schmersal Electronic Components

Product Details

• Standards
  IEC 60947-5-3, BG-GS-ET-14
• Number of safety contacts
  2
• Length of cable
  1 m
• Coding level according to ISO 14119
  Low
• Number of cable wires
  6
• Material of the Cable mantle
  PVC
• Ambient temperature, maximum
  +70 °C
• Switching capacity, maximum
  0.2 W
• Integral System Diagnostics, status
  Yes
• Door hinge
  Right
• Length of sensor
  13 mm
• Switching current, maximum
  0.01 A
• Active principle
  Magnetic drive
• Ensured switch distance OFF Sar
  15 mm
• Width of sensor
  26 mm
• Voltage type
  DC (direct current)
• Number of shutters
  1
• Ensured switch distance ON Sao
  5 mm
• Degree of protection
  IP67
• Storage and transport temperature, maximum
  +70 °C
Enclosure material
Glass-fibre, reinforced thermoplastic
Direction of motion
Head-on to the active surface
Height of sensor
36 mm
Restistance to shock
30 g / 11 ms
Number of openers
2
Gross weight
60 g
Terminal Connector
Cable
Wire cross-section
0.25 mm2
Resistance to vibrations to EN 60068-2-6
10 … 55 Hz, amplitude 1 mm
Storage and transport temperature, minimum
-25 °C
Switching frequency, maximum
5 Hz
Installation conditions (mechanical)
quasi-flush
Actuating element
Magnet
Notice (Switch distance Sn)
Axial misalignment, a horizontal and vertical misalignment of the safety sensor and the actuator are tolerated. The possible misalignment depends on the distance of the active surfaces of the sensor and the actuator. The sensor remains active within the t
Ambient temperature, minimum
-25 °C
Switching voltage, maximum
24 VDC
