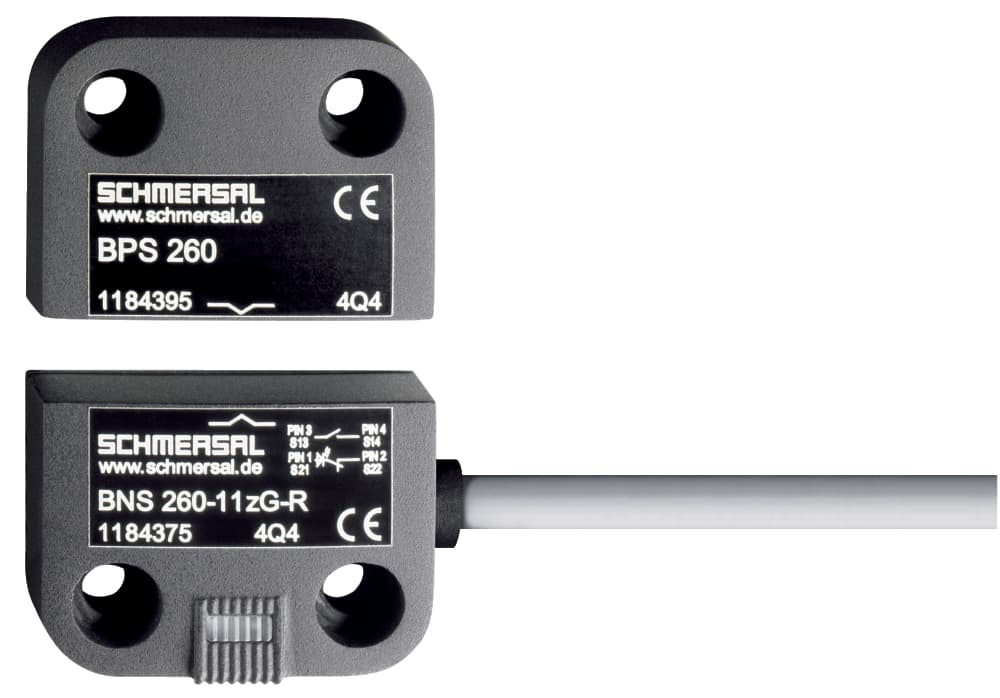

BNS 260-02Z-R 10,0M Schmersal Electronic Components

Product Details

• Switching frequency, maximum
  5 Hz
• Switching capacity, maximum
  10 VA
• Switching current, maximum
  0.4 A
• Restistance to shock
  30 g / 11 ms
• Resistance to vibrations to EN 60068-2-6
  10 … 55 Hz, amplitude 1 mm
• Storage and transport temperature, maximum
  +70 °C
• Ambient temperature, maximum
  +70 °C
• Ambient temperature, minimum
  -25 °C
• Storage and transport temperature, minimum
  -25 °C
• Degree of protection
  IP67
• Height of sensor
  36 mm
• Width of sensor
  26 mm
• Length of sensor
  13 mm
• Material of the Cable mantle
  PVC
• Length of cable
  10 m
• Wire cross-section
  0.25 mm2
• Direction of motion
  Head-on to the active surface
• Terminal Connector
  Cable
• Ensured switch distance ON Sao
  5 mm
• Notice (Switch distance Sn)
  Axial misalignment, a horizontal and vertical misalignment of the safety sensor and the actuator are tolerated. The possible misalignment depends on the distance of the active surfaces of the sensor and the actuator. The sensor remains active within the t
Ensured switch distance OFF Sar
15 mm
Actuating element
Magnet
Number of cable wires
4
Standards
IEC 60947-5-3, BG-GS-ET-14
Installation conditions (mechanical)
quasi-flush
Number of openers
0
Number of shutters
2
Gross weight
400 g
Enclosure material
Glass-fibre, reinforced thermoplastic
Number of safety contacts
2
Coding level according to ISO 14119
Low
Active principle
Magnetic drive
