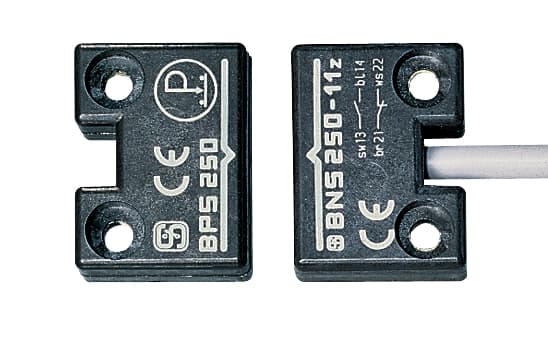

BNS 250-12Z Schmersal Electronic Components

Product Details

• Restistance to shock
  30 g / 11 ms
• Versions
  Miscellaneous, Reed contacts
• Switching capacity, maximum
  1 W
• Switching frequency, maximum
  5 Hz
• Switching current, maximum
  0.1 A
• Switching voltage, maximum
  24 VDC
• Ambient temperature, maximum
  +70 °C
• Voltage type
  DC (direct current)
• Resistance to vibrations to EN 60068-2-6
  10 … 150 Hz, amplitude 0.35 mm
• Storage and transport temperature, minimum
  -25 °C
• Storage and transport temperature, maximum
  +70 °C
• Ambient temperature, minimum
  -25 °C
• Material of the Cable mantle
  PVC
• Height of sensor
  25 mm
• Degree of protection
  IP67
• Length of sensor
  13 mm
• Width of sensor
  33 mm
• Length of cable
  1 m
• Wire cross-section
  0.25 mm2
• Terminal Connector
  Cable
Ensured switch distance OFF Sar
14 mm
Actuating element
Magnet
Ensured switch distance ON Sao
4 mm
Direction of motion
Head-on to the active surface
Active area
front side
Number of cable wires
4
Active principle
Magnetic drive
Standards
IEC 60947-5-3, BG-GS-ET-14
Coding level according to ISO 14119
Low
Installation conditions (mechanical)
not flush
Enclosure material
Glass-fibre, reinforced thermoplastic
Prerequisite evaluation unit
Yes
Gross weight
60.2 g
Number of shutters
1
Number of openers
2
