BNS 250-12Z 5,0M Schmersal Electronic Components
Part#:BNS 250-12Z 5,0M
Alt. Part#:101126604
Manufacturer:Schmersal
Category:Electronic Components
Product Lifecycle:Active
Product description

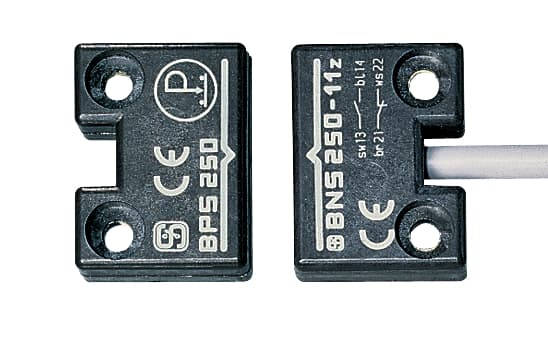

Safety sensors; Magnetic safety sensors; Thermoplastic enclosure; Small body; Concealed mounting possible; 33 mm x 25 mm x 13 mm; Long life; no mechanical wear; Insensitive to transverse misalignment; Insensitive to soiling
Product Details
- Gross weight 185 g
- Active principle Magnetic drive
- Number of shutters 1
- Ensured switch distance ON Sao 4 mm
- Height of sensor 25 mm
- Length of sensor 13 mm
- Wire cross-section 23 AWG
- Switching current, maximum 0.1 A
- Versions Miscellaneous, Reed contacts
- Number of openers 2
- Coding level according to ISO 14119 Low
- Actuating element Magnet
- Direction of motion Head-on to the active surface
- Ambient temperature, minimum -25 °C
- Width of sensor 33 mm
- Switching frequency, maximum 5 Hz
- Switching capacity, maximum 1 W
- Degree of protection IP67
- Installation conditions (mechanical) not flush
- Enclosure material Glass-fibre, reinforced thermoplastic
- Number of cable wires 4
- Length of cable 5 m
- Material of the Cable mantle PVC
- Storage and transport temperature, maximum +70 °C
- Restistance to shock 30 g / 11 ms
- Prerequisite evaluation unit Yes
- Ensured switch distance OFF Sar 14 mm
- Storage and transport temperature, minimum -25 °C
- Resistance to vibrations to EN 60068-2-6 10 … 150 Hz, amplitude 0.35 mm
- Ambient temperature, maximum +70 °C
- Terminal Connector Cable
- Standards IEC 60947-5-3, BG-GS-ET-14
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
