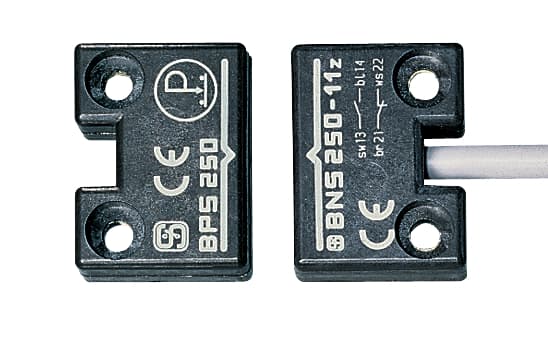

BNS 250-11Z Schmersal Electronic Components

Product Details

• Active principle
  Magnetic drive
• Number of shutters
  1
• Number of cable wires
  4
• Terminal Connector
  Cable
• Width of sensor
  33 mm
• Wire cross-section
  0.25 mm2
• Degree of protection
  IP67
• Resistance to vibrations to EN 60068-2-6
  10 … 150 Hz, amplitude 0.35 mm
• Switching voltage, maximum
  24 VDC
• Coding level according to ISO 14119
  Low
• Number of openers
  1
• Ensured switch distance ON Sao
  4 mm
• Ensured switch distance OFF Sar
  14 mm
• Ambient temperature, maximum
  +70 °C
• Storage and transport temperature, minimum
  -25 °C
• Switching current, maximum
  0.1 A
• Switching capacity, maximum
  1 W
• Enclosure material
  Glass-fibre, reinforced thermoplastic
• Gross weight
  60.2 g
• Direction of motion
  Head-on to the active surface
Length of cable
1 m
Material of the Cable mantle
PVC
Height of sensor
25 mm
Restistance to shock
30 g / 11 ms
Switching frequency, maximum
5 Hz
Installation conditions (mechanical)
not flush
Active area
front side
Length of sensor
13 mm
Storage and transport temperature, maximum
+70 °C
Versions
Miscellaneous, Reed contacts
Standards
IEC 60947-5-3, BG-GS-ET-14
Prerequisite evaluation unit
Yes
Actuating element
Magnet
Ambient temperature, minimum
-25 °C
Voltage type
DC (direct current)
