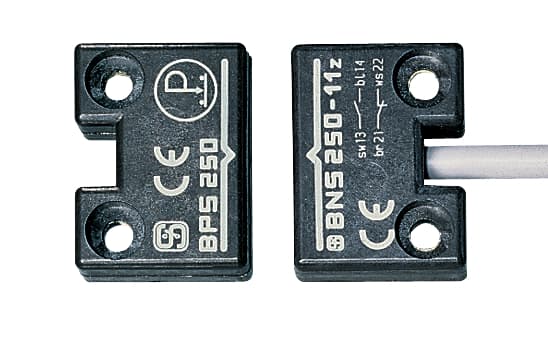

BNS 250-11Z 10,0M Schmersal Electronic Components

Product Details

• Prerequisite evaluation unit
  Yes
• Length of cable
  10 m
• Length of sensor
  13 mm
• Resistance to vibrations to EN 60068-2-6
  10 … 150 Hz, amplitude 0.35 mm
• Standards
  IEC 60947-5-3, BG-GS-ET-14
• Direction of motion
  Head-on to the active surface
• Material of the Cable mantle
  PVC
• Restistance to shock
  30 g / 11 ms
• Installation conditions (mechanical)
  not flush
• Actuating element
  Magnet
• Ambient temperature, maximum
  +70 °C
• Switching current, maximum
  0.1 A
• Number of shutters
  1
• Coding level according to ISO 14119
  Low
• Number of cable wires
  4
• Ensured switch distance OFF Sar
  14 mm
• Ambient temperature, minimum
  -25 °C
• Width of sensor
  33 mm
• Versions
  Miscellaneous, Reed contacts
• Gross weight
  365 g
Terminal Connector
Cable
Height of sensor
25 mm
Switching frequency, maximum
5 Hz
Enclosure material
Glass-fibre, reinforced thermoplastic
Number of openers
1
Wire cross-section
23 AWG
Degree of protection
IP67
Switching capacity, maximum
1 W
Active principle
Magnetic drive
Ensured switch distance ON Sao
4 mm
Storage and transport temperature, minimum
-25 °C
Storage and transport temperature, maximum
+70 °C
