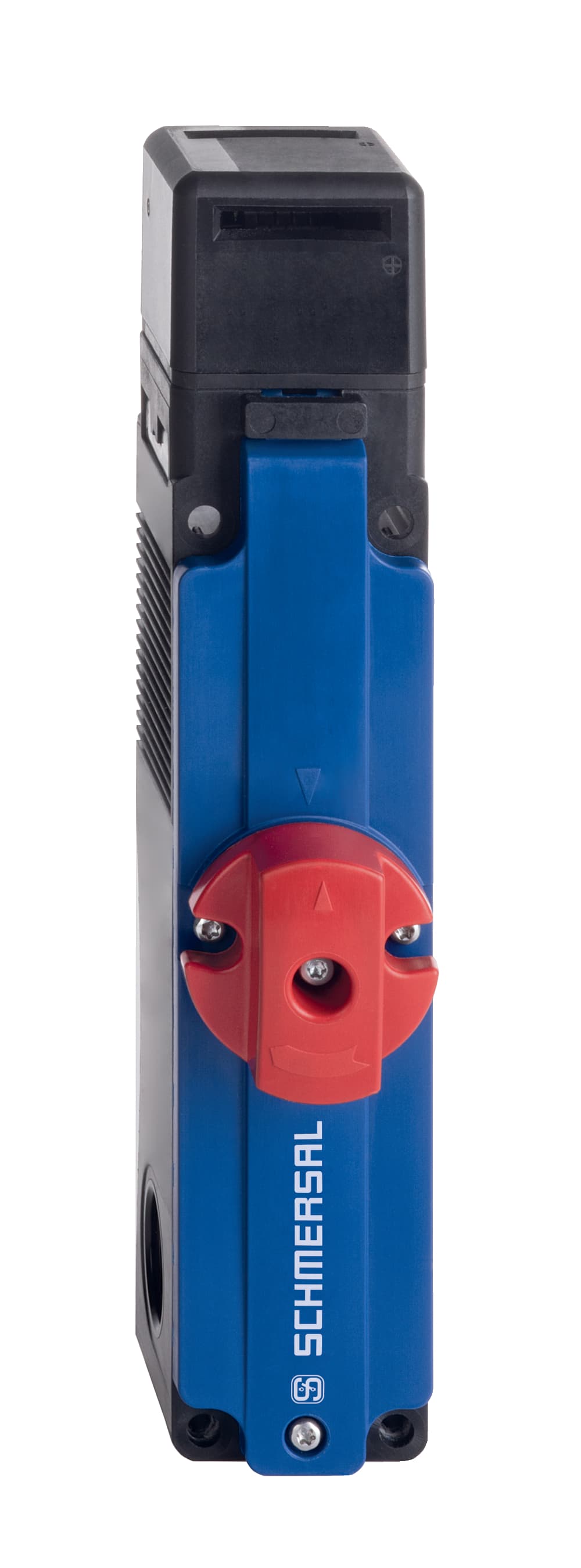

AZM150SK-11/02RT-024 Schmersal Safety Switches

Product Details

• Rated control voltage
  24 VDC
• Gross weight
  601.8 g
• Clamping force, maximum Fmax
  1,950 N
• Terminal Connector
  Screw terminals
• Ambient temperature, maximum
  +55 °C
• Switching element
  NC contact, NO contact
• Switching principle
  Creep circuit element
• Switching frequency
  1,000 /h
• Enclosure material
  Thermoplastic, Polyamide PA 6 GF
• Emergency exit
  Yes
• positive break travel
  10 mm
• Active principle
  electromechanical
• Material of the contacts, electrical
  Silver
• Standards
  EN 60947-5-1, EN ISO 14119
• Number of safety contacts
  3
• Clamping force in accordance with ISO14119 Fzh
  1,500 N
• Cable section, minimum
  1 x 0.25 mm²
• Degree of protection
  IP65 to EN 60529, IP67 to EN 60529
• Number of actuating directions
  2
• Latching force, approx.
  50 N
Mounting
Screws
Rated impulse withstand voltage Uimp
4 kV
Electrical power consumption, maximum
8.5 W
Power to unlock
Yes
Mechanical life, minimum
1,000,000 Operations
Positive break force, minimum
40 N
Width of sensor
40 mm
Length of sensor
64 mm
Storage and transport temperature, minimum
-40 °C
Storage and transport temperature, maximum
+85 °C
Required rated short-circuit current to EN 60947-5-1
400 A
Coding level according to ISO 14119
Low
Number of auxiliary contacts
1
Actuating speed, maximum
0.2 m/s
Cable entry
3 x M20 x 1,5
Cable section, maximum
1 x 2.5 mm²
Height of sensor
204 mm
Rated insulation voltage Ui
300 V
Ambient temperature, minimum
-25 °C
Thermal test current
5 A
Utilisation category DC-13
2.5 A
Utilisation category AC-15
230 VAC
