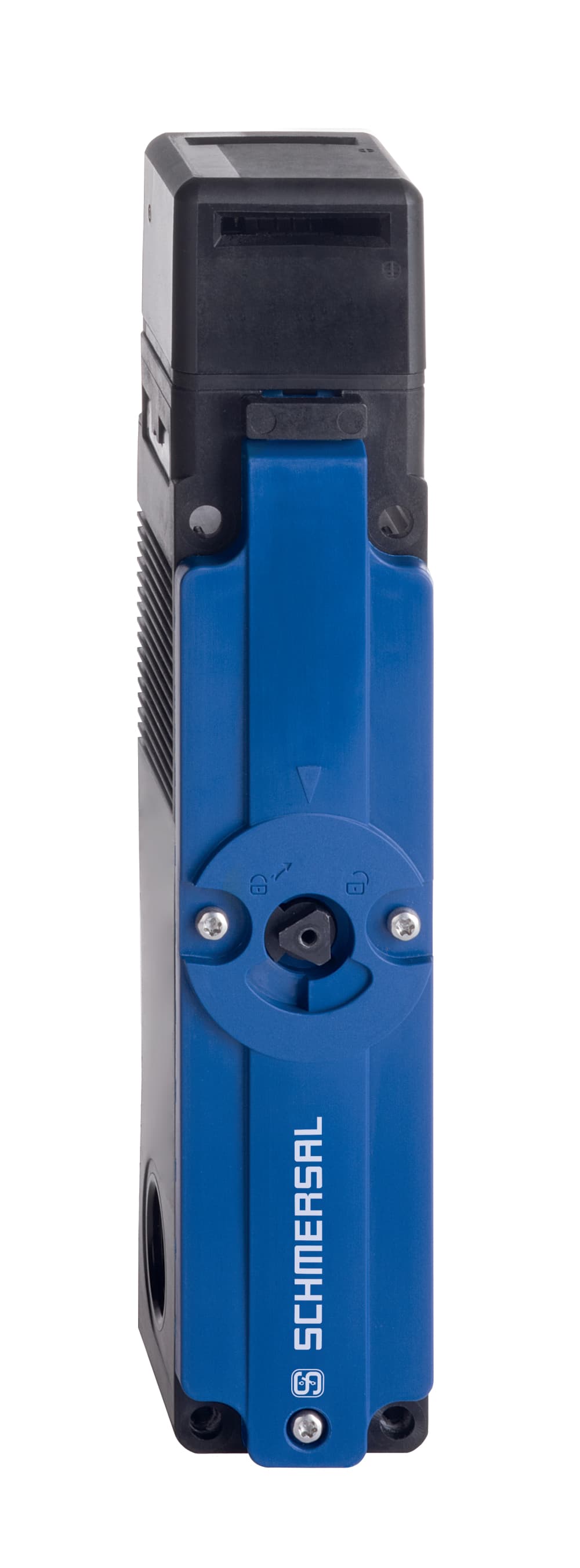

AZM150SK-02/11RIA-024-B6R Schmersal Safety Switches
Part#:AZM150SK-02/11RIA-024-B6R
Alt. Part#:153032232
Manufacturer:Schmersal
Category:Safety Switches
Product Lifecycle:Active
Product description
AZM150SK-02/11RIA-024-B6R Schmersal - Solenoid interlocks; Thermoplastic enclosure; Eight approach levels thanks to rotating head; Individually coded version with coding level "High" according to ISO 14119; Simple fitting, especially on 40 mm profiles
Product Details
- Material of the contacts, electrical Silver
- Clamping force in accordance with ISO14119 Fzh 1,500 N
- Terminal Connector Screw terminals
- Ambient temperature, minimum -25 °C
- Rated impulse withstand voltage Uimp 4 kV
- Active principle electromechanical
- Number of safety contacts 3
- Height of sensor 204 mm
- Utilisation category AC-15 3 A
- Utilisation category DC-13 2.5 A
- Gross weight 629.1 g
- Positive break force, minimum 40 N
- Cable section, minimum 1 x 0.25 mm²
- Required rated short-circuit current to EN 60947-5-1 400 A
- Switching element NC contact, NO contact
- Switching principle Creep circuit element
- Mounting Screws
- Manual release Yes
- Latching force, approx. 50 N
- Ambient temperature, maximum +55 °C
- Power to lock Yes
- positive break travel 10 mm
- Width of sensor 40 mm
- Storage and transport temperature, maximum +85 °C
- Coding level according to ISO 14119 High
- Standards EN 60947-5-1, EN ISO 14119
- Actuating speed, maximum 0.2 m/s
- Length of sensor 48 mm
- Storage and transport temperature, minimum -40 °C
- Switching frequency 1,000 /h
- Enclosure material Thermoplastic, Polyamide PA 6 GF
- Mechanical life, minimum 1,000,000 Operations
- Cable entry 3 x M20 x 1,5
- Thermal test current 5 A
- Electrical power consumption, maximum 8.5 W
- Number of actuating directions 2
- Number of auxiliary contacts 1
- Cable section, maximum 1 x 2.5 mm²
- Degree of protection IP65 to EN 60529, IP67 to EN 60529
- Rated control voltage 24 VDC
- Clamping force, maximum Fmax 1,950 N
- Rated insulation voltage Ui 300 V
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of AZM150SK-02/11RIA-024-B6R on Applied Automation is $452.00. Order now.
AZM150SK-02/11RIA-024-B6R Related Documents
Manufacturer warranty
AZM150SK-02/11RIA-024-B6R Schmersal
$452.00
Your price can be lower.
Log in or Create account to check your discount
This part can be ordered
Select Qty:
$452.00
$452.00 each
This item may have a lead time. To ensure availability before placing your order, chat with our team—we'll confirm for you right away!
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
Your Safety, Our Priority.
Warranty
Manufacturer warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
About the manufacturer
Applied Automation is an authorized Schmersal distributor, proudly offering a diverse range of innovative safety and automation solutions tailored to meet the rigorous demands of modern industries. Schmersal is a globally renowned manufacturer specializing in the development and production of high-quality safety systems designed to protect both personnel and machinery across various industrial sec...
Recently viewed products
Relevant products
FAQ
What is the price of AZM150SK-02/11RIA-024-B6R?
Purchase the AZM150SK-02/11RIA-024-B6R from Applied Automation at the price of $452.00. Order today.
Out if stock but available for backorder.
AZM150SK-02/11RIA-024-B6R Schmersal - Solenoid interlocks; Thermoplastic enclosure; Eight approach levels thanks to rotating head; Individually coded version with coding level "High" according to ISO 14119; Simple fitting, especially on 40 mm profiles
