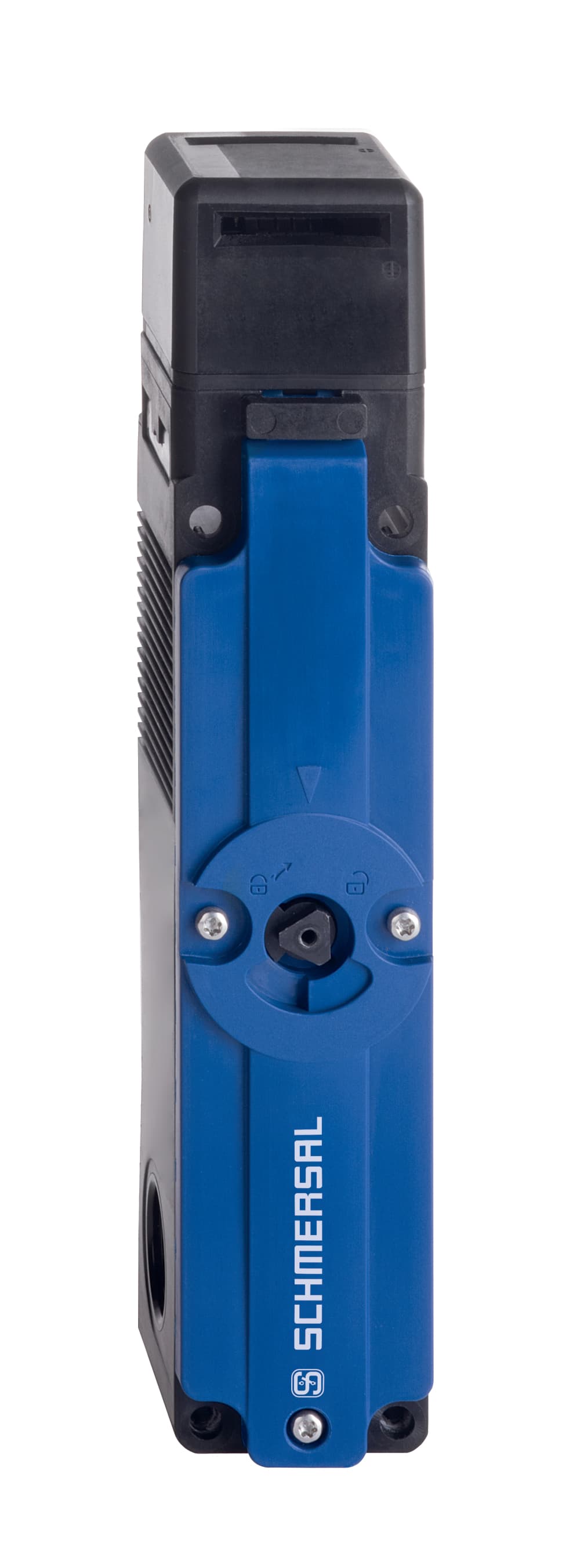

AZM150SK-02/11RA-024 Schmersal Safety Switches
Part#:AZM150SK-02/11RA-024
Alt. Part#:153032163
Manufacturer:Schmersal
Category:Safety Switches
Product Lifecycle:Active
Product description
AZM150SK-02/11RA-024 Schmersal - Solenoid interlocks; Thermoplastic enclosure; Eight approach levels thanks to rotating head; Individually coded version with coding level "High" according to ISO 14119; Simple fitting, especially on 40 mm profiles
Product Details
- Gross weight 592.8 g
- Clamping force, maximum Fmax 1,950 N
- Number of actuating directions 2
- Actuating speed, maximum 0.2 m/s
- Material of the contacts, electrical Silver
- Number of safety contacts 3
- positive break travel 10 mm
- Storage and transport temperature, minimum -40 °C
- Required rated short-circuit current to EN 60947-5-1 400 A
- Power to lock Yes
- Clamping force in accordance with ISO14119 Fzh 1,500 N
- Positive break force, minimum 40 N
- Rated insulation voltage Ui 300 V
- Active principle electromechanical
- Mechanical life, minimum 1,000,000 Operations
- Cable section, minimum 1 x 0.25 mm²
- Ambient temperature, minimum -25 °C
- Electrical power consumption, maximum 8.5 W
- Manual release Yes
- Latching force, approx. 50 N
- Width of sensor 40 mm
- Rated control voltage 24 VDC
- Switching principle Creep circuit element
- Standards EN 60947-5-1, EN ISO 14119
- Mounting Screws
- Degree of protection IP65 to EN 60529, IP67 to EN 60529
- Utilisation category DC-13 2.5 A
- Length of sensor 48 mm
- Cable entry 3 x M20 x 1,5
- Rated impulse withstand voltage Uimp 4 kV
- Switching element NC contact, NO contact
- Enclosure material Thermoplastic, Polyamide PA 6 GF
- Number of auxiliary contacts 1
- Cable section, maximum 1 x 2.5 mm²
- Ambient temperature, maximum +55 °C
- Storage and transport temperature, maximum +85 °C
- Utilisation category AC-15 3 A
- Coding level according to ISO 14119 Low
- Terminal Connector Screw terminals
- Height of sensor 204 mm
- Thermal test current 5 A
- Switching frequency 1,000 /h
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
