AZM150SK-02/02RN-024 Schmersal Safety Switches
Part#:AZM150SK-02/02RN-024
Alt. Part#:153032171
Manufacturer:Schmersal
Category:Safety Switches
Product Lifecycle:Active
Product description

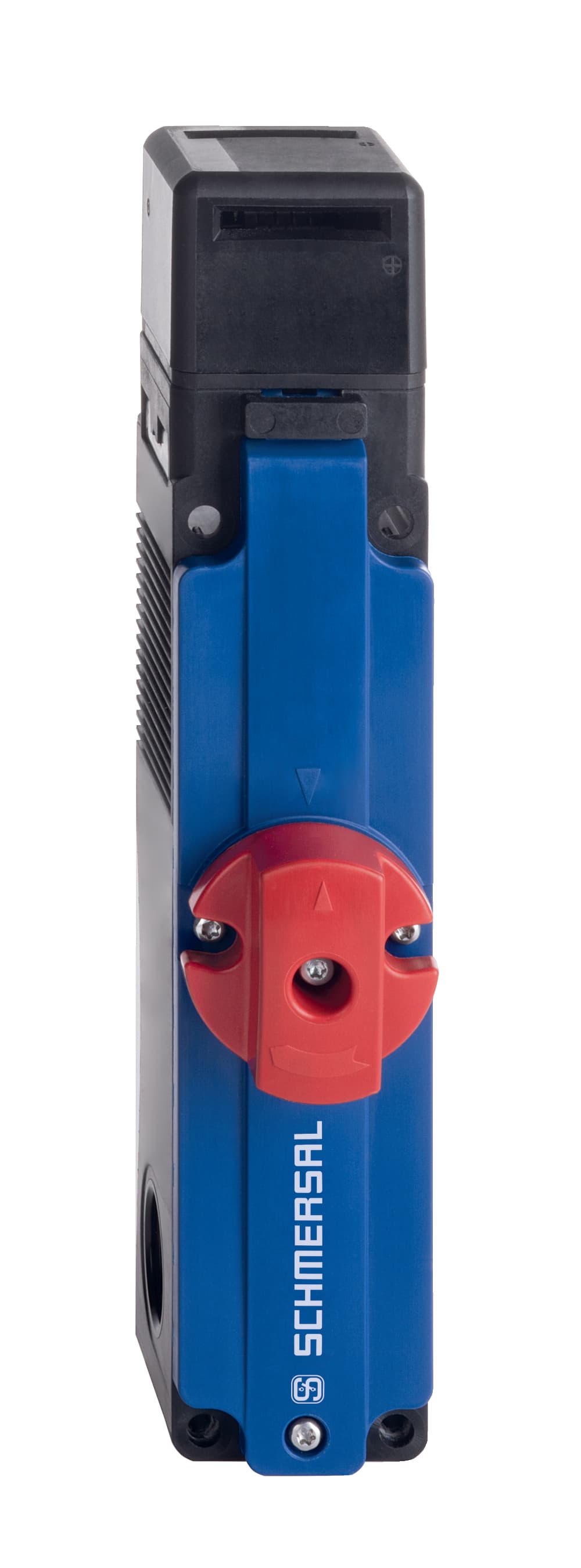

AZM150SK-02/02RN-024 Schmersal - Solenoid interlocks; Thermoplastic enclosure; Eight approach levels thanks to rotating head; Individually coded version with coding level "High" according to ISO 14119; Simple fitting, especially on 40 mm profiles
Product Details
- Mechanical life, minimum 1,000,000 Operations
- Active principle electromechanical
- Actuating speed, maximum 0.2 m/s
- Rated insulation voltage Ui 300 V
- Material of the contacts, electrical Silver
- Enclosure material Thermoplastic, Polyamide PA 6 GF
- Cable section, maximum 1 x 2.5 mm²
- Ambient temperature, maximum +55 °C
- Electrical power consumption, maximum 8.5 W
- Number of actuating directions 2
- Standards EN 60947-5-1, EN ISO 14119
- Terminal Connector Screw terminals
- Degree of protection IP65 to EN 60529, IP67 to EN 60529
- Utilisation category DC-13 2.5 A
- Power to unlock Yes
- positive break travel 10 mm
- Mounting Screws
- Storage and transport temperature, maximum +85 °C
- Gross weight 602.2 g
- Latching force, approx. 50 N
- Cable section, minimum 1 x 0.25 mm²
- Ambient temperature, minimum -25 °C
- Utilisation category AC-15 230 VAC
- Switching principle Creep circuit element
- Clamping force in accordance with ISO14119 Fzh 1,500 N
- Coding level according to ISO 14119 Low
- Cable entry 3 x M20 x 1,5
- Storage and transport temperature, minimum -40 °C
- Rated control voltage 24 VDC
- Switching frequency 1,000 /h
- Number of safety contacts 4
- Positive break force, minimum 40 N
- Width of sensor 40 mm
- Thermal test current 5 A
- Switching element Opener (NC)
- Emergency release Yes
- Length of sensor 64 mm
- Required rated short-circuit current to EN 60947-5-1 400 A
- Clamping force, maximum Fmax 1,950 N
- Height of sensor 204 mm
- Rated impulse withstand voltage Uimp 4 kV
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of AZM150SK-02/02RN-024 on Applied Automation is $405.00. Order now.
AZM150SK-02/02RN-024 Related Documents
Manufacturer warranty
AZM150SK-02/02RN-024 Schmersal
$405.00
Your price can be lower.
Log in or Create account to check your discount
This part can be ordered
Select Qty:
$405.00
$405.00 each
This item may have a lead time. To ensure availability before placing your order, chat with our team—we'll confirm for you right away!
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
Your Safety, Our Priority.
Warranty
Manufacturer warranty
Responsive Customer Support
Got Questions? We've Got Answers!
Need more details?
Feel free to chat with us
About the manufacturer
Applied Automation is an authorized Schmersal distributor, proudly offering a diverse range of innovative safety and automation solutions tailored to meet the rigorous demands of modern industries. Schmersal is a globally renowned manufacturer specializing in the development and production of high-quality safety systems designed to protect both personnel and machinery across various industrial sec...
Recently viewed products
Relevant products
FAQ
What is the price of AZM150SK-02/02RN-024?
Purchase the AZM150SK-02/02RN-024 from Applied Automation at the price of $405.00. Order today.
Out if stock but available for backorder.
AZM150SK-02/02RN-024 Schmersal - Solenoid interlocks; Thermoplastic enclosure; Eight approach levels thanks to rotating head; Individually coded version with coding level "High" according to ISO 14119; Simple fitting, especially on 40 mm profiles
