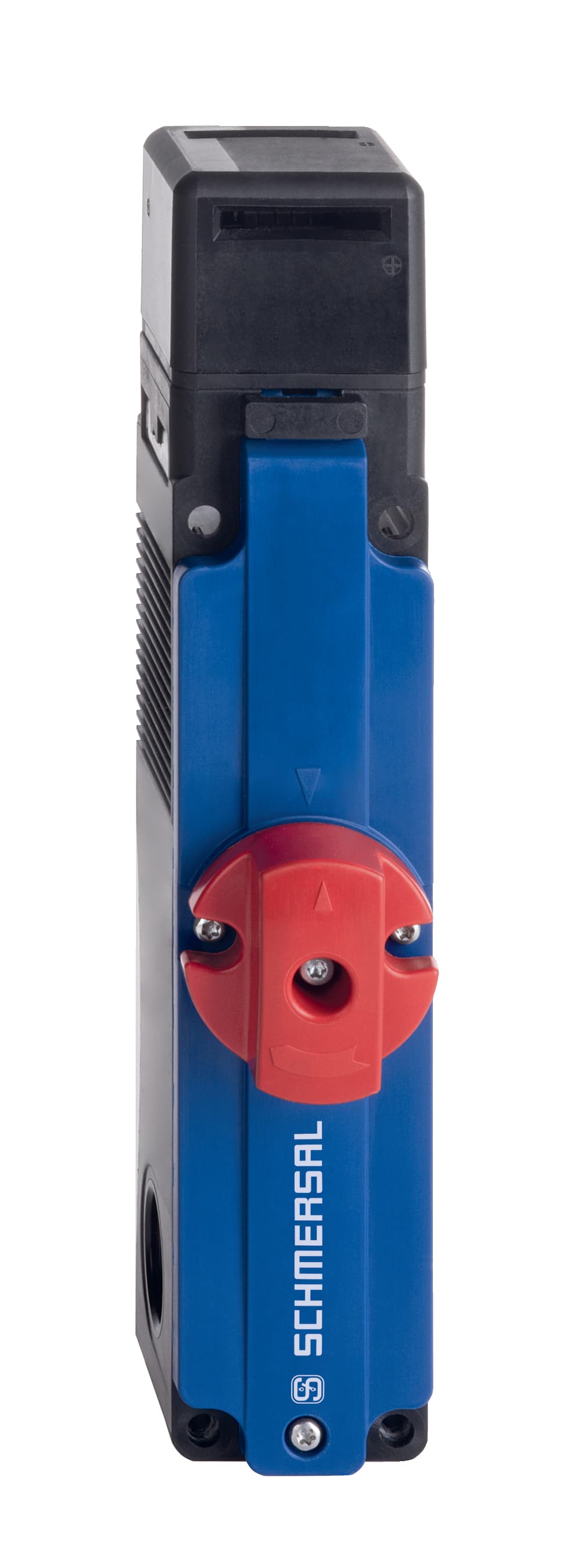

AZM150SK-02/02RIT-024-B6R Schmersal Safety Switches

Product Details

• Degree of protection
  IP65 to EN 60529, IP67 to EN 60529
• Active principle
  electromechanical
• Positive break force, minimum
  40 N
• Cable section, maximum
  1 x 2.5 mm²
• Rated insulation voltage Ui
  300 V
• Switching frequency
  1,000 /h
• Number of actuating directions
  2
• Number of safety contacts
  4
• Clamping force in accordance with ISO14119 Fzh
  1,500 N
• Width of sensor
  40 mm
• Length of sensor
  64 mm
• Storage and transport temperature, maximum
  +85 °C
• Ambient temperature, maximum
  +55 °C
• Switching element
  Opener (NC)
• Material of the contacts, electrical
  Silver
• Latching force, approx.
  50 N
• Enclosure material
  Thermoplastic, Polyamide PA 6 GF
• positive break travel
  10 mm
• Ambient temperature, minimum
  -25 °C
• Rated control voltage
  24 VDC
Gross weight
632.7 g
Clamping force, maximum Fmax
1,950 N
Utilisation category AC-15
3 A
Switching principle
Creep circuit element
Standards
EN 60947-5-1, EN ISO 14119
Mounting
Screws
Mechanical life, minimum
1,000,000 Operations
Cable entry
3 x M20 x 1,5
Required rated short-circuit current to EN 60947-5-1
400 A
Power to unlock
Yes
Actuating speed, maximum
0.2 m/s
Height of sensor
204 mm
Thermal test current
5 A
Electrical power consumption, maximum
8.5 W
Cable section, minimum
1 x 0.25 mm²
Storage and transport temperature, minimum
-40 °C
Utilisation category DC-13
2.5 A
Coding level according to ISO 14119
High
Terminal Connector
Screw terminals
Rated impulse withstand voltage Uimp
4 kV
