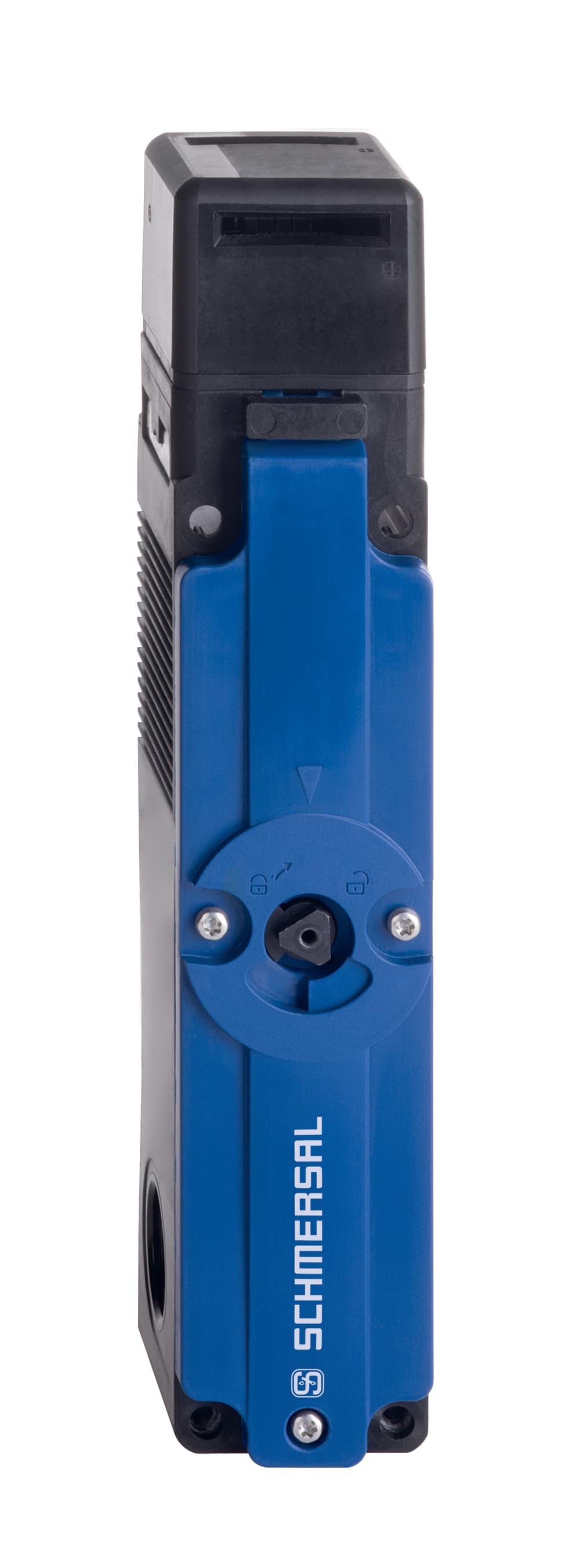

AZM150SK-02/02RIA-230-B6L Schmersal Safety Switches

Product Details

• Power to lock
  Yes
• Gross weight
  612.4 g
• Number of safety contacts
  4
• Rated impulse withstand voltage Uimp
  4 kV
• Manual release
  Yes
• Enclosure material
  Thermoplastic, Polyamide PA 6 GF
• Actuating speed, maximum
  0.2 m/s
• Electrical power consumption, maximum
  8.5 W
• Number of actuating directions
  2
• Mounting
  Screws
• Height of sensor
  204 mm
• Rated insulation voltage Ui
  300 V
• Thermal test current
  5 A
• Clamping force, maximum Fmax
  1,950 N
• Cable entry
  3 x M20 x 1,5
• Storage and transport temperature, minimum
  -40 °C
• Switching principle
  Creep circuit element
• positive break travel
  10 mm
• Length of sensor
  48 mm
• Ambient temperature, maximum
  +55 °C
Switching element
Opener (NC)
Material of the contacts, electrical
Silver
Mechanical life, minimum
1,000,000 Operations
Terminal Connector
Screw terminals
Latching force, approx.
50 N
Storage and transport temperature, maximum
+85 °C
Switching frequency
1,000 /h
Active principle
electromechanical
Ambient temperature, minimum
-25 °C
Coding level according to ISO 14119
High
Width of sensor
40 mm
Utilisation category DC-13
2.5 A
Rated control voltage
230 VAC
Standards
EN 60947-5-1, EN ISO 14119
Positive break force, minimum
40 N
Degree of protection
IP65 to EN 60529, IP67 to EN 60529
Required rated short-circuit current to EN 60947-5-1
400 A
Clamping force in accordance with ISO14119 Fzh
1,500 N
Cable section, maximum
1 x 2.5 mm²
Cable section, minimum
1 x 0.25 mm²
Utilisation category AC-15
3 A
