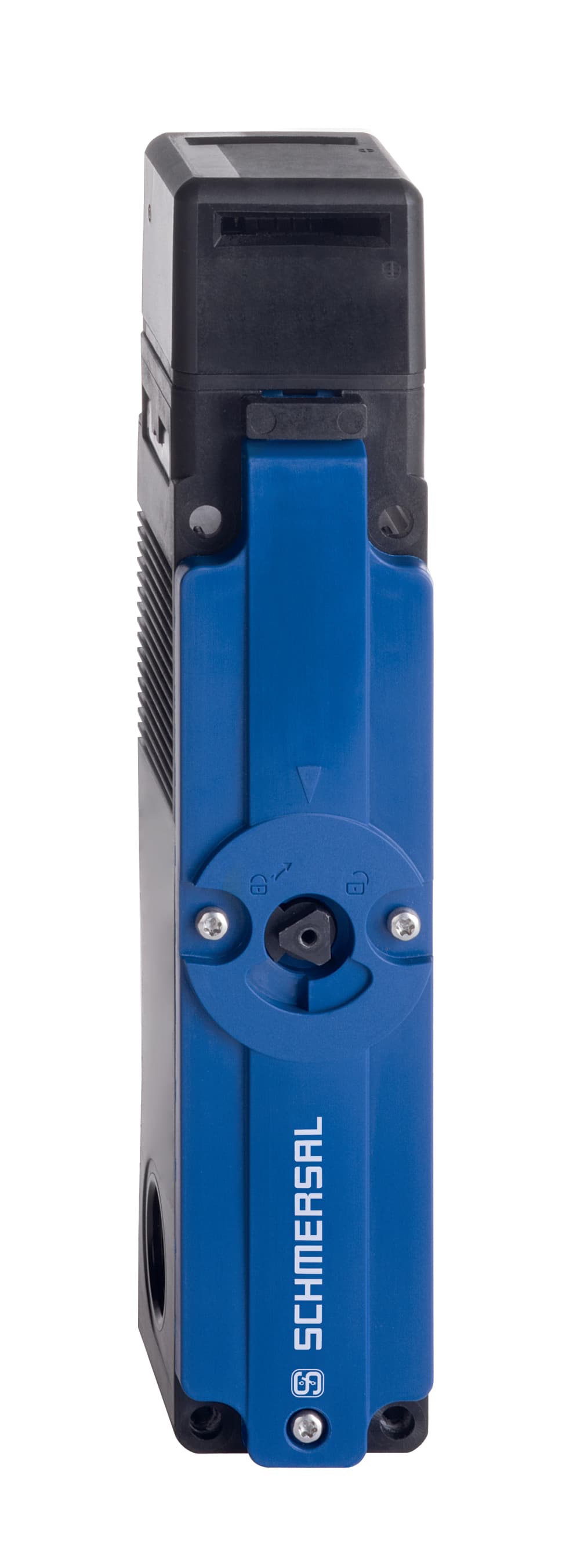

AZM150SK-02/02RIA-024-B6R Schmersal Safety Switches

Product Details

• Active principle
  electromechanical
• Terminal Connector
  Screw terminals
• Degree of protection
  IP65 to EN 60529, IP67 to EN 60529
• Rated control voltage
  24 VDC
• Switching principle
  Creep circuit element
• Coding level according to ISO 14119
  High
• Material of the contacts, electrical
  Silver
• Mechanical life, minimum
  1,000,000 Operations
• Latching force, approx.
  50 N
• Cable section, maximum
  1 x 2.5 mm²
• Height of sensor
  204 mm
• Rated insulation voltage Ui
  300 V
• Required rated short-circuit current to EN 60947-5-1
  400 A
• Electrical power consumption, maximum
  8.5 W
• Gross weight
  627 g
• Standards
  EN 60947-5-1, EN ISO 14119
• Clamping force, maximum Fmax
  1,950 N
• Positive break force, minimum
  40 N
• Cable section, minimum
  1 x 0.25 mm²
• Length of sensor
  48 mm
Storage and transport temperature, minimum
-40 °C
Utilisation category AC-15
230 VAC
Enclosure material
Thermoplastic, Polyamide PA 6 GF
Number of actuating directions
2
Actuating speed, maximum
0.2 m/s
positive break travel
10 mm
Width of sensor
40 mm
Rated impulse withstand voltage Uimp
4 kV
Thermal test current
5 A
Ambient temperature, maximum
+55 °C
Utilisation category DC-13
24 VDC
Power to lock
Yes
Clamping force in accordance with ISO14119 Fzh
1,500 N
Cable entry
3 x M20 x 1,5
Storage and transport temperature, maximum
+85 °C
Switching frequency
1,000 /h
Manual release
Yes
Number of safety contacts
4
Mounting
Screws
Ambient temperature, minimum
-25 °C
Switching element
Opener (NC)
