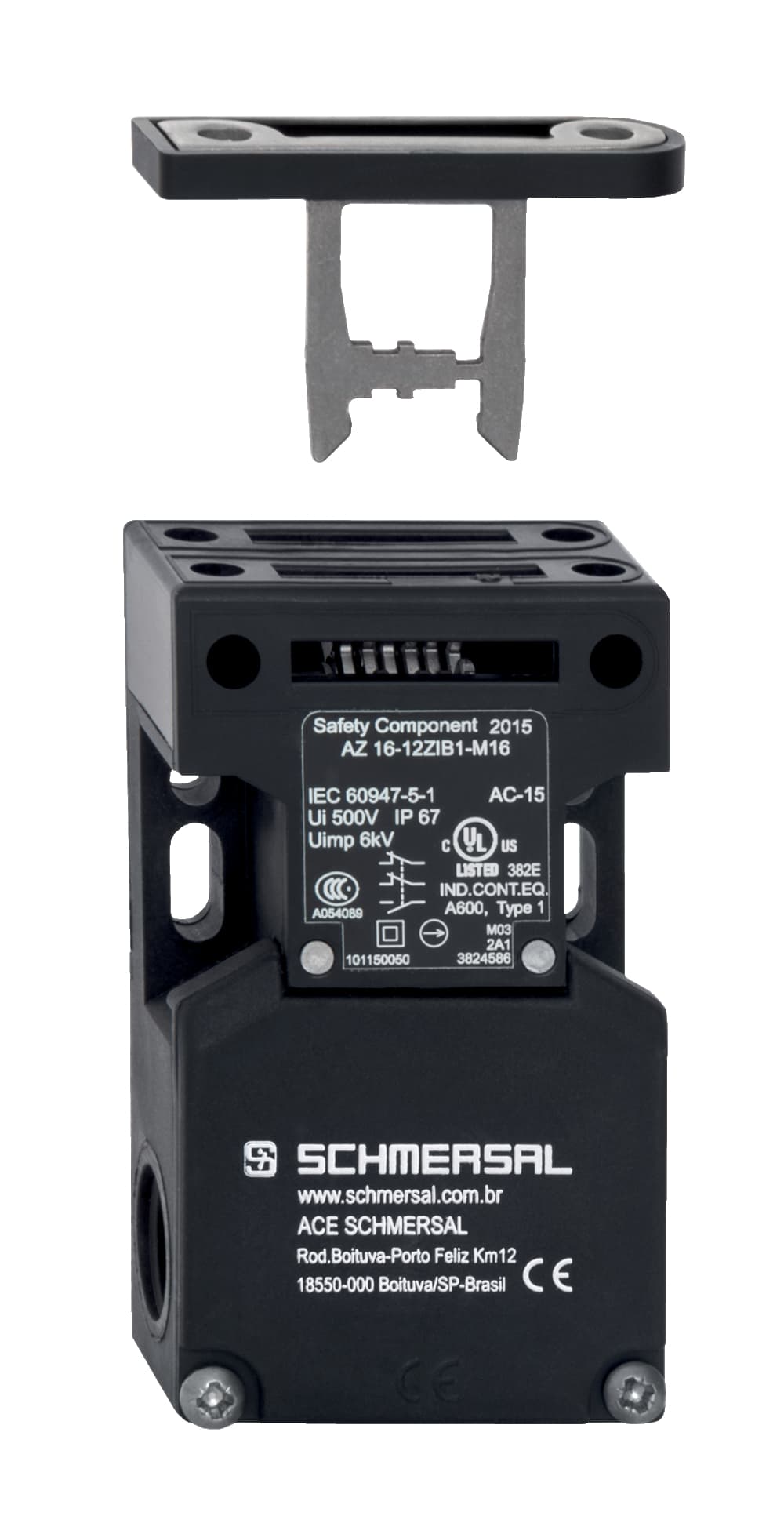

AZ 16-12ZIB1-M20-2177 Schmersal Safety Switches
Part#:AZ 16-12ZIB1-M20-2177
Alt. Part#:161150636
Manufacturer:Schmersal
Category:Safety Switches
Product Lifecycle:Active
Product description
Safety switch with separate actuator; AZ 16ZI; Thermoplastic enclosure; Individual coding; Coding level "High" according to ISO 14119; 52 mm x 90 mm x 30 mm; Long life; Double-insulated; Large wiring compartment; High level of contact reliability with low
Product Details
- Enclosure material Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Latching force 30 N
- Cable section, minimum 0.75 mm²
- Ambient temperature, maximum +80 °C
- Current, Utilisation category DC13 4 A
- Gross weight 170 g
- Mechanical life, minimum 1,000,000 Operations
- Height of sensor 90 mm
- Rated impulse withstand voltage Uimp 6 kV
- Number of safety contacts 2
- positive break travel 8 mm
- Width of sensor 52 mm
- Switching principle Creep circuit element
- Material of the contacts, electrical Silver
- Actuator straight, rigid
- Note (Cable section) All indications about the cable section are including the conductor ferrules.
- Thermal test current 10 A
- Actuating radius, minimum 250 mm
- Material of the actuator Stainless steel
- Cable section, maximum 2.5 mm²
- Rated insulation voltage Ui 500 V
- Current, Utilisation category AC-15 4 A
- Coding level according to ISO 14119 High
- Terminal Connector Screw terminals
- Ambient temperature, minimum -30 °C
- Voltage, Utilisation category AC15 230 VAC
- Ejection force Yes
- Positive break force, minimum 20 N
- Length of sensor 30 mm
- Voltage, Utilisation category DC13 24 VDC
- Number of auxiliary contacts 1
- Actuating speed, maximum 2 m/s
- Degree of protection IP67 to EN 60529
- Switching element NO contact, NC contact
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
