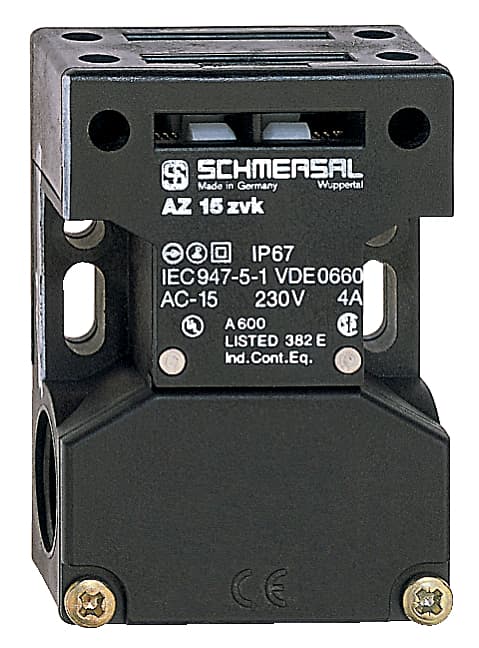

AZ 15 ZVK-M20 Schmersal Safety Switches
Part#:AZ 15 ZVK-M20
Alt. Part#:101157375
Manufacturer:Schmersal
Category:Safety Switches
Product Lifecycle:Active
Product description
Safety switch with separate actuator; 3 cable entries M 20 x 1.5; Thermoplastic enclosure; Double-insulated; Long life; 52 mm x 75 mm x 30 mm; Universal coding; Large wiring compartment; High level of contact reliability with low voltages and currents; Sl
Product Details
- Positive break force, minimum 10 N
- Enclosure material Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Ambient temperature, minimum -30 °C
- Voltage, Utilisation category AC15 230 VAC
- Mechanical life, minimum 1,000,000 Operations
- Terminal Connector Screw connection
- Rated insulation voltage Ui 500 V
- Actuating speed, maximum 2 m/s
- Length of sensor 30 mm
- Switching principle Creep circuit element
- Current, Utilisation category DC13 4 A
- positive break travel 8 mm
- Ejection force Yes
- Note (Cable section) All indications about the cable section are including the conductor ferrules.
- Current, Utilisation category AC-15 4 A
- Gross weight 100 g
- Cable section, minimum 0.25 mm²
- Degree of protection IP67 to EN 60529
- Thermal test current 10 A
- Material of the contacts, electrical Silver
- Width of sensor 52 mm
- Switching element Opener (NC)
- Suitable for elevators Yes
- Cable section, maximum 2.5 mm²
- Ambient temperature, maximum +80 °C
- Voltage, Utilisation category DC13 24 VDC
- Number of safety contacts 1
- Height of sensor 75 mm
- Rated impulse withstand voltage Uimp 6 kV
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
